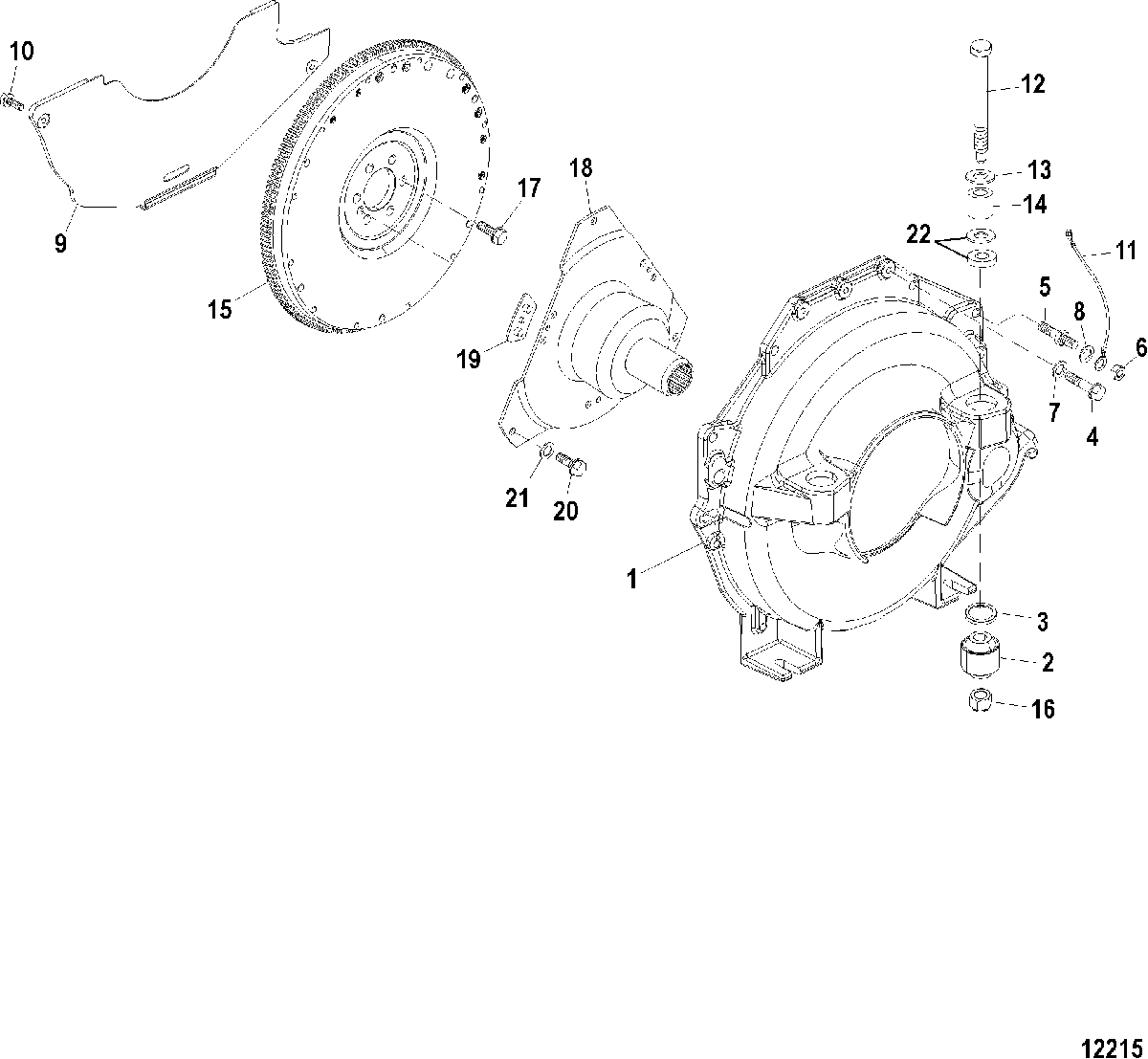

Flywheel Housing для Mercruiser - 3.0L MPI EC 1A072812 & Up

  • №
    Артикул
    Название
  • 1
    865657A03 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    8M0103028 MOUNT KIT, Rubber
    MOUNT KIT, Rubber
  • 3
    23-99322 SPACER
    SPACER
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SN# 1A348956 & Below
    SCREW, (.375-16 x 1.250)
    SN# 1A348956 & Below
  • 4
    10-68101 SCREW, (.375-16 x 1.375)
    SN# 1A348957 & Up
    SCREW, (.375-16 x 1.375)
    SN# 1A348957 & Up
  • 4
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 4
    10-358701 SCREW, (.375-16 x 2.00)
    SCREW, (.375-16 x 2.00)
  • 5
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 6
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 7
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 8
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 9
    807260A2 COVER KIT, Flywheel
    COVER KIT, Flywheel
  • NS
    11-807296 NUT, (.250-20)
    NUT, (.250-20)
  • 10
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 11
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
  • 12
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 13
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 14
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 15
    200-8M0135884 FLYWHEEL, (14 Inch)
    FLYWHEEL, (14 Inch)
  • 16
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 17
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 18
    18643A5 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 19
    18644 BUMPER, Rubber
    BUMPER, Rubber
  • 20
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 21
    12-13510 WASHER
    WASHER
  • 22
    12-892619A01 SHIM KIT
    SHIM KIT
