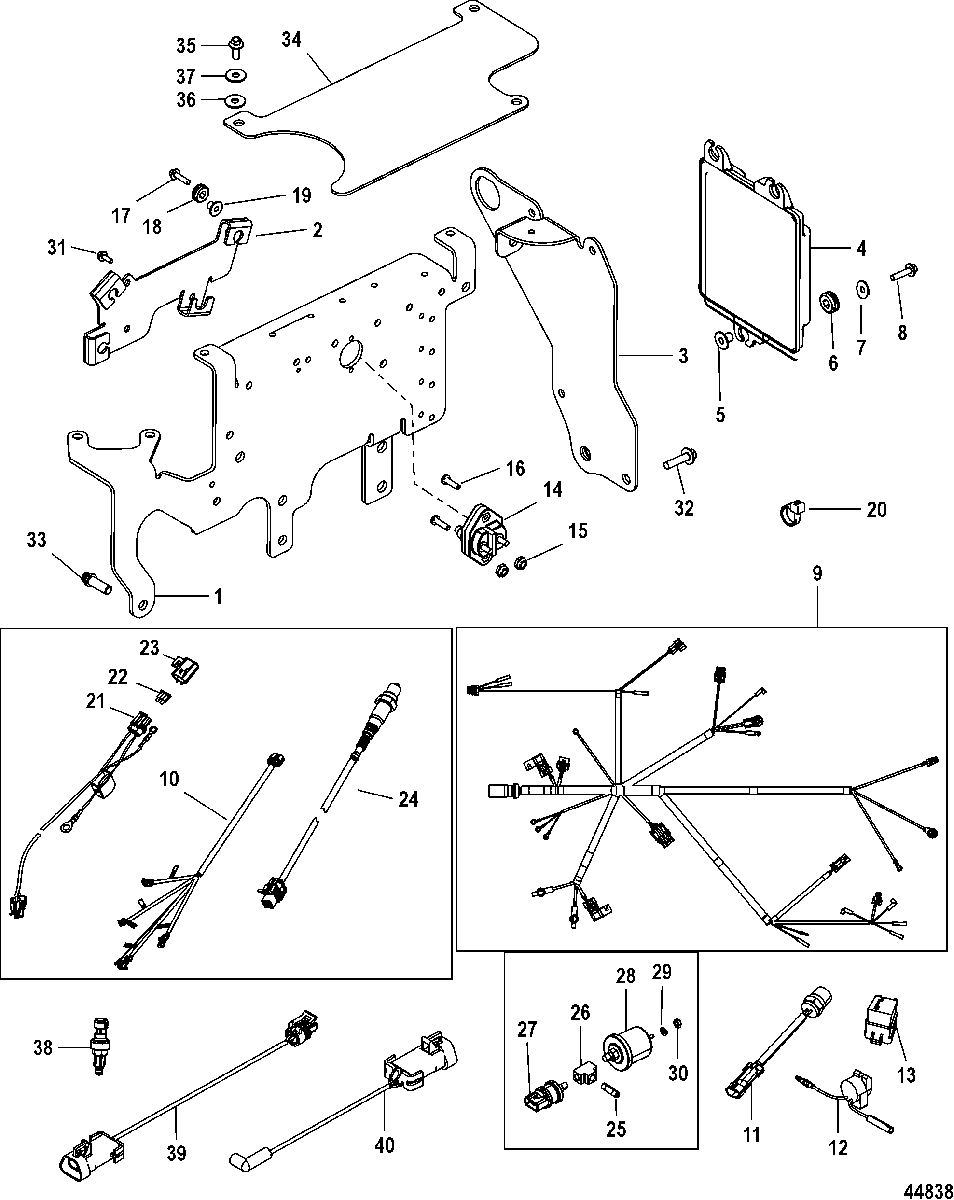

Electrical Components для Mercruiser - 3.0L MPI EC 1A072812 & Up

  • №
    Артикул
    Название
  • 1
    879288T13 BRACKET, Shift Plate
    BRACKET, Shift Plate
  • 2
    879288T15 BRACKET, Shift - Isolator
    BRACKET, Shift - Isolator
  • 3
    879288T16 BRACKET, ECM
    BRACKET, ECM
  • 4
    8M0049841 PCM, Propulsion Control Module, Fresh Water Cooling
    SN# 1A648622 & Below
    PCM, Propulsion Control Module, Fresh Water Cooling
    SN# 1A648622 & Below
  • 4
    78-8M0059346 PCM, Propulsion Control Module, Fresh Water Cooling
    SN# 1A648623 & Up
    PCM, Propulsion Control Module, Fresh Water Cooling
    SN# 1A648623 & Up
  • 4
    8M0049840 PCM, Propulsion Control Module, Raw Water Cooling
    SN# 1A648622 & Below
    PCM, Propulsion Control Module, Raw Water Cooling
    SN# 1A648622 & Below
  • 4
    78-8M0059345 PCM, Propulsion Control Module, Raw Water Cooling
    SN# 1A648623 & Up
    PCM, Propulsion Control Module, Raw Water Cooling
    SN# 1A648623 & Up
  • 5
    23-856954 BUSHING
    BUSHING
  • 6
    25-834985 GROMMET
    GROMMET
  • 7
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 8
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 9
    84-8M0114869 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 10
    84-865677T02 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 11
    805218T SENSOR
    SENSOR
  • 12
    816492A15 ALARM KIT
    ALARM KIT
  • 13
    882751 RELAY
    RELAY
  • 14
    88-11178A01 BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A054632 & Below
    BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A054632 & Below
  • 14
    88-11178A01 BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A054633 & Up
    BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A054633 & Up
  • 15
    11-826709106 NUT, (#10-32) Stainless Steel
    SN# 2A054632 & Below
    NUT, (#10-32) Stainless Steel
    SN# 2A054632 & Below
  • 15
    11-68219 NUT, (#10-32) Stainless Steel
    SN# 2A054633 & Up
    NUT, (#10-32) Stainless Steel
    SN# 2A054633 & Up
  • 16
    10-830861 SCREW, (#8-32 x .625)
    SN# 2A054632 & Below
    SCREW, (#8-32 x .625)
    SN# 2A054632 & Below
  • 16
    10-45862 SCREW, (#10-32 x .875)
    SN# 2A054633 & Up
    SCREW, (#10-32 x .875)
    SN# 2A054633 & Up
  • 17
    10-82130025 SCREW, (M6 x 25), Shift Plate to Isolator Bracket
    SCREW, (M6 x 25), Shift Plate to Isolator Bracket
  • 18
    25-834985 GROMMET
    GROMMET
  • 19
    23-856954 BUSHING
    BUSHING
  • 20
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 21
    84-8M0113732 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 22
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 23
    828054 COVER, Fuse
    COVER, Fuse
  • 24
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
  • 25
    22-38992 FITTING
    FITTING
  • 26
    22-52930 FITTING
    FITTING
  • 27
    87-805605A1 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 28
    8M0068784 SENDER ASSEMBLY
    SENDER ASSEMBLY
  • 29
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 30
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 31
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 32
    10-816585 SCREW, (.375-18 x .875), PCM Bracket to Block
    SCREW, (.375-18 x .875), PCM Bracket to Block
  • 33
    10-8M0113180 SCREW, (.375-16 x 1.00), Shift Bracket to Block
    SCREW, (.375-16 x 1.00), Shift Bracket to Block
  • -
    879172A37 PLATE ASSEMBLY, Decal
    SN# 1A643256 & Below
    PLATE ASSEMBLY, Decal
    SN# 1A643256 & Below
  • 34
    8M2006275 PLATE, Decal
    PLATE, Decal
  • 35
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 36
    12-30771 WASHER
    WASHER
  • 37
    12-86400 WASHER, Sealing
    WASHER, Sealing
  • -
    37-8M2007093 DECAL, 3.0L
    SN# 1A643256 & Below
    DECAL, 3.0L
    SN# 1A643256 & Below
  • -
    37-8M0053015 DECAL, 3.0L EC
    SN# 1A643257 & Up
    DECAL, 3.0L EC
    SN# 1A643257 & Up
  • -
    37-8M2007500 DECAL, Emission Control
    SN# 1A643256 & Below
    DECAL, Emission Control
    SN# 1A643256 & Below
  • -
    866814A01 SENDER KIT, Smartcraft
    SENDER KIT, Smartcraft
  • 38
    881879T11 SENSOR, Pressure (0 - 100 PSI)
    SENSOR, Pressure (0 - 100 PSI)
  • 39
    84-866613A01 HARNESS, Digital
    (Connects Engine Harness to Oil Pressure Sender)
    HARNESS, Digital
    (Connects Engine Harness to Oil Pressure Sender)
  • 40
    84-8M0048427 HARNESS, Analog
    (Connects Engine Harness to Oil Pressure Sender)
    HARNESS, Analog
    (Connects Engine Harness to Oil Pressure Sender)
