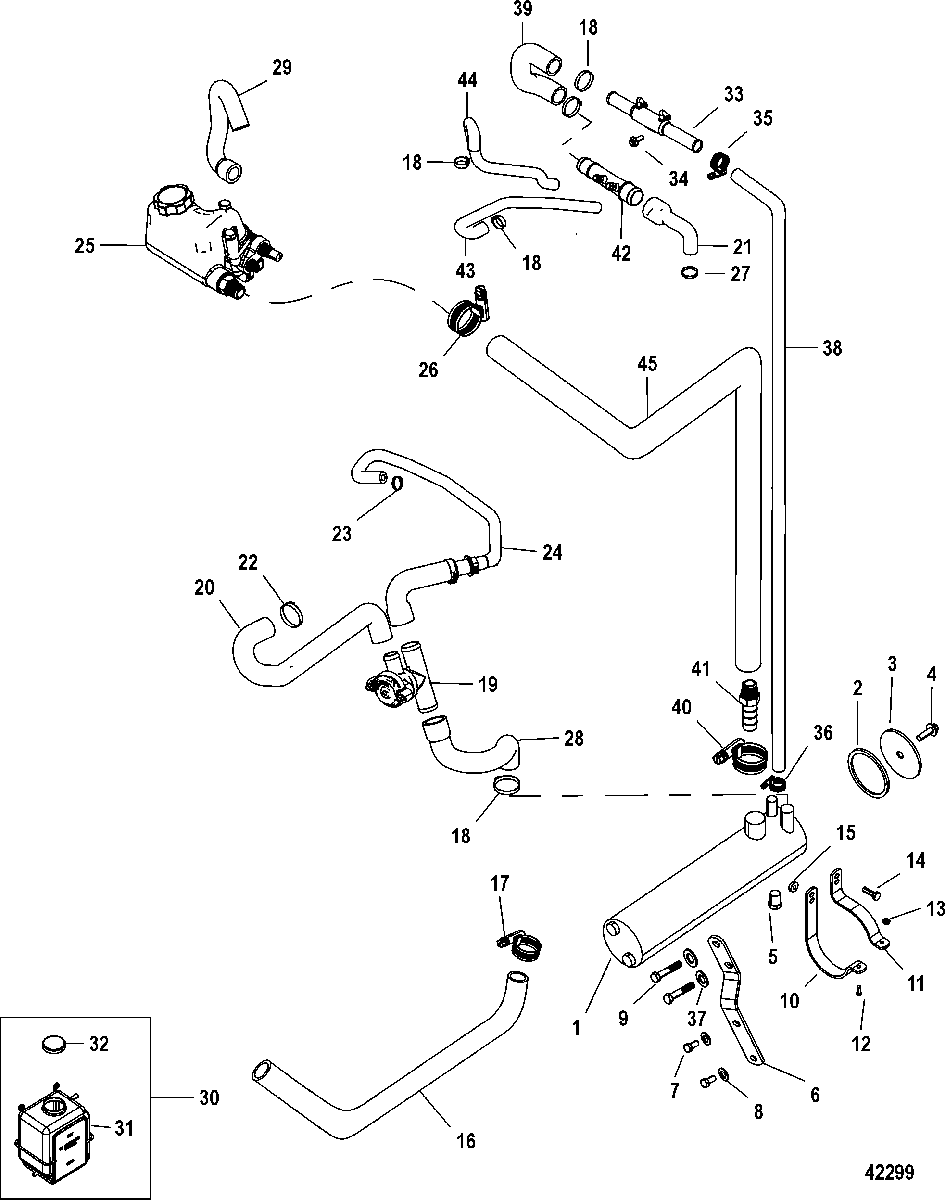

Closed Cooling System, Fresh Water with Power Steering для Mercruiser - 3.0L MPI EC 1A072812 & Up

  • №
    Артикул
    Название
  • 1
    61086A7 HEAT EXCHANGER ASSEMBLY
    HEAT EXCHANGER ASSEMBLY
  • 2
    27-65128 GASKET
    GASKET
  • 3
    66221 COVER
    COVER
  • 4
    10-66223 SCREW
    SCREW
  • 5
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 6
    61895 BRACKET, Front
    BRACKET, Front
  • 7
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    10-36359 SCREW, (.437-14 x 5.00)
    SCREW, (.437-14 x 5.00)
  • 10
    NSS NOT SOLD SEPARATE, Bracket, Rear Lower
    NOT SOLD SEPARATE, Bracket, Rear Lower
  • 11
    61897T BRACKET, Rear Upper
    BRACKET, Rear Upper
  • 12
    10-65027 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 13
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 14
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 15
    23-905201 SPACER, (.750 x .250)
    SPACER, (.750 x .250)
  • 16
    32-8M2005186 HOSE, Water Pump to Heat Exchanger
    HOSE, Water Pump to Heat Exchanger
  • 17
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 18
    54-8M2000353 CLAMP
    CLAMP
  • 19
    879288T43 VALVE ASSEMBLY, Relief
    (See breakdown on "Closed Cooling System, Poppet Valve / Thermostat Housing")
    VALVE ASSEMBLY, Relief
    (See breakdown on "Closed Cooling System, Poppet Valve / Thermostat Housing")
  • 20
    32-8M2005240 HOSE, Poppet Valve to Manifold
    HOSE, Poppet Valve to Manifold
  • 21
    32-8M2007309 HOSE, Transom to Orifice Meter
    HOSE, Transom to Orifice Meter
  • 22
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 23
    54-848764 CLAMP, (21 mm)
    CLAMP, (21 mm)
  • 24
    32-8M2005239 HOSE, Poppet, Elbow
    HOSE, Poppet, Elbow
  • 25
    8M0135236 RESERVOIR ASSEMBLY
    (See breakdown on "Closed Cooling System, Poppet Valve / Thermostat Housing")
    RESERVOIR ASSEMBLY
    (See breakdown on "Closed Cooling System, Poppet Valve / Thermostat Housing")
  • 26
    54-815504105 CLAMP, Worm Gear (12 - 20 mm)
    CLAMP, Worm Gear (12 - 20 mm)
  • 27
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 28
    32-8M2005237 HOSE, Heat Exchanger to Poppet
    HOSE, Heat Exchanger to Poppet
  • 29
    32-8M2010908 HOSE, Reservoir to Exchanger
    HOSE, Reservoir to Exchanger
  • 30
    71587A10 RECOVERY KIT, Coolant
    RECOVERY KIT, Coolant
  • NS
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 31
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 32
    72058 CAP
    CAP
  • 33
    8M0063119 COOLER, Power Steering
    COOLER, Power Steering
  • 34
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
  • 35
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 36
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 36
    54-806616 CLAMP, Cooler Bypass
    Without Power Steering
    CLAMP, Cooler Bypass
    Without Power Steering
  • 37
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 38
    32-8M2005238 HOSE, Power Steering Cooler to Heat Exchanger
    With Power Steering
    HOSE, Power Steering Cooler to Heat Exchanger
    With Power Steering
  • 38
    861783 HOSE, Cooler Bypass
    Without Power Steering
    HOSE, Cooler Bypass
    Without Power Steering
  • 39
    32-8M2001715 HOSE, Orifice meter to Power Steering Cooler
    HOSE, Orifice meter to Power Steering Cooler
  • 40
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 41
    22-8552141 FITTING
    FITTING
  • 42
    22-865317 FITTING, Restricted Flow
    FITTING, Restricted Flow
  • NS
    772234 PAD
    PAD
  • 43
    32-8M2007089 HOSE, Orifice Meter to Fuel Supply Module
    HOSE, Orifice Meter to Fuel Supply Module
  • 44
    32-8M2001666 HOSE, Fuel Supply Module to Orifice Meter
    HOSE, Fuel Supply Module to Orifice Meter
  • 45
    32-8M2010172 HOSE, Heat Exchanger to Reservoir
    HOSE, Heat Exchanger to Reservoir
  • -
    879288A02 CLOSED COOLING KIT
    CLOSED COOLING KIT
