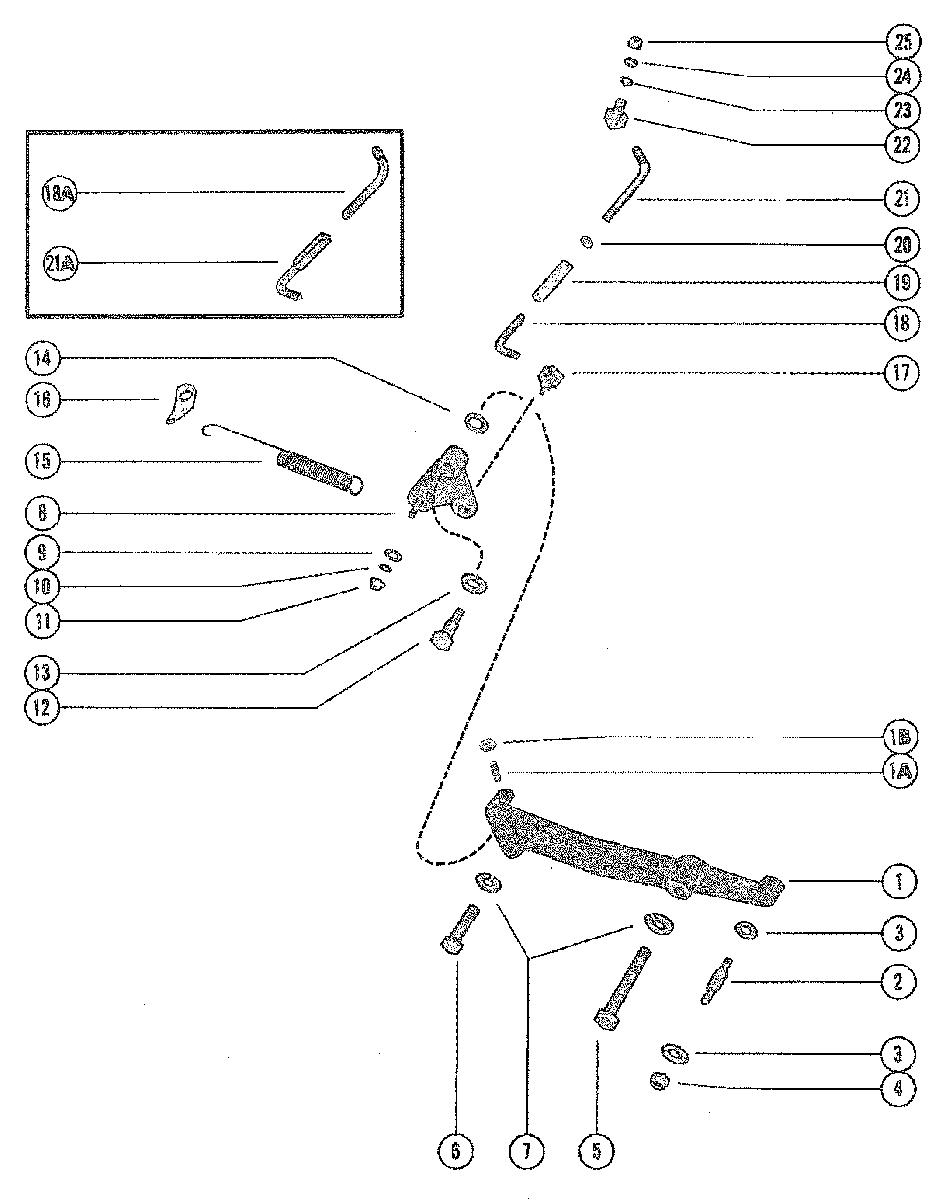

THROTTLE LINKAGE для Mercruiser - 140 GM 181 I/L4 1972-1978 3332138 THRU 5157668

  • №
    Артикул
    Название
  • 1
    70127A1 BRACKET, MOUNTING - THROTTLE LINKAGE
    SERIAL 00000000-04460664
    BRACKET, MOUNTING - THROTTLE LINKAGE
    SERIAL 00000000-04460664
  • 1
    70127A1 BRACKET, MOUNTING - THROTTLE LINKAGE
    SERIAL 04460665-09999999
    BRACKET, MOUNTING - THROTTLE LINKAGE
    SERIAL 04460665-09999999
  • 1A
    10-64969 SCREW, THROTTLE STOP
    SERIAL 04460665-09999999
    SCREW, THROTTLE STOP
    SERIAL 04460665-09999999
  • 1B
    11-33122 NUT, THROTTLE STOP SCREW
    SERIAL 04460665-09999999
    NUT, THROTTLE STOP SCREW
    SERIAL 04460665-09999999
  • 2
    16-38525 STUD, ANCHOR - THROTTLE CABLE TO MOUNTING BRACKET
    STUD, ANCHOR - THROTTLE CABLE TO MOUNTING BRACKET
  • 3
    12-24664 WASHER, THROTTLE CABLE ANCHOR STUD
    WASHER, THROTTLE CABLE ANCHOR STUD
  • 4
    11-826709109 NUT, THROTTLE CABLE ANCHOR STUD
    NUT, THROTTLE CABLE ANCHOR STUD
  • 5
    10-23703 BOLT, MOUNTING BRACKET TO EXHAUST MANIFOLD (7/8')
    BOLT, MOUNTING BRACKET TO EXHAUST MANIFOLD (7/8')
  • 6
    10-73657 BOLT, MOUNTING BRACKET TO EXHAUST MANIFOLD (1 1/2')
    BOLT, MOUNTING BRACKET TO EXHAUST MANIFOLD (1 1/2')
  • 7
    13-39107 LOCKWASHER, MOUNTING BRACKET BOLT
    LOCKWASHER, MOUNTING BRACKET BOLT
  • 8
    78890T LEVER, THROTTLE - MOUNTING BRACKET
    SERIAL 03332138-03462607
    LEVER, THROTTLE - MOUNTING BRACKET
    SERIAL 03332138-03462607
  • 8
    78890T LEVER, THROTTLE - MOUNTING BRACKET
    SERIAL 03462608-04918569
    LEVER, THROTTLE - MOUNTING BRACKET
    SERIAL 03462608-04918569
  • 8
    78890T LEVER, THROTTLE - MOUNTING BRACKET
    SERIAL 04918570-09999999
    LEVER, THROTTLE - MOUNTING BRACKET
    SERIAL 04918570-09999999
  • 9
    12-35950 WASHER, THROTTLE LEVER AND STUD (7/16' O.D.)
    WASHER, THROTTLE LEVER AND STUD (7/16' O.D.)
  • 10
    12-30164 WASHER, THROTTLE LEVER STUD (3/8' O.D.)
    WASHER, THROTTLE LEVER STUD (3/8' O.D.)
  • 11
    11-20110 NUT, THROTTLE LEVER STUD
    NUT, THROTTLE LEVER STUD
  • 12
    10-38507 SCREW, STEP - THROTTLE LEVER TO MOUNTING BRACKET
    SCREW, STEP - THROTTLE LEVER TO MOUNTING BRACKET
  • 13
    12-57792 WASHER, THROTTLE LEVER STEP SCREW (21/64'I.D.)
    WASHER, THROTTLE LEVER STEP SCREW (21/64'I.D.)
  • 14
    12-20553 WASHER, THROTTLE LEVER STEP SCREW (3/8'O.D)
    WASHER, THROTTLE LEVER STEP SCREW (3/8'O.D)
  • 15
    24-52082 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 16
    52075 BRACKET, THROTTLE RETURN SPRING
    BRACKET, THROTTLE RETURN SPRING
  • 17
    27947 SWIVEL, LINK ROD TO THROTTLE LEVER
    SWIVEL, LINK ROD TO THROTTLE LEVER
  • 18
    38982 LINK ROD, THROTTLE
    SERIAL 03332138-04156999
    LINK ROD, THROTTLE
    SERIAL 03332138-04156999
  • 19
    33393 SLEEVE, ADJUSTING - THROTTLE LINK ROD
    SERIAL 03332138-04156999
    SLEEVE, ADJUSTING - THROTTLE LINK ROD
    SERIAL 03332138-04156999
  • 20
    11-25168 NUT, JAM - THROTTLE LINK ROD
    SERIAL 03332138-04156999
    NUT, JAM - THROTTLE LINK ROD
    SERIAL 03332138-04156999
  • 21
    33394 LINK ROD, CARBURETOR
    SERIAL 03332138-04156999
    LINK ROD, CARBURETOR
    SERIAL 03332138-04156999
  • 18A
    64804 LINK ROD, THROTTLE
    SERIAL 04157000-09999999
    LINK ROD, THROTTLE
    SERIAL 04157000-09999999
  • 21A
    63145A1 LINK ROD, CABURETOR
    SERIAL 04157000-09999999
    LINK ROD, CABURETOR
    SERIAL 04157000-09999999
  • 22
    38983 SWIVEL, LINK ROD TO CARBURETOR
    SWIVEL, LINK ROD TO CARBURETOR
  • 23
    12-35950 WASHER, LINK ROD TO CARURETOR SWIVEL
    WASHER, LINK ROD TO CARURETOR SWIVEL
  • 24
    12-30164 WASHER, LINK ROD TO CARBURETOR SWIVEL
    WASHER, LINK ROD TO CARBURETOR SWIVEL
  • 25
    11-20110 NUT, LINK ROD TO CARBURETOR SWIVEL
    NUT, LINK ROD TO CARBURETOR SWIVEL
