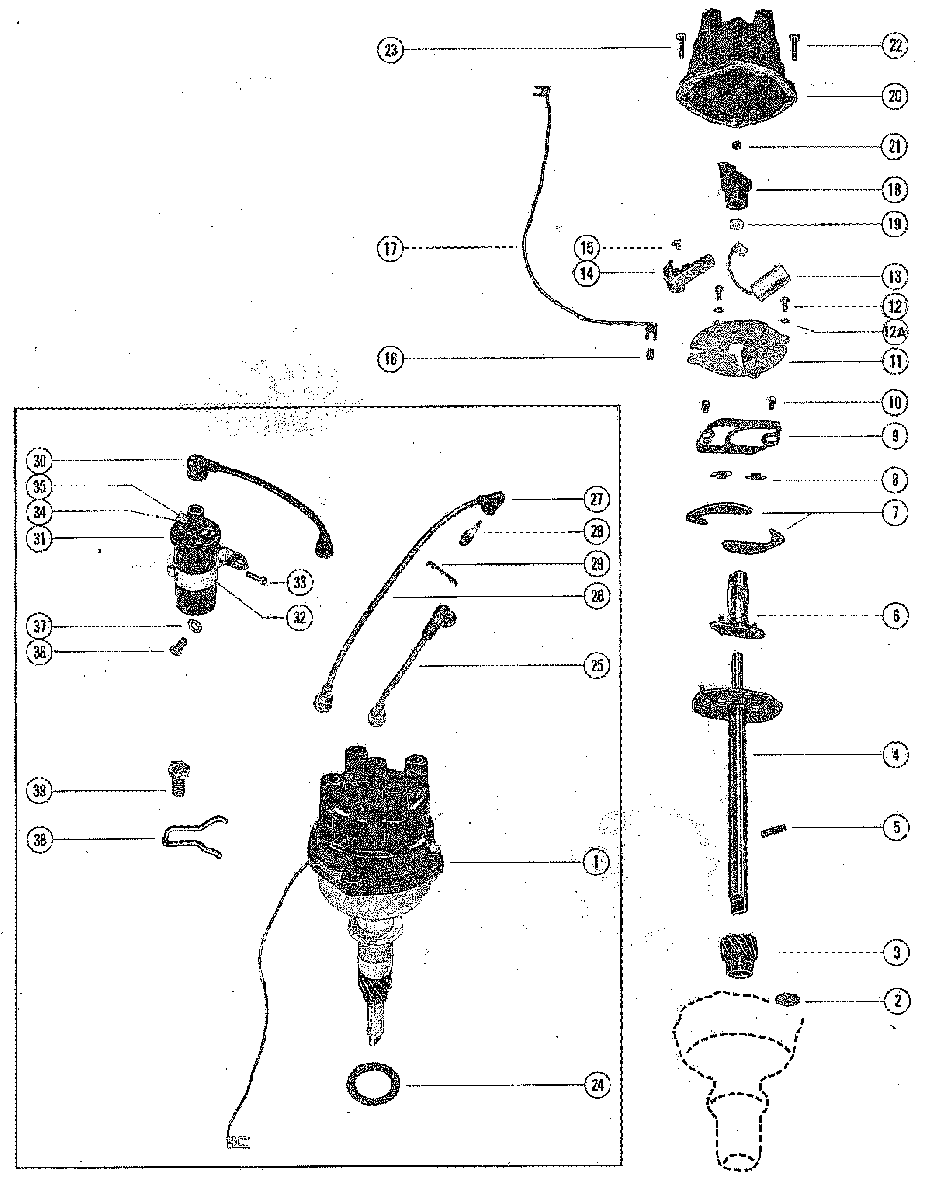

DISTRIBUTOR ASSEMBLY AND COIL для Mercruiser - 140 GM 181 I/L4 1972-1978 3332138 THRU 5157668

  • №
    Артикул
    Название
  • 1
    195141 DISTRIBUTOR ASSEMBLY COMPLETE
    DISTRIBUTOR ASSEMBLY COMPLETE
  • 2
    62426 SCREEN, VENT - DISTRIBUTOR HOUSING
    SCREEN, VENT - DISTRIBUTOR HOUSING
  • 3
    43-33664 GEAR, DRIVE - MAIN SHAFT
    GEAR, DRIVE - MAIN SHAFT
  • 4
    58218 MAIN SHAFT AND WEIGHT PLATE
    MAIN SHAFT AND WEIGHT PLATE
  • 5
    17-33649 PIN, DRIVE GEAR TO MAIN SHAFT
    PIN, DRIVE GEAR TO MAIN SHAFT
  • 6
    58235 CAM, BREAKER - ADVANCE
    CAM, BREAKER - ADVANCE
  • -
    12-58220 WASHER, CAM AND SHAFT
    WASHER, CAM AND SHAFT
  • -
    26-58219 SEAL, HOUSING
    SEAL, HOUSING
  • -
    33653 FELT, BREAKER CAM IUBRICATOR
    FELT, BREAKER CAM IUBRICATOR
  • -
    33670 RETAINER, BREAKER CAM LUBRICATOR FELT
    RETAINER, BREAKER CAM LUBRICATOR FELT
  • 7
    24-33769 WEIGHT, BREAKER CAM ADVANCE
    WEIGHT, BREAKER CAM ADVANCE
  • 8
    24-58236 SPRING, BREAKER CAM ADVANCE WEIGHT
    SPRING, BREAKER CAM ADVANCE WEIGHT
  • 9
    33655 PLATE, WEIGHT HOLD DOWN
    PLATE, WEIGHT HOLD DOWN
  • 10
    10-33722 SCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATE
    SCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATE
  • 11
    33665 PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
    PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
  • 12
    10-20650 SCREW, MOUNTING PLATE TO PRIMARY HOUSING
    SCREW, MOUNTING PLATE TO PRIMARY HOUSING
  • 12A
    12-62425 WASHER, BREAKER PLATE SUPPORT SCREW
    WASHER, BREAKER PLATE SUPPORT SCREW
  • 13
    8M6001218 CONDENSER
    CONDENSER
  • --
    48024 BRACKET, CONDENSER MOUNTING
    BRACKET, CONDENSER MOUNTING
  • --
    10-48021 SCREW, CONDENSER BRACKET ATTACHING
    SCREW, CONDENSER BRACKET ATTACHING
  • 14
    34235T BREAKER ASSEMBLY, DISTRIBUTOR
    BREAKER ASSEMBLY, DISTRIBUTOR
  • 15
    10-33650 SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
    SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
  • 16
    25-33666 GROMMET, MOUNTING PLATE - PRIMARY WIRE
    GROMMET, MOUNTING PLATE - PRIMARY WIRE
  • 17
    33658 LEAD, PRIMARY
    LEAD, PRIMARY
  • 18
    8M6001251 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 19
    12-36275 WASHER, ROTOR
    WASHER, ROTOR
  • 20
    393-9459Q1 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 21
    33654 BUTTON, CARBON - DISTRIBUTOR CAP
    BUTTON, CARBON - DISTRIBUTOR CAP
  • 22
    10-33660 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
  • 23
    10-33663 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
  • 24
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 25
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6')
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6')
  • 26
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (14')
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (14')
  • 27
    85-63709A1 PROTECTOR, HIGH TENSION LEAD
    PROTECTOR, HIGH TENSION LEAD
  • --
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • 28
    33-8134711 SPARK PLUG (AC#CR 44N) - NON TAPERED
    SPARK PLUG (AC#CR 44N) - NON TAPERED
  • 28
    33-898264001 SPARK PLUG (AC#R43T) - TAPERED
    SPARK PLUG (AC#R43T) - TAPERED
  • 29
    32782 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 30
    84-815297A44 WIRE ASSEMBLY, DISTRIBUTOR TO COIL (8 1/4')
    SERIAL 03332138-03771644
    WIRE ASSEMBLY, DISTRIBUTOR TO COIL (8 1/4')
    SERIAL 03332138-03771644
  • 31
    898253T24 COIL, IGNITION
    SERIAL 03332138-03771644
    COIL, IGNITION
    SERIAL 03332138-03771644
  • 32
    33321 BRACKET, IGNITION COIL MOUNTING
    SERIAL 03332138-03771644
    BRACKET, IGNITION COIL MOUNTING
    SERIAL 03332138-03771644
  • 33
    10-33311 SCREW, MOUNTING BRACKET TO COIL (1 1/2')
    SERIAL 03332138-03771644
    SCREW, MOUNTING BRACKET TO COIL (1 1/2')
    SERIAL 03332138-03771644
  • 30
    84-815297A44 WIRE, DISTRIBUTOR TO COIL (12')
    SERIAL 03771645-09999999
    WIRE, DISTRIBUTOR TO COIL (12')
    SERIAL 03771645-09999999
  • 31
    898253T24 COIL, IGNITION
    SERIAL 03771645-09999999
    COIL, IGNITION
    SERIAL 03771645-09999999
  • 32
    65970T1 BRACKET, IGNITION COIL MOUNTING
    SERIAL 03771645-09999999
    BRACKET, IGNITION COIL MOUNTING
    SERIAL 03771645-09999999
  • 33
    10-66652 SCREW, MOUNTING BRACKET TO COIL
    SERIAL 03771645-09999999
    SCREW, MOUNTING BRACKET TO COIL
    SERIAL 03771645-09999999
  • 34
    12-30164 WASHER, IGNITION COIL TERMINAL
    WASHER, IGNITION COIL TERMINAL
  • 34
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 35
    11-68219 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 36
    10-98261 SCREW, IGNITION COIL TO CYLINDER BLOCK
    SCREW, IGNITION COIL TO CYLINDER BLOCK
  • 37
    12-20553 WASHER, IGNITION COIL SCREW
    WASHER, IGNITION COIL SCREW
  • 38
    72624 CLAMP UNIT, DISTRIBUTOR
    SERIAL 00000000-04512155
    CLAMP UNIT, DISTRIBUTOR
    SERIAL 00000000-04512155
  • 38
    72624 CLAMP UNIT, DISTRIBUTOR
    SERIAL 04512156-09999999
    CLAMP UNIT, DISTRIBUTOR
    SERIAL 04512156-09999999
  • 39
    10-11976 SCREW, DISTRIBUTOR TO CYLINDER BLOCK
    SCREW, DISTRIBUTOR TO CYLINDER BLOCK
