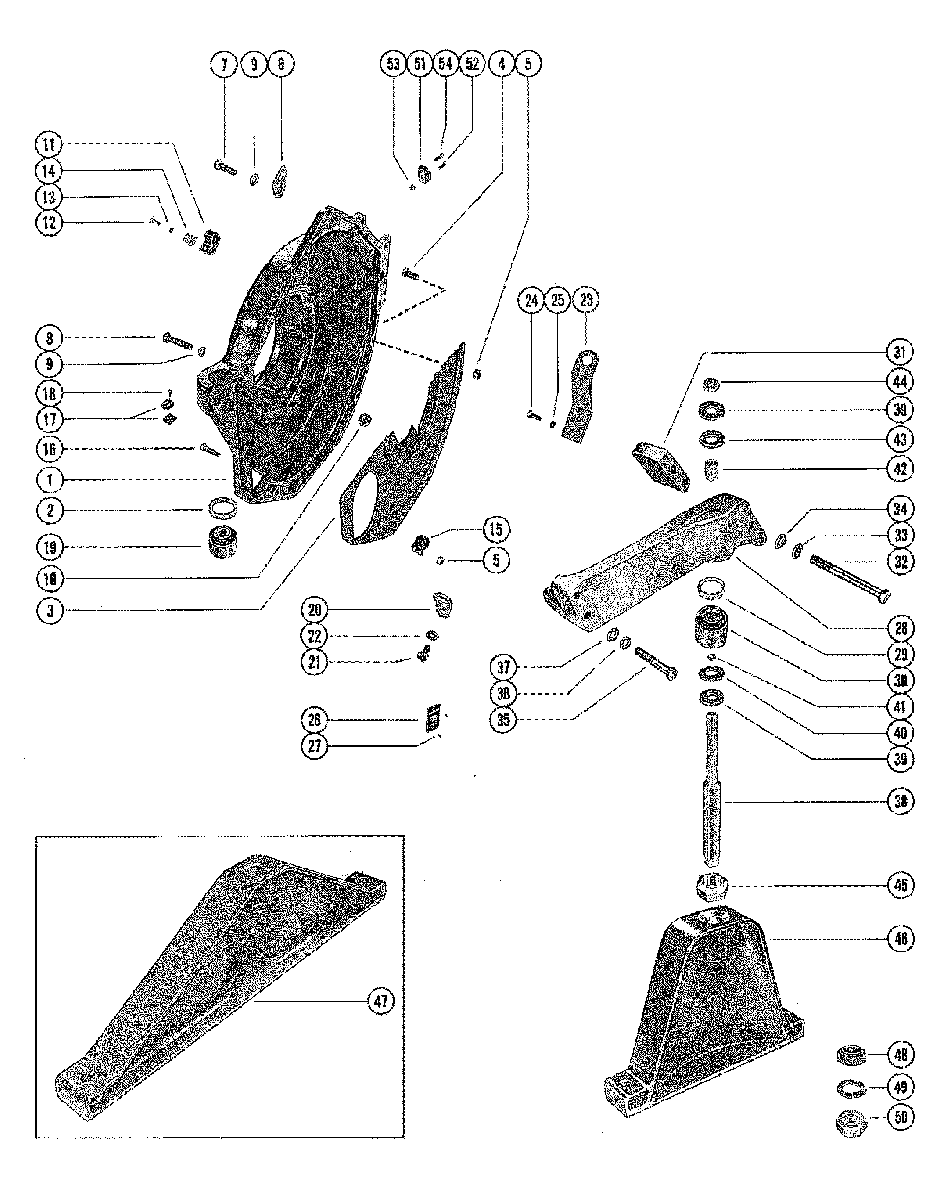

FLYWHEEL HOUSING AND ENGINE SUPPORT для Mercruiser - 140 GM 181 I/L4 1972-1978 3332138 THRU 5157668

  • №
    Артикул
    Название
  • 1
    65059A1 FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
    SERIAL 00332138-03462607
    FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
    SERIAL 00332138-03462607
  • 1
    65059A1 FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
    SERIAL 03462608-09999999
    FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
    SERIAL 03462608-09999999
  • 2
    23-99322 SPACER, FLYWHEEL HOUSING MOUNT
    SPACER, FLYWHEEL HOUSING MOUNT
  • 3
    35864A1 COVER PLATE, FLYWHEEL HOUSING
    COVER PLATE, FLYWHEEL HOUSING
  • 4
    10-47277 SCREW, COVER PLATE TO FLYWHEEL HOUSING (3/4")
    SCREW, COVER PLATE TO FLYWHEEL HOUSING (3/4")
  • 5
    11-29250 NUT, COVER PLATE SCREW
    NUT, COVER PLATE SCREW
  • 6
    54-72531 EYE, LIFTING - FLYWHEEL HOUSING SCREW
    EYE, LIFTING - FLYWHEEL HOUSING SCREW
  • 7
    10-37612 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1/4")
    SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1/4")
  • 8
    10-98556 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")
    SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")
  • 9
    13-35048 LOCKWASHER, BRACKET AND FLYWHEEL HOUSING SCREW
    LOCKWASHER, BRACKET AND FLYWHEEL HOUSING SCREW
  • 10
    11-32219 NUT, BRACKET AND FLYWHEEL HOUSING SCREW
    NUT, BRACKET AND FLYWHEEL HOUSING SCREW
  • 11
    54-24871 CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 03332138-03462607
    CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 03332138-03462607
  • 12
    10-22028 SCREW, WIRING HARNESS CLAMP ATTACHING
    SERIAL 03332138-03462607
    SCREW, WIRING HARNESS CLAMP ATTACHING
    SERIAL 03332138-03462607
  • 13
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    SERIAL 03332138-03462607
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
    SERIAL 03332138-03462607
  • 14
    8M0084613 "C" WASHER, WIRING HARNESS CLAMP
    SERIAL 03332138-03462607
    "C" WASHER, WIRING HARNESS CLAMP
    SERIAL 03332138-03462607
  • 15
    54-61001 CLIP, WIRING HARNESS TO FLYWHEEL
    SERIAL 03462608-09999999
    CLIP, WIRING HARNESS TO FLYWHEEL
    SERIAL 03462608-09999999
  • 16
    10-26065 SCREW, WIRING HARNESS CLIP TO COVER PLATE (1")
    SERIAL 03462608-09999999
    SCREW, WIRING HARNESS CLIP TO COVER PLATE (1")
    SERIAL 03462608-09999999
  • 17
    39974 CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 03332138-03462607
    CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 03332138-03462607
  • 18
    10-47618 SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
    SERIAL 03332138-03462607
    SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
    SERIAL 03332138-03462607
  • 17
    39974 CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 03462608-03771644
    CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 03462608-03771644
  • 18
    10-37892 SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
    SERIAL 03462608-03771644
    SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
    SERIAL 03462608-03771644
  • 19
    32832 MOUNT, FLYWHEEL HOUSING (LEFT)
    MOUNT, FLYWHEEL HOUSING (LEFT)
  • 19
    8M0103028 MOUNT, FLYWHEEL HOUSING (RIGHT)
    MOUNT, FLYWHEEL HOUSING (RIGHT)
  • 20
    54-72531 EYE, LIFTER - CYLINDER BLOCK
    SERIAL 03332138-03462607
    EYE, LIFTER - CYLINDER BLOCK
    SERIAL 03332138-03462607
  • 21
    10-98261 SCREW, LIFTING EYE TO CYLINDER BLOCK
    SERIAL 03332138-03462607
    SCREW, LIFTING EYE TO CYLINDER BLOCK
    SERIAL 03332138-03462607
  • 22
    13-35048 LOCKWASHER, LIFTING EYE SCREW
    SERIAL 03332138-03462607
    LOCKWASHER, LIFTING EYE SCREW
    SERIAL 03332138-03462607
  • 23
    67850 EYE, LIFTING - CYLINDER BLOCK SERIAL
    SERIAL 03462608-09999999
    EYE, LIFTING - CYLINDER BLOCK SERIAL
    SERIAL 03462608-09999999
  • 24
    10-54528 SCREW, LIFTING EYE TO CYLINDER BLOCK
    SERIAL 03462608-09999999
    SCREW, LIFTING EYE TO CYLINDER BLOCK
    SERIAL 03462608-09999999
  • 25
    13-35364 LOCKWASHER, LIFTING EYE SCREW
    SERIAL 03462608-09999999
    LOCKWASHER, LIFTING EYE SCREW
    SERIAL 03462608-09999999
  • 26
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 27
    10-28642 SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK
    SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK
  • 28
    73571A2 BRACKET ASSEMBLY, FRONT MOUNTING
    SERIAL 00000000-04461249
    BRACKET ASSEMBLY, FRONT MOUNTING
    SERIAL 00000000-04461249
  • 28
    73571A2 BRACKET ASSEMBLY, FRONT MOUNTING
    SERIAL 04461250-09999999
    BRACKET ASSEMBLY, FRONT MOUNTING
    SERIAL 04461250-09999999
  • 29
    23-35903 SPACER, FRONT MOUNTING BRACKET
    SPACER, FRONT MOUNTING BRACKET
  • 30
    32833 MOUNT, FRONT MOUNTING BRACKET
    MOUNT, FRONT MOUNTING BRACKET
  • 31
    8M0046293 BLOCK, SPACER - FRONT MOUNTING BRACKET
    BLOCK, SPACER - FRONT MOUNTING BRACKET
  • 32
    10-8M2021918 SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")
    SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")
  • 33
    13-32993 LOCKWASHER, BRACKET AND SPACER BLOCK SCREW
    LOCKWASHER, BRACKET AND SPACER BLOCK SCREW
  • 34
    12-22248 WASHER, BRACKET AND SPACER BLOCK SCREW
    WASHER, BRACKET AND SPACER BLOCK SCREW
  • 35
    10-26486 SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")
    SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")
  • 36
    13-35048 LOCKWASHER, FRONT MOUNTING SCREW
    LOCKWASHER, FRONT MOUNTING SCREW
  • 37
    12-34931 WASHER, FRONT MOUNTING BRACKET SCREW
    WASHER, FRONT MOUNTING BRACKET SCREW
  • 38
    16-36100T STUD, ADJUSTING - FRONT MOUNTING BRACKET
    STUD, ADJUSTING - FRONT MOUNTING BRACKET
  • 39
    12-36103 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 40
    12-32638 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 41
    12-20959 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 42
    23-36101 SPACER, FRONT MOUNTING BARACKET ADJUSTING STUD
    SPACER, FRONT MOUNTING BARACKET ADJUSTING STUD
  • 43
    12-36104 WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
  • 44
    11-82671317 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD (TOP)
    NUT, FRONT MOUNTING BRACKET ADJUSTING STUD (TOP)
  • 45
    11-32882 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD
    NUT, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 46
    32778T SUPPORT, FRONT - ENGINE MOUNT
    SUPPORT, FRONT - ENGINE MOUNT
  • 47
    32849 SUPPORT, FRONT - ENGINE MOUNT
    SUPPORT, FRONT - ENGINE MOUNT
  • 48
    23-33064 SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD
    SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 49
    13-33065 LOCKWASHER, FRONT MOUNTING BRACKET STUD (BOTTOM)
    LOCKWASHER, FRONT MOUNTING BRACKET STUD (BOTTOM)
  • 50
    11-47525 NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)
    NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)
  • 51
    86-45915 TERMINAL BLOCK
    SERIAL 04461250-09999999
    TERMINAL BLOCK
    SERIAL 04461250-09999999
  • 52
    10-20189 SCREW, TERMINAL BLOCK TO FLYWHEEL HOUSING (3/4")
    SERIAL 04461250-09999999
    SCREW, TERMINAL BLOCK TO FLYWHEEL HOUSING (3/4")
    SERIAL 04461250-09999999
  • 53
    11-27164 NUT, TERMINAL BLOCK SCREW
    SERIAL 04461250-09999999
    NUT, TERMINAL BLOCK SCREW
    SERIAL 04461250-09999999
  • 54
    10-62568 SCREW, ROTARY TRIM SENDER LEADS
    SERIAL 04461250-09999999
    SCREW, ROTARY TRIM SENDER LEADS
    SERIAL 04461250-09999999
