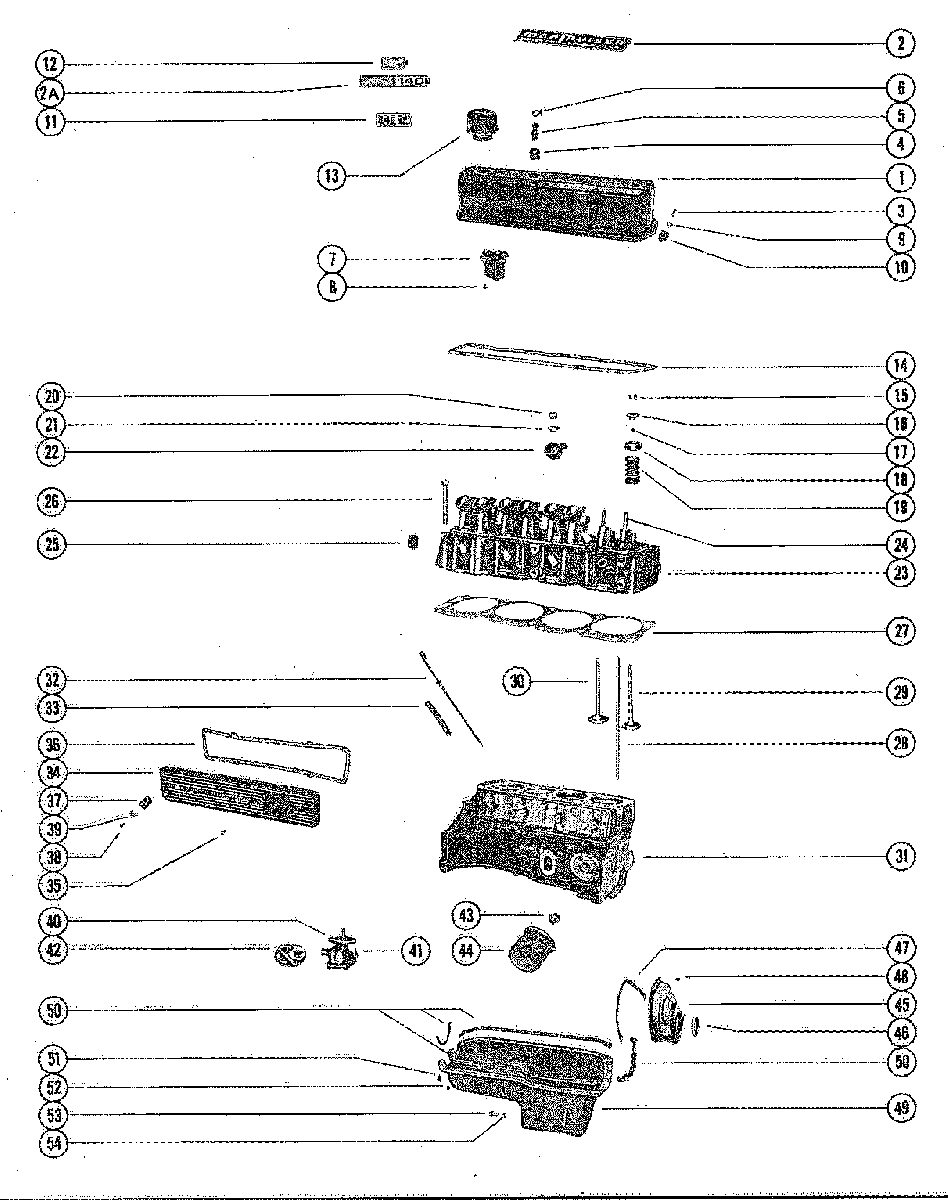

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 140 GM 181 I/L4 1972-1978 3332138 THRU 5157668

  • №
    Артикул
    Название
  • 1
    62234A2 COVER ASSEMBLY, ROCKER
    SEE NOTE SERIAL 03332138-03462607
    COVER ASSEMBLY, ROCKER
    SEE NOTE SERIAL 03332138-03462607
  • 1
    65635A16 COVER ASSEMBLY, ROCKER
    SERIAL 03462608-09999999
    COVER ASSEMBLY, ROCKER
    SERIAL 03462608-09999999
  • 2
    37-55541 DECAL, ROCKER COVER
    SERIAL 00000000-04648609
    DECAL, ROCKER COVER
    SERIAL 00000000-04648609
  • 2A
    37-77247 DECAL, ROCKER COVER
    SERIAL 04648610-09999999
    DECAL, ROCKER COVER
    SERIAL 04648610-09999999
  • 3
    10-65746 SCREW, ROCKER COVER TO CYLINDER HEAD (3/4")
    SCREW, ROCKER COVER TO CYLINDER HEAD (3/4")
  • 3
    10-98254 SCREW, ROCKER COVER TO CYLINDER HEAD (5/8")
    SCREW, ROCKER COVER TO CYLINDER HEAD (5/8")
  • 4
    23-8M0071559 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
  • 5
    47957 CONNECTOR, VENT HOSE
    CONNECTOR, VENT HOSE
  • 6
    54-64648 CLAMP, VENT HOSE TO CONNECTOR
    CLAMP, VENT HOSE TO CONNECTOR
  • 7
    57638T BAFFLE, ROCKER COVER
    BAFFLE, ROCKER COVER
  • 8
    10-62568 SCREW, BAFFLE TO ROCKER COVER (3/8")
    SCREW, BAFFLE TO ROCKER COVER (3/8")
  • 9
    12-20583 WASHER, ROCKER COVER SCREW
    WASHER, ROCKER COVER SCREW
  • 10
    54-46721 CLIP, ROCKER COVER SCREW
    SERIAL 04648610-03462607
    CLIP, ROCKER COVER SCREW
    SERIAL 04648610-03462607
  • 10
    54-49542 CLAMP, INLET HOSE - ROCKER COVER SCREW
    CLAMP, INLET HOSE - ROCKER COVER SCREW
  • 11
    37-55539 DECAL, ROCKER COVER - "140 H.P."
    SERIAL 00000000-04648609
    DECAL, ROCKER COVER - "140 H.P."
    SERIAL 00000000-04648609
  • 12
    37-77253 DECAL, WAVES
    SERIAL 04648610-09999999
    DECAL, WAVES
    SERIAL 04648610-09999999
  • 13
    17345 OIL FILLER CAP ASSEMBLY, ROCKER COVER
    OIL FILLER CAP ASSEMBLY, ROCKER COVER
  • 14
    27-851040 GASKET, ROCKER COVER TO CYLINDER HEAD
    GASKET, ROCKER COVER TO CYLINDER HEAD
  • 15
    28-547971 KEY, VALVE STEM (2 PER VALVE)
    KEY, VALVE STEM (2 PER VALVE)
  • 16
    FI1100604 CAP, VALVE STEM
    CAP, VALVE STEM
  • 17
    26-34217 SEAL, VALVE SPRING CAP
    SEAL, VALVE SPRING CAP
  • 18
    34518001 SHIELD, VALVE SPRING CAP
    SHIELD, VALVE SPRING CAP
  • 19
    24-35214 SPRING, VALVE
    SPRING, VALVE
  • 20
    11-34516 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 21
    59340 BALL UNIT, ROCKER VALVE ARM STUD
    BALL UNIT, ROCKER VALVE ARM STUD
  • 22
    34519 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 23
    938-8M0115134 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 24
    16-34521 STUD, VALVE ROCKER ARM (.013 O.S.)
    STUD, VALVE ROCKER ARM (.013 O.S.)
  • 24
    35422 STUD, VALVE ROCKER ARM (.003 O.S.)
    STUD, VALVE ROCKER ARM (.003 O.S.)
  • 25
    19-34272 PLUG, EXPANSION - CYLINDER HEAD (15/16" DIA.)
    PLUG, EXPANSION - CYLINDER HEAD (15/16" DIA.)
  • 26
    10-34510 BOLT, CYLINDER HEAD TO CYLINDER BLOCK
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK
  • 27
    27-52364 GASKET, CYLINDER HEAD TO CYLINDER BLOCK
    GASKET, CYLINDER HEAD TO CYLINDER BLOCK
  • 28
    34532 ROD, PUSH - VALVE
    ROD, PUSH - VALVE
  • 29
    97661 VALVE, INLET (STANDARD STEM)
    VALVE, INLET (STANDARD STEM)
  • 29
    97662 VALVE, INLET (.015 O.S. STEM)
    VALVE, INLET (.015 O.S. STEM)
  • 30
    52367 VALVE, EXHAUST (STANDARD STEM)
    VALVE, EXHAUST (STANDARD STEM)
  • 30
    52368 VALVE, EXHAUST (.015 O.S. STEM)
    VALVE, EXHAUST (.015 O.S. STEM)
  • 31
    839-3814 CYLINDER BLOCK ASSEMBLY
    SEE PAGE 18 FOR BREAKDOWN
    CYLINDER BLOCK ASSEMBLY
    SEE PAGE 18 FOR BREAKDOWN
