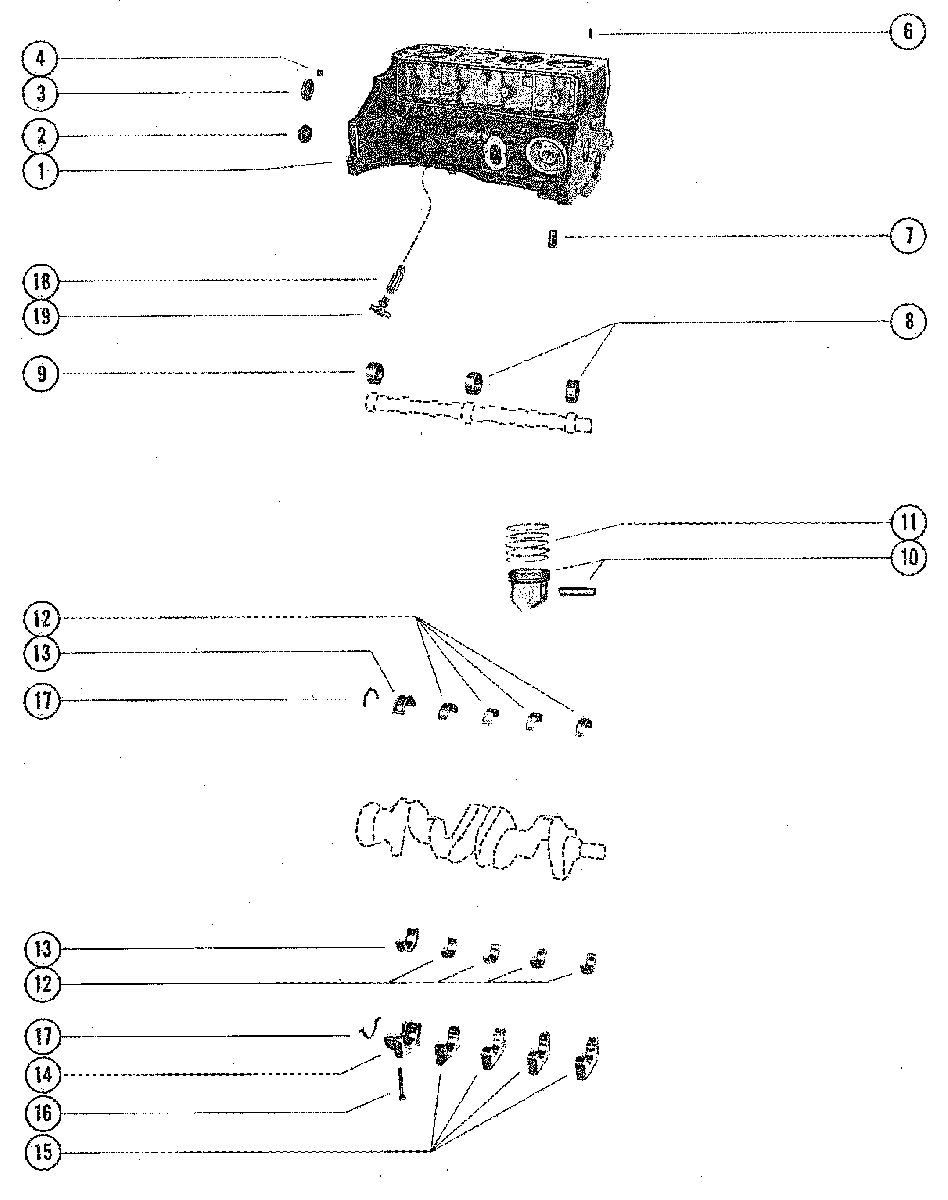

CYLINDER BLOCK, PISTON AND BEARINGS для Mercruiser - 140 GM 181 I/L4 1972-1978 3332138 THRU 5157668

  • №
    Артикул
    Название
  • 1
    839-3814 CYLINDER BLOCK ASSEMBLY (SEE NOTE BELOW)
    CYLINDER BLOCK ASSEMBLY (SEE NOTE BELOW)
  • 2
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
  • 2
    19-34271 PLUG, EXPANSION - CYLINDER BLOCK (2" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (2" DIA.)
  • -
    19-37531 PLUG, OIL CHANNEL - CYLINDER BLOCK
    PLUG, OIL CHANNEL - CYLINDER BLOCK
  • 3
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 4
    22-36373 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 6
    17-35465 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
    PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
  • 7
    23-35168 BEARING, DISTRIBUTOR PILOT SHAFT
    BEARING, DISTRIBUTOR PILOT SHAFT
  • 8 & 9
    90-8M0143356 BEARING, CAMSHAFT (SEE M/C SERVICE BULLETIN 83-19)
    BEARING, CAMSHAFT (SEE M/C SERVICE BULLETIN 83-19)
  • 10
    733-3819 PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    PISTON AND PISTON PIN ASSEMBLY (STANDARD)
  • 10
    733-38181 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
  • 11
    39-17464 RING, PISTON - 4 SETS (STANDARD)
    RING, PISTON - 4 SETS (STANDARD)
  • 11
    39-66217 RING, PISTON - 4 SETS (.020 O.S.)
    SERIAL 03332138-00346207
    RING, PISTON - 4 SETS (.020 O.S.)
    SERIAL 03332138-00346207
  • 11
    39-66217 RING, PISTON - 4 SETS (.020 O.S.)
    SERIAL 03462608-09999999
    RING, PISTON - 4 SETS (.020 O.S.)
    SERIAL 03462608-09999999
  • 12
    23-818469001 BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
  • 12
    23-818470001 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 12
    23-52258 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
  • 12
    23-818471001 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 12
    23-818472 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 13
    23-818469001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 13
    23-818470001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 13
    23-85671 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
  • 13
    23-818471001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 13
    23-818472 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 14
    49954 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 15
    35310 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
  • 16
    10-46717 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
  • 16
    16-48350 STUD, OIL PUMP SCREEN SUPPORT TO BEARING CAP
    STUD, OIL PUMP SCREEN SUPPORT TO BEARING CAP
  • 17
    26-814622 OIL SEAL UNIT, CRANKSHAFT REAR BEARING
    OIL SEAL UNIT, CRANKSHAFT REAR BEARING
  • --
    34543 VALVE, BY-PASS - OIL FILTER
    VALVE, BY-PASS - OIL FILTER
  • 18
    22-64425 FITTING, EXTENSION - CYLINDER BLOCK
    FITTING, EXTENSION - CYLINDER BLOCK
  • 19
    22-16951Q1 FITTING, DRAIN - CYLINDER BLOCK
    FITTING, DRAIN - CYLINDER BLOCK
