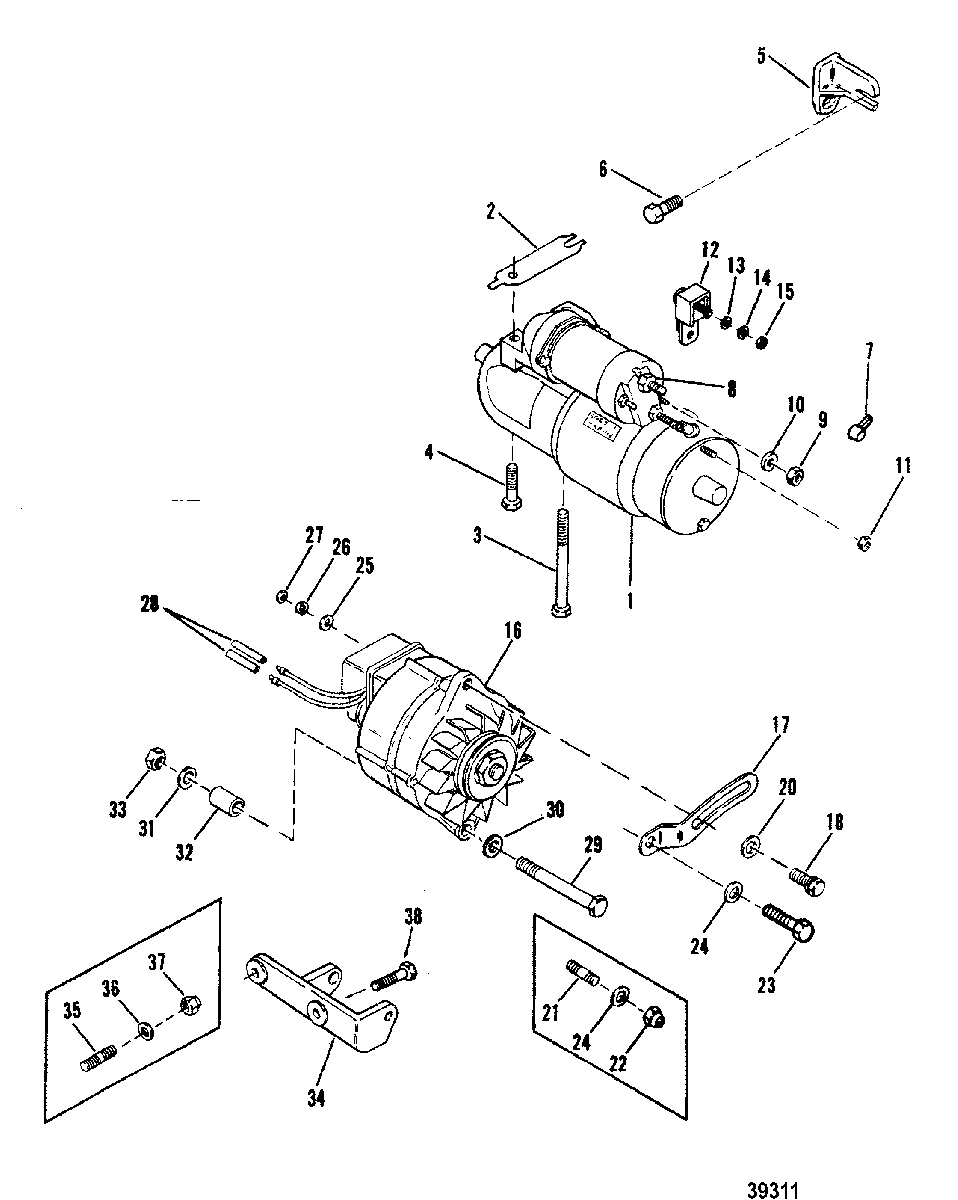

STARTER MOTOR AND ALTERNATOR для Mercruiser - 120 GM 153 I/L4 1983-1986 6229718 THRU 0B531853

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    98192 SHIM, STARTER MOTOR
    SHIM, STARTER MOTOR
  • 3
    10-94435001 BOLT, (.375-16 x 4.600), STARTER MOTOR MOUNTING
    BOLT, (.375-16 x 4.600), STARTER MOTOR MOUNTING
  • 4
    10-8053433 BOLT, STARTER MOTOR MOUNTING (1-15/16")
    BOLT, STARTER MOTOR MOUNTING (1-15/16")
  • 5
    87300T BRACKET, STARTER MOTOR
    BRACKET, STARTER MOTOR
  • 6
    10-865982005 SCREW, (.375-16 x 1.00) , STARTER MOTOR BRACKET TO CYLINDER BLOCK
    SCREW, (.375-16 x 1.00) , STARTER MOTOR BRACKET TO CYLINDER BLOCK
  • 7
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 8
    11-32219 NUT, (.375-16), BATTERY TERMINAL
    NUT, (.375-16), BATTERY TERMINAL
  • 8
    11-15874 NUT, (M10), BATTERY TERMINAL
    NUT, (M10), BATTERY TERMINAL
  • 9
    11-26419 NUT, (#8-32) Brass, SOLENOID SWITH TERMINAL
    NUT, (#8-32) Brass, SOLENOID SWITH TERMINAL
  • 9
    11-400211 NUT, (M5) Stainless Steel, SOLENOID SWITCH TERMINAL
    NUT, (M5) Stainless Steel, SOLENOID SWITCH TERMINAL
  • 10
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID SWITCH TERMINAL
    LOCKWASHER, (#8) Stainless Steel, SOLENOID SWITCH TERMINAL
  • 11
    11-8267088 NUT, (.250-20), STARTERMOTOR TERMINAL
    NUT, (.250-20), STARTERMOTOR TERMINAL
  • 12
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    NOT USED ON LATER ENGINES
    FUSE ASSEMBLY, 90 Ampere
    NOT USED ON LATER ENGINES
  • 13
    12-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE STUD
    NOT USED ON LATER ENGINES
    WASHER, Phenolic (.27 x .81 x .062), FUSE STUD
    NOT USED ON LATER ENGINES
  • 14
    13-26992 LOCKWASHER, (.250) Stainless Steel, FUSE STUD
    NOT USED ON LATER ENGINES
    LOCKWASHER, (.250) Stainless Steel, FUSE STUD
    NOT USED ON LATER ENGINES
  • 15
    11-21825 NUT, (.250-28), FUSE STUD
    NOT USED ON LATER ENGINES
    NUT, (.250-28), FUSE STUD
    NOT USED ON LATER ENGINES
  • 16
    78403A2 ALTERNATOR ASSEMBLY (MOTOROLA)
    37 AMP
    ALTERNATOR ASSEMBLY (MOTOROLA)
    37 AMP
  • 16
    817119A4 ALTERNATOR ASSEMBLY, (55 Ampere) (MOTOROLA)
    55 AMP
    ALTERNATOR ASSEMBLY, (55 Ampere) (MOTOROLA)
    55 AMP
  • 17
    58333 BRACE, ALTERNATOR TO EXHAUST MANIFOLD (FRONT)
    BRACE, ALTERNATOR TO EXHAUST MANIFOLD (FRONT)
  • 18
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE TO ALTERNATOR
    SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE TO ALTERNATOR
  • 20
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 21
    16-54177 STUD, (1 3/8), BRACE TO MANIFOLD
    STUD ATTACHING
    STUD, (1 3/8), BRACE TO MANIFOLD
    STUD ATTACHING
  • 22
    11-23161 NUT, (.375-24), ALTERNATOR BRACE
    STUD ATTACHING
    NUT, (.375-24), ALTERNATOR BRACE
    STUD ATTACHING
  • 23
    10-98261 SCREW, (.375-16 x .750), BRACE TO MANIFOLD
    SCREW ATTACHING
    SCREW, (.375-16 x .750), BRACE TO MANIFOLD
    SCREW ATTACHING
  • 24
    12-20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACER STUD
    WASHER, (.406 x .734 x .063), ALTERNATOR BRACER STUD
  • 25
    12-96457 WASHER, Phenolic (.27 x .81 x .062), BOOT ATTACHING (PHENOLIC)
    WASHER, Phenolic (.27 x .81 x .062), BOOT ATTACHING (PHENOLIC)
  • 26
    13-21272 LOCKWASHER, (.250), ALTERNATOR TERMINAL
    LOCKWASHER, (.250), ALTERNATOR TERMINAL
  • 27
    11-64015 NUT, (.250-20), ALTERNATOR TERMINAL
    NUT, (.250-20), ALTERNATOR TERMINAL
  • 28
    5790811 SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS
    SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS
  • 29
    10-37626 SCREW, (.375-24 x 4.250), ALTERNATOR TO BRACKET
    SCREW, (.375-24 x 4.250), ALTERNATOR TO BRACKET
  • 30
    12-28105 WASHER, ALTERNATOR SCREW
    WASHER, ALTERNATOR SCREW
  • 31
    12-20553 WASHER, (.406 x .734 x .063), ALTERNATOR TO BRACKET
    WASHER, (.406 x .734 x .063), ALTERNATOR TO BRACKET
  • 32
    23-63894 SPACER, ALTERNATOR TO BRACKET
    SPACER, ALTERNATOR TO BRACKET
  • 33
    11-23161 NUT, (.375-24), ALTERNATOR SCREW
    NUT, (.375-24), ALTERNATOR SCREW
  • 34
    16738A1 BRACKET, ALTERNATOR
    BRACKET, ALTERNATOR
  • 35
    16-56826 STUD, (1.5 In.), ALTERNATOR BRACKET
    STUD ATTACHING
    STUD, (1.5 In.), ALTERNATOR BRACKET
    STUD ATTACHING
  • 36
    12-20553 WASHER, (.406 x .734 x .063), BRACKET STUD
    STUD ATTACHING
    WASHER, (.406 x .734 x .063), BRACKET STUD
    STUD ATTACHING
  • 37
    11-23161 NUT, (.375-24), BRACKET STUD
    STUD ATTACHING
    NUT, (.375-24), BRACKET STUD
    STUD ATTACHING
  • 38
    10-865982005 SCREW, (.375-16 x 1.00) , BRACKET
    SCREW, (.375-16 x 1.00) , BRACKET
