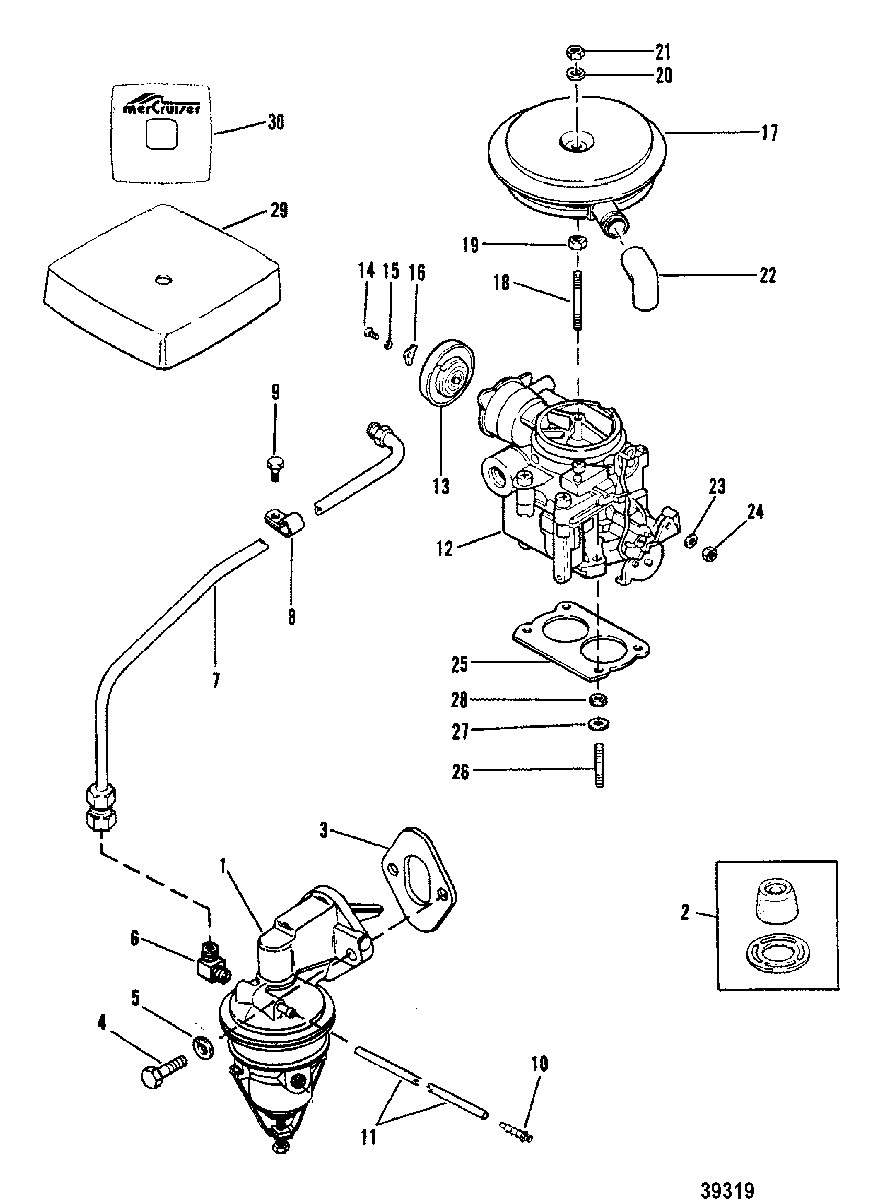

FUEL PUMP AND CARBURETOR(NEW DESIGN) для Mercruiser - 120 GM 153 I/L4 1983-1986 6229718 THRU 0B531853

  • №
    Артикул
    Название
  • 1
    8M0073435 PUMP ASSEMBLY, Fuel, Fuel
    PUMP ASSEMBLY, Fuel, Fuel
  • 2
    35-8M0046752 FILTER
    FILTER
  • 3
    27-8M0108647 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 4
    10-31984 SCREW, (.312-18 x 1.375), FUEL PUMP TO BLOCK
    SCREW, (.312-18 x 1.375), FUEL PUMP TO BLOCK
  • 5
    13-39107 LOCKWASHER, (.312-24), FUEL PUMP SCREW
    LOCKWASHER, (.312-24), FUEL PUMP SCREW
  • 6
    22-43276 ELBOW, (90 Degree), FUEL LINE
    ELBOW, (90 Degree), FUEL LINE
  • 7
    32-147971 LINE, Fuel-PUMP TO CARBURETOR
    LINE, Fuel-PUMP TO CARBURETOR
  • 8
    54-65653 CLIP, FUEL LINE TO ROCKER COVER
    CLIP, FUEL LINE TO ROCKER COVER
  • 9
    10-32079 SCREW, (.250-20 x .560), CLIP TO ROCKER COVER
    SCREW, (.250-20 x .560), CLIP TO ROCKER COVER
  • 10
    22-54090 ELBOW, VENT TUBE TO CARBURETOR
    ELBOW, VENT TUBE TO CARBURETOR
  • 11
    32-7381567 HOSE, (34.00 Inches Bulk), VENT
    HOSE, (34.00 Inches Bulk), VENT
  • 12
    3310-860070A2 CARBURETOR ASSEMBLY (MERCARB)
    CARBURETOR ASSEMBLY (MERCARB)
  • 13
    70125A02 COVER, CHOKE
    COVER, CHOKE
  • 14
    10-33047 SCREW, CHOKE COVER TO CHOKE HOUSING
    SCREW, CHOKE COVER TO CHOKE HOUSING
  • 15
    13-26995 LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
    LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
  • 16
    54-33036 RETAINER, CHOKE COVER SCREW
    RETAINER, CHOKE COVER SCREW
  • 17
    805016A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 18
    16-70878 STUD, (1/4 x 2.125), FLAME ARRESTOR
    OLD DESIGN
    STUD, (1/4 x 2.125), FLAME ARRESTOR
    OLD DESIGN
  • 19
    11-8267139 NUT, FLAME ARRESTOR SCREW
    OLD DESIGN
    NUT, FLAME ARRESTOR SCREW
    OLD DESIGN
  • 20
    12-86400 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 21
    11-826709109 NUT, (.250-28), FLAME ARRESTOR STUD (TOP)
    NUT, (.250-28), FLAME ARRESTOR STUD (TOP)
  • 22
    32-807202 HOSE, VENT
    HOSE, VENT
  • 23
    12-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLE
    WASHER, (.203 x .500 x .032), THROTTLE CABLE
  • 24
    11-8267086 NUT, (#10-32), THROTTLE CABLE TO CARBURETOR
    NUT, (#10-32), THROTTLE CABLE TO CARBURETOR
  • 25
    27-8079821 GASKET, CARBURETOR (MERCARB)
    GASKET, CARBURETOR (MERCARB)
  • 26
    16-8M0113177 STUD, (.312 x 1.500), CARBURETOR
    STUD, (.312 x 1.500), CARBURETOR
  • 27
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 28
    11-862902 NUT, (.9375-24), CARBURETOR STUD
    NUT, (.9375-24), CARBURETOR STUD
  • 18
    16-18020 STUD, FLAME ARRESTOR
    NEW DESIGN
    STUD, FLAME ARRESTOR
    NEW DESIGN
  • 29
    17878A5 COVER, Carburetor - FLAME ARRESTOR
    NEW DESIGN
    COVER, Carburetor - FLAME ARRESTOR
    NEW DESIGN
  • 30
    37-1372350 DECAL, COVER (2.5L)
    NEW DESIGN
    DECAL, COVER (2.5L)
    NEW DESIGN
  • 30
    37-1372351 DECAL, COVER (3.0L)
    NEW DESIGN
    DECAL, COVER (3.0L)
    NEW DESIGN
  • 30
    37-1372356 DECAL, COVER (3.0L-DIGITAL IGNITION)
    DECAL, COVER (3.0L-DIGITAL IGNITION)
