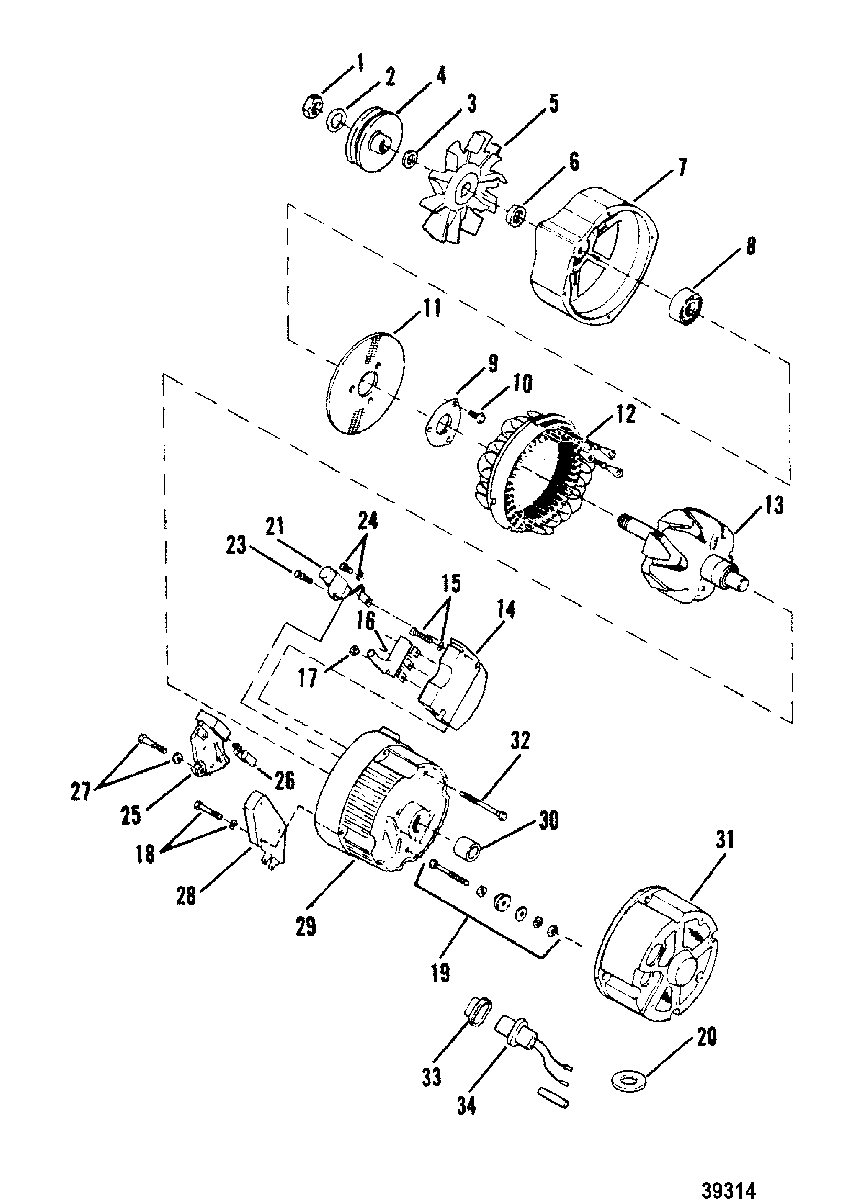

ALTERNATOR(DELCO-REMY #1105064) для Mercruiser - 120 GM 153 I/L4 1983-1986 6229718 THRU 0B531853

  • №
    Артикул
    Название
  • -
    N.S.S. Not Sold Separate, ALTERNATOR (DELCO-REMY #1105064)(42 AMP)
    Not Sold Separate, ALTERNATOR (DELCO-REMY #1105064)(42 AMP)
  • 1
    N.S.S. Not Sold Separate, NUT, FAN AND PULLEY TO ROTOR (DELCO-REMY #1915172)
    Not Sold Separate, NUT, FAN AND PULLEY TO ROTOR (DELCO-REMY #1915172)
  • 2
    N.S.S. Not Sold Separate, LOCKWASHER, FAN/PULLEY NUT (DELCO-REMY #1941978)
    Not Sold Separate, LOCKWASHER, FAN/PULLEY NUT (DELCO-REMY #1941978)
  • 3
    90667 COLLAR, SHAFT - BETWEEN FAN AND PULLEY
    COLLAR, SHAFT - BETWEEN FAN AND PULLEY
  • 4
    90669 PULLEY, DRIVE END FRAME
    PULLEY, DRIVE END FRAME
  • 5
    N.S.S. Not Sold Separate, FAN, DRIVE END FRAME (DELCO-REMY #800594)
    Not Sold Separate, FAN, DRIVE END FRAME (DELCO-REMY #800594)
  • 6
    N.S.S. Not Sold Separate, COLLAR, DRIVE END FRAME (DELCO-REMY #1978250)
    Not Sold Separate, COLLAR, DRIVE END FRAME (DELCO-REMY #1978250)
  • 7
    42792 FRAME, DRIVE END
    FRAME, DRIVE END
  • 8
    30-90665 BEARING, Ball, DRIVE END FRAME
    BEARING, Ball, DRIVE END FRAME
  • 9
    90666 PLATE, BALL BEARING RETAINER
    PLATE, BALL BEARING RETAINER
  • 10
    N.S.S. Not Sold Separate, SCREW, RETAINER PLATE (DELCO-REMY #1965104)
    Not Sold Separate, SCREW, RETAINER PLATE (DELCO-REMY #1965104)
  • 11
    90668 SCREEN, Drive End Frame
    SCREEN, Drive End Frame
  • 12
    42787 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 13
    42786 ROTOR
    ROTOR
  • 14
    42789 FITTING
    FITTING
  • 15
    10-42790 SCREW, RECTIFIER BRIDGE
    SCREW, RECTIFIER BRIDGE
  • 16
    42788 DIODE TRIO
    DIODE TRIO
  • 17
    11-21923T NUT, ( 8-32), DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
    NUT, ( 8-32), DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
  • 18
    N.S.S. Not Sold Separate, SCREW, BRUSH HOLDER - GROUND (DELCO-REMY #1975737)
    Not Sold Separate, SCREW, BRUSH HOLDER - GROUND (DELCO-REMY #1975737)
  • 19
    60692 TERMINAL PACKAGE, BATTERY
    TERMINAL PACKAGE, BATTERY
  • 20
    12-56947 WASHER, SPONGE NEOPRENE (1-1/4" O.D.)
    WASHER, SPONGE NEOPRENE (1-1/4" O.D.)
  • 21
    58296 CONDENSER
    CONDENSER
  • 23
    10-60693 SCREW, CONDENSER
    SCREW, CONDENSER
  • 24
    10-60693 SCREW, CONDENSER LEAD TERMINAL
    SCREW, CONDENSER LEAD TERMINAL
  • 25
    42791 HOLDER AND BRUSH ASSEMBLY
    HOLDER AND BRUSH ASSEMBLY
  • 26
    24-56943 SPRING, TENSION - BRUSHES
    SPRING, TENSION - BRUSHES
  • 27
    10-60691 SCREW, BRUSH HOLDER - INSULATED
    SCREW, BRUSH HOLDER - INSULATED
  • 28
    78385 REGULATOR, Voltage, TRANSISTOR
    REGULATOR, Voltage, TRANSISTOR
  • 29
    N.S.S. Not Sold Separate, FRAME ASSEMBLY, SLIP RING END (DELCO-REMY #1984460)
    Not Sold Separate, FRAME ASSEMBLY, SLIP RING END (DELCO-REMY #1984460)
  • 30
    31-60690 BEARING, Roller, SLIP RING END FRAME
    BEARING, Roller, SLIP RING END FRAME
  • 31
    90670 COVER ASSEMBLY, SLIP RING END
    COVER ASSEMBLY, SLIP RING END
  • 32
    10-33322 BOLT, THRU
    BOLT, THRU
  • 33
    78386 BOOT, VOLTAGE REGULATOR TERMINALS
    BOOT, VOLTAGE REGULATOR TERMINALS
  • 34
    90671 CONNECTOR
    CONNECTOR
