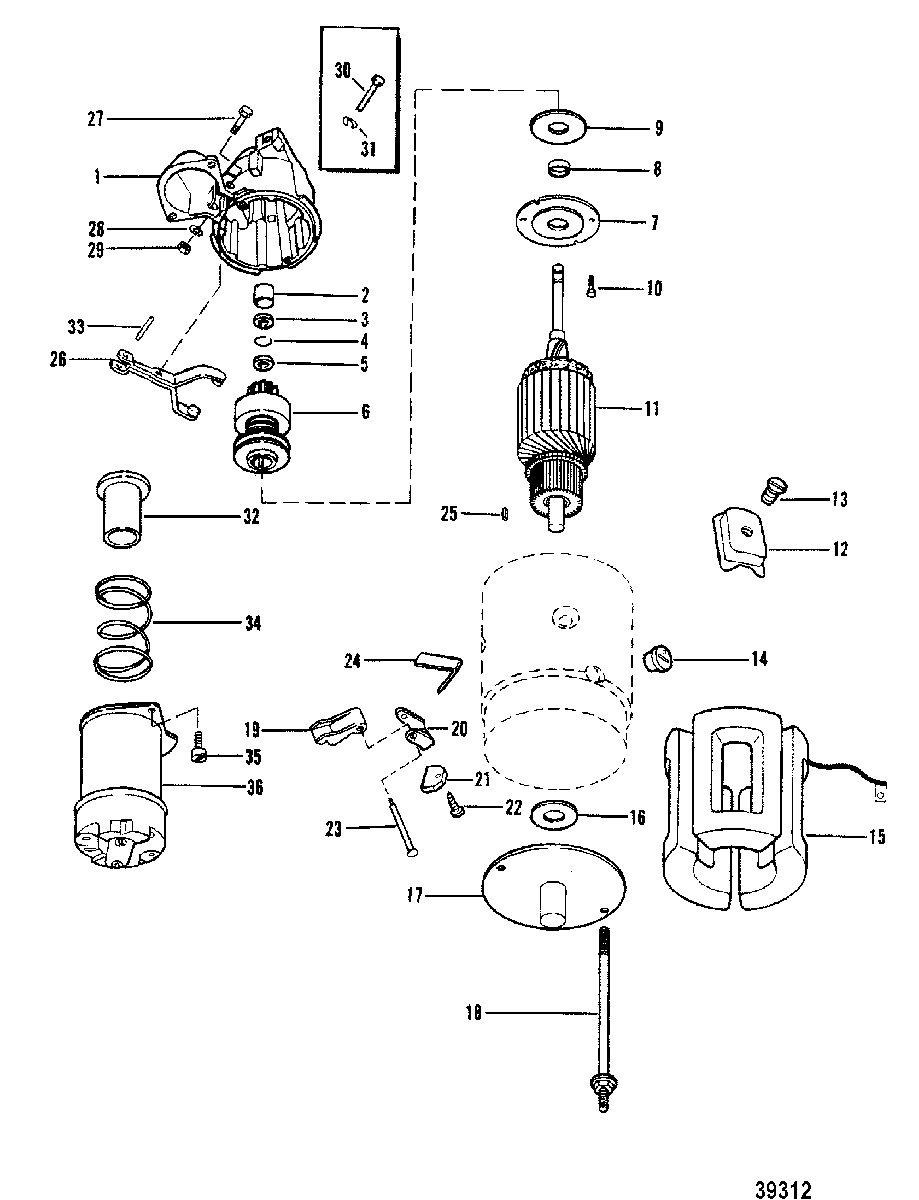

STARTER MOTOR для Mercruiser - 120 GM 153 I/L4 1983-1986 6229718 THRU 0B531853

  • №
    Артикул
    Название
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    71696 HOUSING, DRIVE END
    HOUSING, DRIVE END
  • 2
    23-33369 BUSHING, DRIVE END HOUSING
    BUSHING, DRIVE END HOUSING
  • 3
    23-809457 COLLAR, THRUST
    COLLAR, THRUST
  • 4
    53-33290 RING, Retaining, PINION STOP COLLAR
    RING, Retaining, PINION STOP COLLAR
  • 5
    33291 COLLAR, PINION STOP
    COLLAR, PINION STOP
  • 6
    79205T DRIVE ASSEMBLY, CLUTCH
    DRIVE ASSEMBLY, CLUTCH
  • 7
    N.S.S. Not Sold Separate, PLATE, BEARING (DELCO-RENY #1956939)
    Not Sold Separate, PLATE, BEARING (DELCO-RENY #1956939)
  • 8
    23-71694 BUSHING, BEARING PLATE
    BUSHING, BEARING PLATE
  • 9
    12-68614 WASHER, BEARING PLATE
    WASHER, BEARING PLATE
  • 10
    10-79209 SCREW, BEARING PLATE
    SCREW, BEARING PLATE
  • 11
    75665 ARMATURE
    ARMATURE
  • 11
    71693 ARMATURE
    ARMATURE
  • 12
    N.S.S. Not Sold Separate, SHOE, POLE (DELCO-REMY #1931129)
    Not Sold Separate, SHOE, POLE (DELCO-REMY #1931129)
  • 12
    N.S.S. Not Sold Separate, SHOE, POLE (DELCO-REMY #810601)
    Not Sold Separate, SHOE, POLE (DELCO-REMY #810601)
  • 13
    N.S.S. Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL(DELCO-RENY #1968396)
    Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL(DELCO-RENY #1968396)
  • 14
    25-79208 GROMMET, FIELD COIL - FIELD FRAME
    GROMMET, FIELD COIL - FIELD FRAME
  • 15
    79212 COIL ASSEMBLY
    COIL ASSEMBLY
  • 15
    75664 COIL ASSEMBLY
    COIL ASSEMBLY
  • 16
    12-33258 WASHER, Leather, COMMUTATOR END FRAME
    WASHER, Leather, COMMUTATOR END FRAME
  • 17
    79211 FRAME, COMMUTATOR END - LOWER
    FRAME, COMMUTATOR END - LOWER
  • 18
    N.S.S. Not Sold Separate, THRU BOLT (DELCO-REMY #1939970)
    Not Sold Separate, THRU BOLT (DELCO-REMY #1939970)
  • 18
    N.S.S. Not Sold Separate, THRU BOLT -W/EXTENSION (DELCO-REMY #194111)
    Not Sold Separate, THRU BOLT -W/EXTENSION (DELCO-REMY #194111)
  • 19
    33284 HOLDER, INSULATED-FIELD FRANE BRUSH
    HOLDER, INSULATED-FIELD FRANE BRUSH
  • 20
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 21
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 22
    N.S.S. Not Sold Separate, SCREW, BRUSH LEAD (DELCO-REMY #443527)
    Not Sold Separate, SCREW, BRUSH LEAD (DELCO-REMY #443527)
  • 23
    33294 SUPPORT, GROUND AND INSULATED HOLDERS
    SUPPORT, GROUND AND INSULATED HOLDERS
  • 24
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 25
    N.S.S. Not Sold Separate, DOWEL PIN-FIELD FRANE (DELCO-REMY #1985696)
    Not Sold Separate, DOWEL PIN-FIELD FRANE (DELCO-REMY #1985696)
  • 26
    33297 LEVER, SHIFT
    EARLY STYLE
    LEVER, SHIFT
    EARLY STYLE
  • 26
    71698 LEVER, SHIFT
    NEW STYLE
    LEVER, SHIFT
    NEW STYLE
  • 27
    N.S.S. Not Sold Separate, SHIFT LEVER (DELCO-REMY #1814529)
    EARLY STYLE
    Not Sold Separate, SHIFT LEVER (DELCO-REMY #1814529)
    EARLY STYLE
  • 28
    12-68615 WASHER, SHIFT LEVER STUD
    EARLY STYLE
    WASHER, SHIFT LEVER STUD
    EARLY STYLE
  • 29
    11-26484 NUT, (.312-18), SHIFT LEVER STUD
    EARLY STYLE
    NUT, (.312-18), SHIFT LEVER STUD
    EARLY STYLE
  • 30
    N.S.S. Not Sold Separate, PIN (DELCO-REMY #1945804)
    NEW STYLE
    Not Sold Separate, PIN (DELCO-REMY #1945804)
    NEW STYLE
  • 31
    53-33354 RING, Retaining
    NEW STYLE
    RING, Retaining
    NEW STYLE
  • 32
    33317 PLUNGER, SHIFT LEVER
    PLUNGER, SHIFT LEVER
  • 33
    17-79207 PIN, PLUNGER TO SHIFT LEVER
    PIN, PLUNGER TO SHIFT LEVER
  • 34
    24-46889 SPRING, PLUNGER RETURN
    SPRING, PLUNGER RETURN
  • 35
    N.S.S. Not Sold Separate, SCREW, SOLENOID SWITCH (DELCO-RENY #9413260)
    Not Sold Separate, SCREW, SOLENOID SWITCH (DELCO-RENY #9413260)
  • 36
    13037 SOLENOID SWITCH (4-1/4" LONG)
    SOLENOID SWITCH (4-1/4" LONG)
  • 36
    89-18080 SOLENOID SWITCH, (3.625)
    SOLENOID SWITCH, (3.625)
