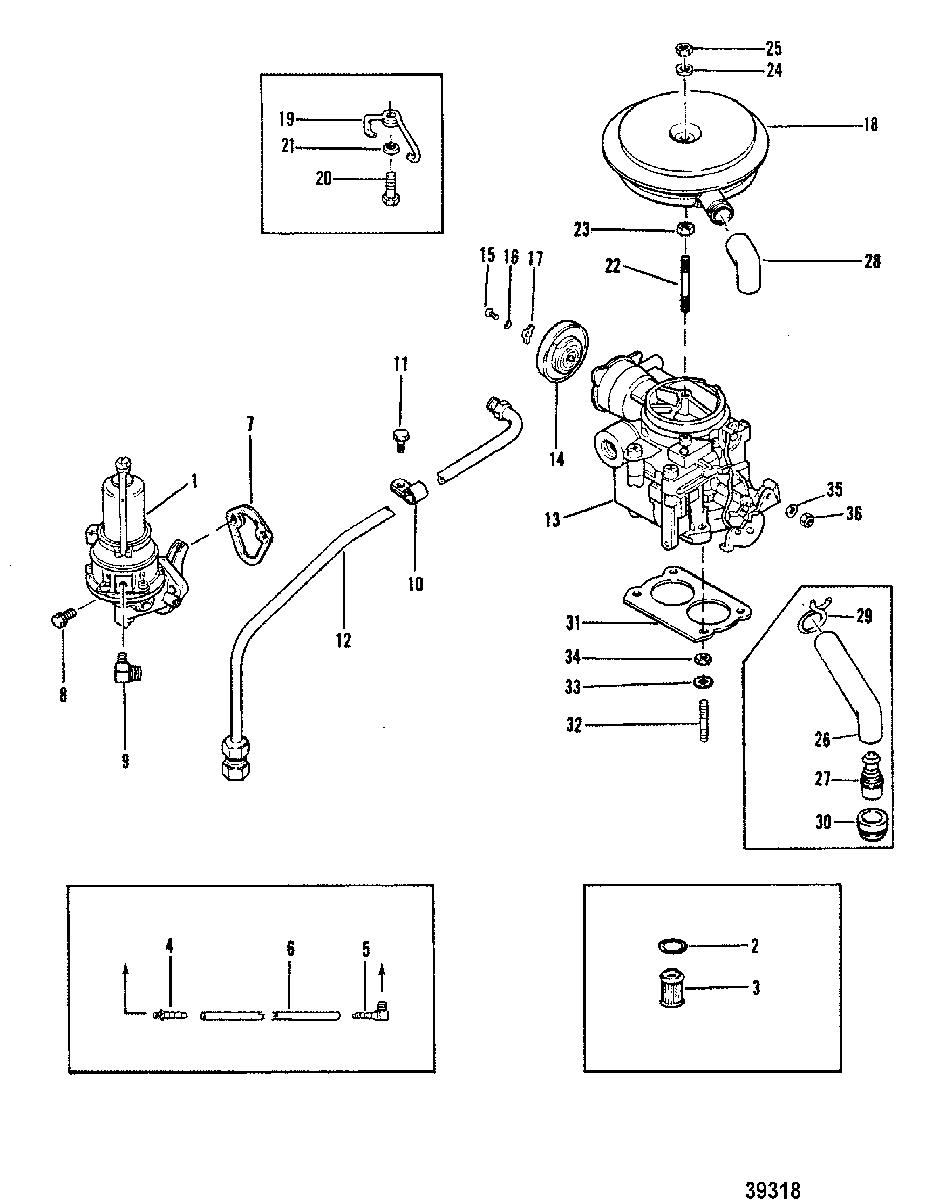

FUEL PUMP AND CARBURETOR(OLD DESIGN) для Mercruiser - 120 GM 153 I/L4 1983-1986 6229718 THRU 0B531853

  • №
    Артикул
    Название
  • 1
    86234A05 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    49089A1 DIAPHRAGM KIT, FUEL PUMP
    DIAPHRAGM KIT, FUEL PUMP
  • 3
    35-49088Q2 FILTER, FUEL - FUEL PUMP
    FILTER, FUEL - FUEL PUMP
  • 4
    22-73816 CONNECTOR, VENT TUBE TO CARBURETOR
    (ROCHESTER CARB.)
    CONNECTOR, VENT TUBE TO CARBURETOR
    (ROCHESTER CARB.)
  • 4
    22-54090 ELBOW, VENT TUBE TO CARBURETOR
    (MERCARB)
    ELBOW, VENT TUBE TO CARBURETOR
    (MERCARB)
  • 5
    22-73817 CONNECTOR, (90 Degree), VENT TUBE TO FUEL PUMP
    CONNECTOR, (90 Degree), VENT TUBE TO FUEL PUMP
  • 6
    32-7381567 HOSE, (34.00 Inches Bulk), VENT
    HOSE, (34.00 Inches Bulk), VENT
  • 7
    27-34213 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 8
    10-45488 BOLT, (7/8 In.), FUEL PUMP TO CYLINDER BLOCK (3/4")
    BOLT, (7/8 In.), FUEL PUMP TO CYLINDER BLOCK (3/4")
  • 9
    22-98646 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 10
    54-65653 CLIP, FUEL LINE TO ROCKER COVER
    CLIP, FUEL LINE TO ROCKER COVER
  • 11
    10-32079 SCREW, (.250-20 x .560), CLIP TO ROCKER COVER
    SCREW, (.250-20 x .560), CLIP TO ROCKER COVER
  • 12
    32-41102A1 LINE ASSEMBLY, Fuel, FUEL PUMP TO CARBURETOR
    LINE ASSEMBLY, Fuel, FUEL PUMP TO CARBURETOR
  • 13
    1347-818621R02 CARBURETOR ASSEMBLY
    (ROCHESTER)
    CARBURETOR ASSEMBLY
    (ROCHESTER)
  • 13
    3310-860070A2 CARBURETOR ASSEMBLY
    (MERCARB)
    CARBURETOR ASSEMBLY
    (MERCARB)
  • 14
    70125A02 COVER, CHOKE
    COVER, CHOKE
  • 15
    10-33047 SCREW, CHOKE COVER OT CHOKE HOUSING
    SCREW, CHOKE COVER OT CHOKE HOUSING
  • 16
    13-26995 LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
    LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
  • 17
    54-33036 RETAINER, CHOKE COVER SCREW
    RETAINER, CHOKE COVER SCREW
  • 18
    86270 FLAME ARRESTOR
    ROCHESTER CARB
    FLAME ARRESTOR
    ROCHESTER CARB
  • 18
    805016A1 FLAME ARRESTOR
    MERCARB
    FLAME ARRESTOR
    MERCARB
  • 19
    52734 BAIL, FLAME ARRESTOR TO CARBURETOR
    ROCHESTER CARB
    BAIL, FLAME ARRESTOR TO CARBURETOR
    ROCHESTER CARB
  • 20
    10-65027 SCREW, (.250-28 x 1.00), FLAME ARRESTOR TO CARB. BAIL (1")
    ROCHESTER CARB
    SCREW, (.250-28 x 1.00), FLAME ARRESTOR TO CARB. BAIL (1")
    ROCHESTER CARB
  • 21
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, FLAME ARRESTOR SCREW
    ROCHESTER CARB
    WASHER, (.281 x .500 x .060) Stainless Steel, FLAME ARRESTOR SCREW
    ROCHESTER CARB
  • 22
    16-70878 STUD, (1/4 x 2.125), FLAME ARRESTOR
    MERCARB
    STUD, (1/4 x 2.125), FLAME ARRESTOR
    MERCARB
  • 23
    11-8267139 NUT, FLAME ARRESTOR SCREW
    NUT, FLAME ARRESTOR SCREW
  • 24
    12-86400 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 25
    11-826709109 NUT, (.250-28), FLAME ARRESTOR STUD (TOP)
    NUT, (.250-28), FLAME ARRESTOR STUD (TOP)
  • 26
    32-62060 HOSE, VENT
    USE WITH STRAIGHT CONNECTOR
    HOSE, VENT
    USE WITH STRAIGHT CONNECTOR
  • 26
    32-8M0062669 HOSE, VENT
    USE WITH 90 CONNECTOR
    HOSE, VENT
    USE WITH 90 CONNECTOR
  • 27
    47957 CONNECTOR, VENT HOSE
    USE WITH STRAIGHT CONNECTOR
    CONNECTOR, VENT HOSE
    USE WITH STRAIGHT CONNECTOR
  • 27
    97850T ELBOW, 90 Degree, VENT HOSE
    USE WITH 90 CONNECTOR
    ELBOW, 90 Degree, VENT HOSE
    USE WITH 90 CONNECTOR
  • 28
    32-807202 HOSE, VENT
    (NEW DESIGN)
    HOSE, VENT
    (NEW DESIGN)
  • 29
    54-64648 CLAMP, HOSE ATTACHING
    OLD DESIGN
    CLAMP, HOSE ATTACHING
    OLD DESIGN
  • 30
    23-8M0071559 GROMMET, ROCKER COVER
    OLD DESIGN
    GROMMET, ROCKER COVER
    OLD DESIGN
  • 31
    27-64692 GASKET, CARBURETOR
    ROCHESTER CARB
    GASKET, CARBURETOR
    ROCHESTER CARB
  • 31
    27-8079821 GASKET, CARBURETOR
    MERCARB
    GASKET, CARBURETOR
    MERCARB
  • 32
    16-8M0113177 STUD, (.312 x 1.500), CARBURETOR
    STUD, (.312 x 1.500), CARBURETOR
  • 33
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 34
    11-862902 NUT, (.9375-24), CARBURETOR STUD
    NUT, (.9375-24), CARBURETOR STUD
  • 35
    12-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLE
    WASHER, (.203 x .500 x .032), THROTTLE CABLE
  • 36
    11-8267086 NUT, (#10-32), THROTTLE CABLE TO CARBURETOR
    NUT, (#10-32), THROTTLE CABLE TO CARBURETOR
