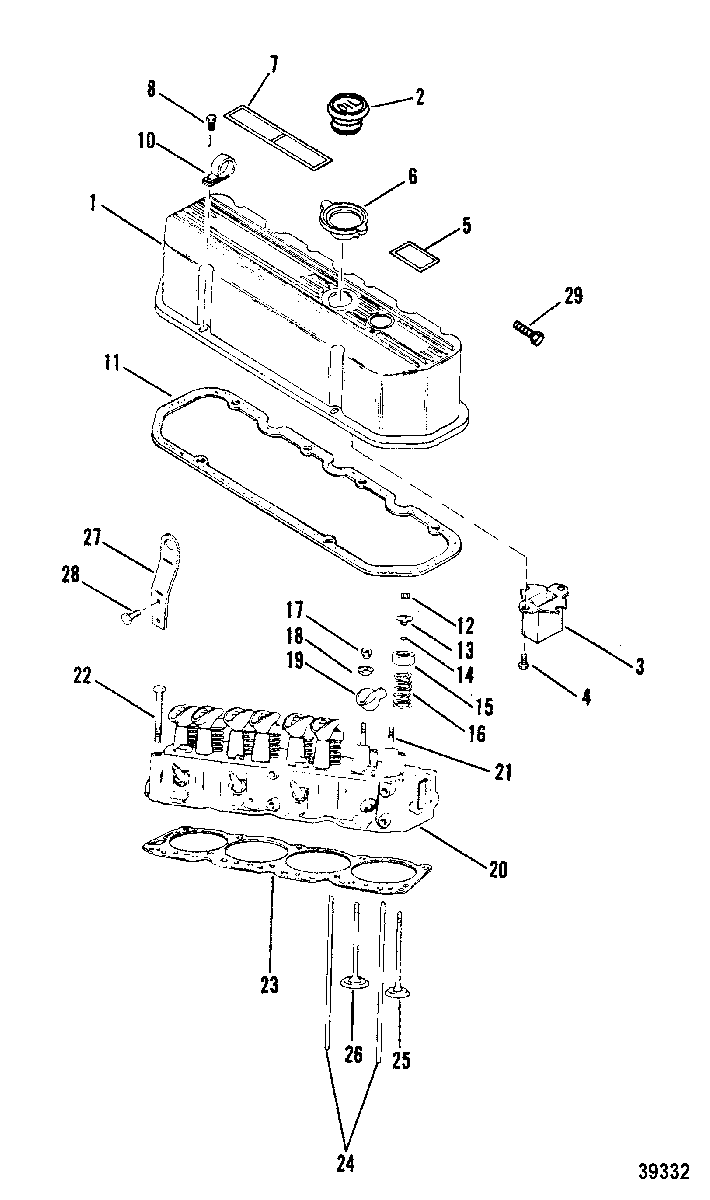

CYLINDER HEAD AND ROCKER COVER(120-2.5L/153 CID) для Mercruiser - 120 GM 153 I/L4 1983-1986 6229718 THRU 0B531853

  • №
    Артикул
    Название
  • 1
    65635A16 COVER, ROCKER
    COVER, ROCKER
  • 2
    36-807152 CAP, Filler
    CAP, Filler
  • 3
    57638T BAFFLE, ROCKER COVER
    OLD DESIGN
    BAFFLE, ROCKER COVER
    OLD DESIGN
  • 4
    10-62568 SCREW, (#10-16 x .375), BAFFLE TO ROCKER COVER
    OLD DESIGN
    SCREW, (#10-16 x .375), BAFFLE TO ROCKER COVER
    OLD DESIGN
  • 5
    37-77253 DECAL, WAVES
    OLD DESIGN
    DECAL, WAVES
    OLD DESIGN
  • 6
    17345 CAP ASSEMBLY, Oil Filler
    OLD DESIGN
    CAP ASSEMBLY, Oil Filler
    OLD DESIGN
  • 7
    37-77246 DECAL, ROCKER COVER
    (120)
    DECAL, ROCKER COVER
    (120)
  • 7
    37-121151 DECAL, ROCKER COVER
    (120 ALPHA ONE)
    DECAL, ROCKER COVER
    (120 ALPHA ONE)
  • 7
    37-121154 DECAL, ROCKER COVER
    (2.5 LITRE)
    DECAL, ROCKER COVER
    (2.5 LITRE)
  • 8
    10-65746 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 10
    54-97224 J CLIP, INLET HOSE - ROCKER COVER SCREW
    J CLIP, INLET HOSE - ROCKER COVER SCREW
  • 11
    27-851040 GASKET, ROCKER COVER TO CYLINDER HEAD
    GASKET, ROCKER COVER TO CYLINDER HEAD
  • 12
    28-547971 KEY, VALVE STEM (2 PER VALVE)
    KEY, VALVE STEM (2 PER VALVE)
  • 13
    FI1100604 CAP, VALVE STEM
    CAP, VALVE STEM
  • 14
    26-34217 SEAL, VALVE SPRING CAP
    SEAL, VALVE SPRING CAP
  • 15
    34518001 SHIELD, VALVE SPRING CAP
    SHIELD, VALVE SPRING CAP
  • 16
    24-35214 SPRING, VALVE
    SPRING, VALVE
  • 17
    11-34516 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 18
    59340 BALL, Rocker Arm, ROCKER VALVE ARM STUD
    BALL, Rocker Arm, ROCKER VALVE ARM STUD
  • 19
    34519 ARM KIT, ROCKER VALVE
    ARM KIT, ROCKER VALVE
  • 20
    938-8M0115134 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 21
    16-34521 STUD, VLAVE ROCKER ARM
    (.013 O.S.)
    STUD, VLAVE ROCKER ARM
    (.013 O.S.)
  • 21
    16-34522 STUD, VALVE ROCKER ARM
    (.003 O.S.)
    STUD, VALVE ROCKER ARM
    (.003 O.S.)
  • 22
    10-34510 BOLT, CYLINDER HEAD TO CYLINDER BLOCK
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK
  • 23
    27-342731 GASKET, CYLINDER HEAD TO CYLINDER BLOCK
    GASKET, CYLINDER HEAD TO CYLINDER BLOCK
  • 24
    34532 PUSH ROD, PUSH - VALVE
    PUSH ROD, PUSH - VALVE
  • 25
    62421 VALVE, INLET
    (STANDARD STEM)
    VALVE, INLET
    (STANDARD STEM)
  • 25
    62422 VALVE, INLET
    (.015 O.S. SYSTEM)
    VALVE, INLET
    (.015 O.S. SYSTEM)
  • 26
    85803 VALVE, EXHAUST
    (STANDARD STEM)
    VALVE, EXHAUST
    (STANDARD STEM)
  • 26
    49076 VALVE, EXHAUST
    (.015 O.S. SYSTEM)
    VALVE, EXHAUST
    (.015 O.S. SYSTEM)
  • 27
    67850 LIFTING EYE, CYLINDER HEAD
    LIFTING EYE, CYLINDER HEAD
  • 28
    10-54528 SCREW, LIFTING EYE ATTACHING
    SCREW, LIFTING EYE ATTACHING
  • 29
    10-96430 SHOULDER SCREW, SHOULDER - CABLE ATTACHING
    SHOULDER SCREW, SHOULDER - CABLE ATTACHING
