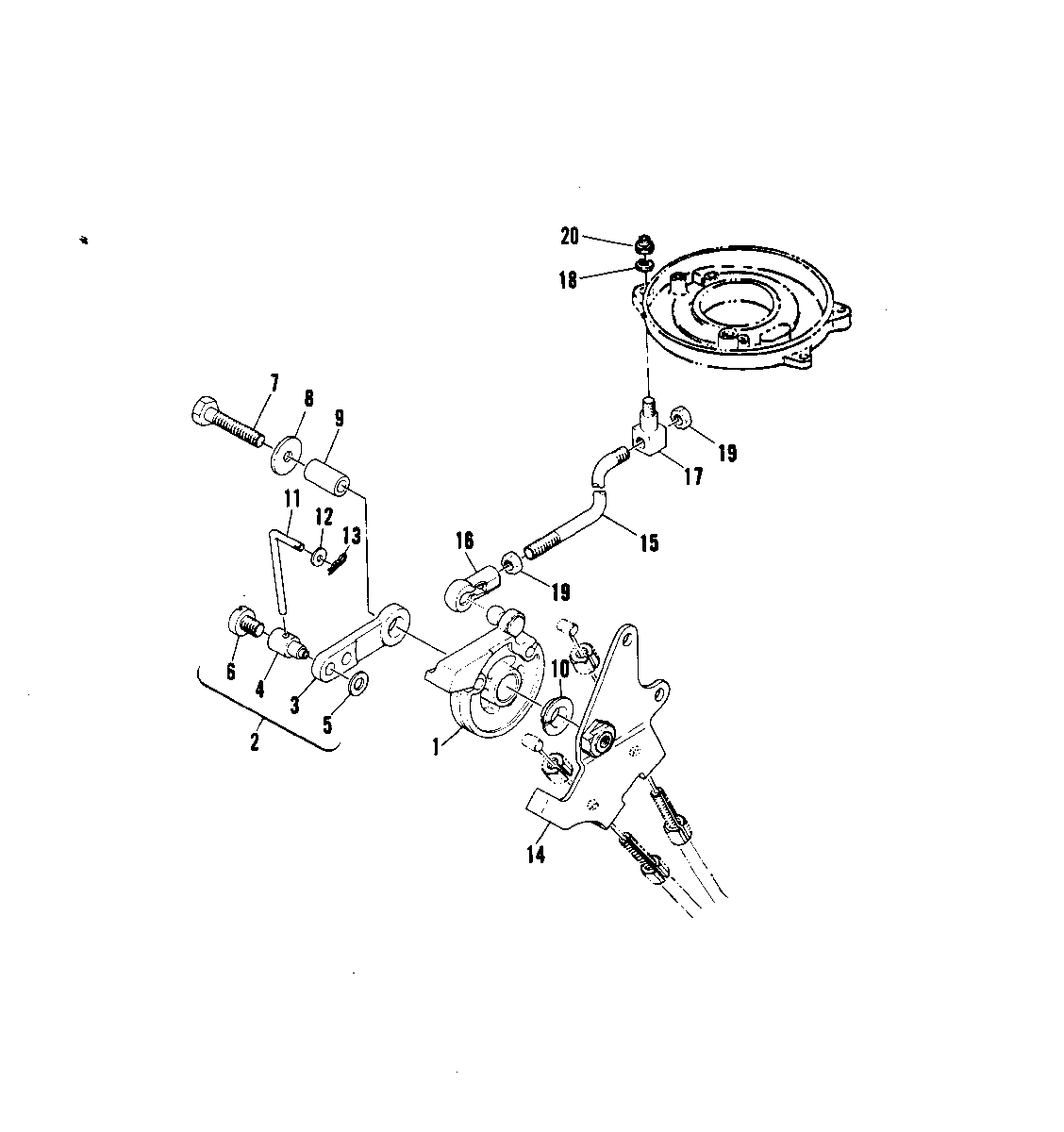

THROTTLE LINKAGE для Mariner - W15 662-001846 AND UP

  • №
    Артикул
    Название
  • 1
    81236M CAM, MAGNETO CONTROL
    CAM, MAGNETO CONTROL
  • 2
    81229M THROTTLE LEVER ASS'Y
    THROTTLE LEVER ASS'Y
  • 3
    81230M LEVER, THROTTLE
    LEVER, THROTTLE
  • 4
    81226M BUSHING, THROTTLE LINK ROD
    BUSHING, THROTTLE LINK ROD
  • 5
    12-82207M WASHER
    WASHER
  • 6
    10-19172M SCREW
    SCREW
  • 7
    10-83285M BOLT
    BOLT
  • 8
    12-81969M WASHER
    WASHER
  • 9
    23-81928M COLLAR
    COLLAR
  • 10
    23-81946M BUSHING, CAM
    BUSHING, CAM
  • 11
    81227M LINK ROD, THROTTLE
    LINK ROD, THROTTLE
  • 12
    12-82933M WASHER
    WASHER
  • 13
    18-82050M PIN
    PIN
  • 14
    81214M BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 15
    81235M ROD, MAGNETO CONTROL
    ROD, MAGNETO CONTROL
  • 16
    16715M LINK, CONTROL ROD
    SERIAL 00005135-09999999
    LINK, CONTROL ROD
    SERIAL 00005135-09999999
  • 16
    16715M LINK, CONTROL ROD
    SERIAL 00000000-00005134
    LINK, CONTROL ROD
    SERIAL 00000000-00005134
  • 17
    80629M SWIVEL, MAGNETO CONTROL LEVER
    SWIVEL, MAGNETO CONTROL LEVER
  • 18
    12-82211M WASHER
    WASHER
  • 19
    11-82388M NUT
    NUT
  • 20
    11-81782M NUT, SELF-LOCKING
    NUT, SELF-LOCKING
