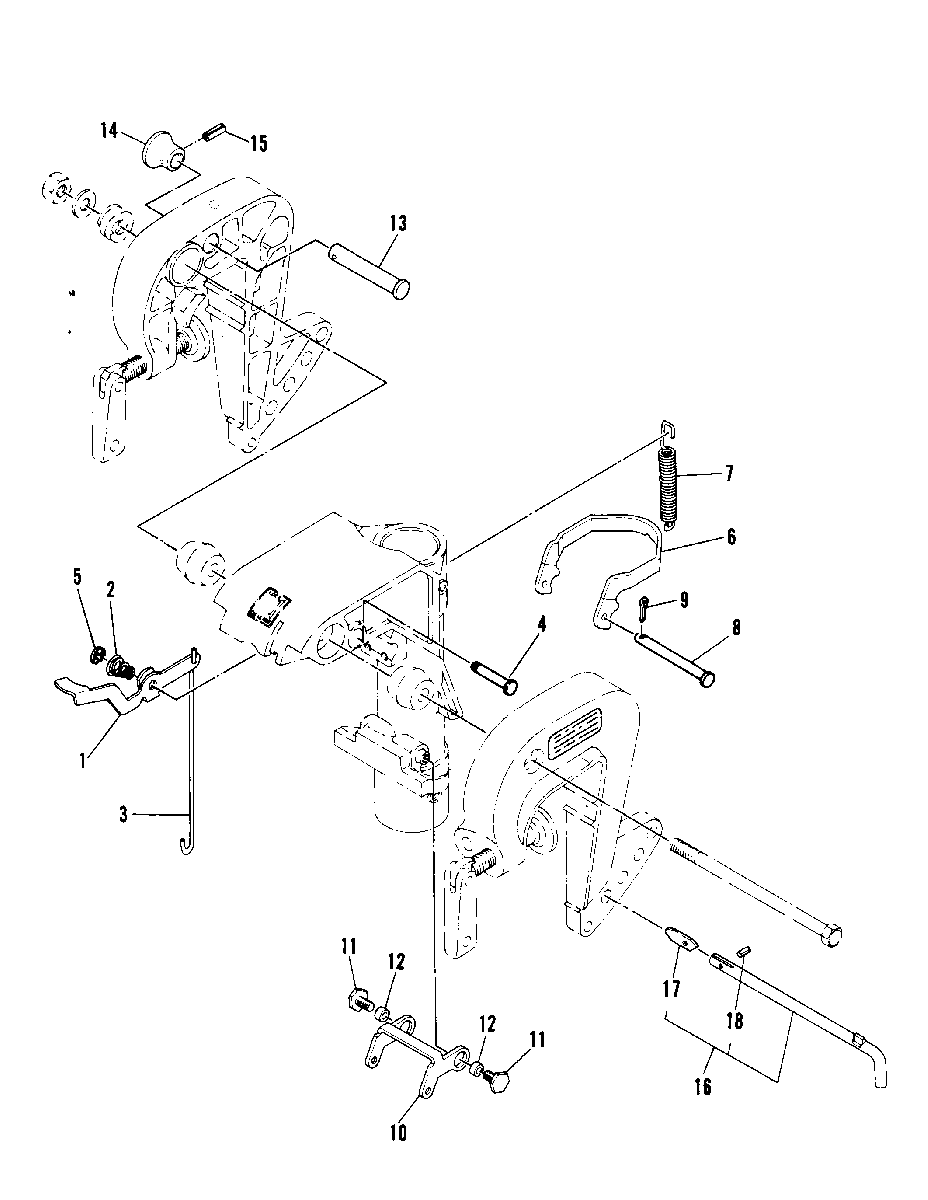

REVERSE TILT LOCK для Mariner - W15 662-001846 AND UP

  • №
    Артикул
    Название
  • 1
    82880M LEVER, LOCK/RELEASE
    LEVER, LOCK/RELEASE
  • 2
    24-82098M SPRING, LEVER RETURN
    SPRING, LEVER RETURN
  • 3
    84494M ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 4
    17-18945M PIN
    PIN
  • 5
    53-82330M SNAP RING
    SNAP RING
  • 6
    80233M HOOK, REVERSE LOCK (REAR)
    HOOK, REVERSE LOCK (REAR)
  • 7
    24-82104M SPRING, REVERSE LOCK
    SPRING, REVERSE LOCK
  • 8
    17-81881M PIN
    PIN
  • 9
    18-82125M PIN, COTTER
    PIN, COTTER
  • 10
    80234M HOOK, REVERSE LOCK (FRONT)
    HOOK, REVERSE LOCK (FRONT)
  • 11
    10-81702M SCREW
    SCREW
  • 12
    23-81966M COLLAR, REVERSE LOCK SCREW
    COLLAR, REVERSE LOCK SCREW
  • 13
    17-81150M SHAFT, TILT SHOP
    SHAFT, TILT SHOP
  • 14
    95426M KNOB, TILT STOP
    SERIAL 00004784-09999999
    KNOB, TILT STOP
    SERIAL 00004784-09999999
  • 14
    95426M KNOB, TILT STOP
    SERIAL 00000000-00004783
    KNOB, TILT STOP
    SERIAL 00000000-00004783
  • 15
    17-82148M PIN, ROLL
    PIN, ROLL
  • 16
    17-80266M TILT LOCK PIN ASS'Y
    TILT LOCK PIN ASS'Y
  • 17
    82857M STOPPER PLATE
    STOPPER PLATE
  • 18
    17-82144M PIN, ROLL
    PIN, ROLL
