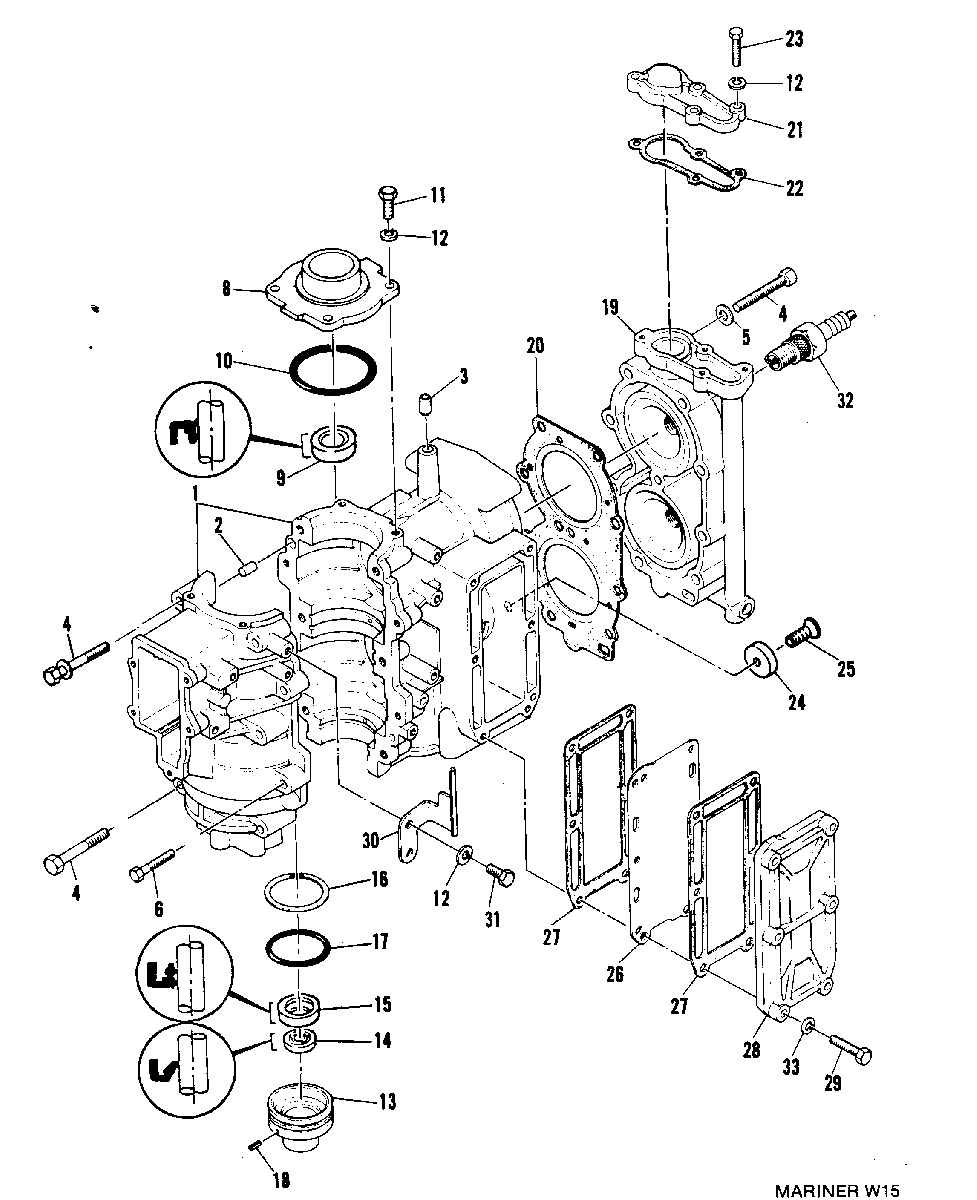

CRANKCASE AND CYLINDER HEAD для Mariner - W15 662-001846 AND UP

  • №
    Артикул
    Название
  • 1
    870-6820M CRANKCASE AND CYLINDER ASS'Y
    CRANKCASE AND CYLINDER ASS'Y
  • 2
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 3
    17-14214M PIN, DOWEL
    SERIAL 00004957-09999999
    PIN, DOWEL
    SERIAL 00004957-09999999
  • 3
    17-14214M PIN, DOWEL
    SERIAL 00000000-00004956
    PIN, DOWEL
    SERIAL 00000000-00004956
  • 4
    10-43091M BOLT, W/WASHER
    BOLT, W/WASHER
  • 6
    10-43092M BOLT, W/WASHER
    BOLT, W/WASHER
  • 8
    81215M HOUSING, OIL SEAL (UPPER)
    HOUSING, OIL SEAL (UPPER)
  • 9
    26-82247M OIL SEAL
    OIL SEAL
  • 10
    25-82285M O-RING, UPPER OIL SEAL HOUSING
    O-RING, UPPER OIL SEAL HOUSING
  • 11
    10-84058M BOLT
    BOLT
  • 12
    13-82212M LOCKWASHER
    LOCKWASHER
  • 13
    81216M HOUSING, OIL SEAL (LOWER)
    HOUSING, OIL SEAL (LOWER)
  • 14
    26-82165M OIL SEAL
    OIL SEAL
  • 15
    26-82232M OIL SEAL
    OIL SEAL
  • 16
    53-82340M SNAP RING, OIL SEAL HOUSING
    SNAP RING, OIL SEAL HOUSING
  • 17
    25-82276M O-RING, LOWER OIL SEAL HOUSING
    O-RING, LOWER OIL SEAL HOUSING
  • 18
    17-82139M PIN, ROLL
    PIN, ROLL
  • 19
    968-7172M HEAD, CYLINDER
    HEAD, CYLINDER
  • 20
    27-43093M GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 21
    81207M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 22
    27-81208M GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 23
    10-82405M BOLT
    BOLT
  • 24
    95609M ANODE
    SERIAL 00004784-09999999
    ANODE
    SERIAL 00004784-09999999
  • 24
    43107M ANODE
    SERIAL 00000000-00004783
    ANODE
    SERIAL 00000000-00004783
  • 25
    10-91772M SCREW
    SERIAL 00004957-09999999
    SCREW
    SERIAL 00004957-09999999
  • 25
    10-82791M SCREW
    SERIAL 00000000-00004956
    SCREW
    SERIAL 00000000-00004956
  • 26
    81222M COVER, EXHAUST (INNER)
    COVER, EXHAUST (INNER)
  • 27
    27-81223M GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 28
    81224M COVER, EXHAUST (OUTER)
    COVER, EXHAUST (OUTER)
  • 29
    10-83285M BOLT
    BOLT
  • 30
    81234M STOP, MAGNETO BASE
    STOP, MAGNETO BASE
  • 31
    10-84211M BOLT
    BOLT
  • 32
    33-8M0114739 SPARK PLUG, (AC M42FF)
    SPARK PLUG, (AC M42FF)
  • 33
    13-82212M LOCKWASHER
    LOCKWASHER
  • 33
    83785M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
  • 33
    27-43094M GASKET SET, POWERHEAD
    GASKET SET, POWERHEAD
