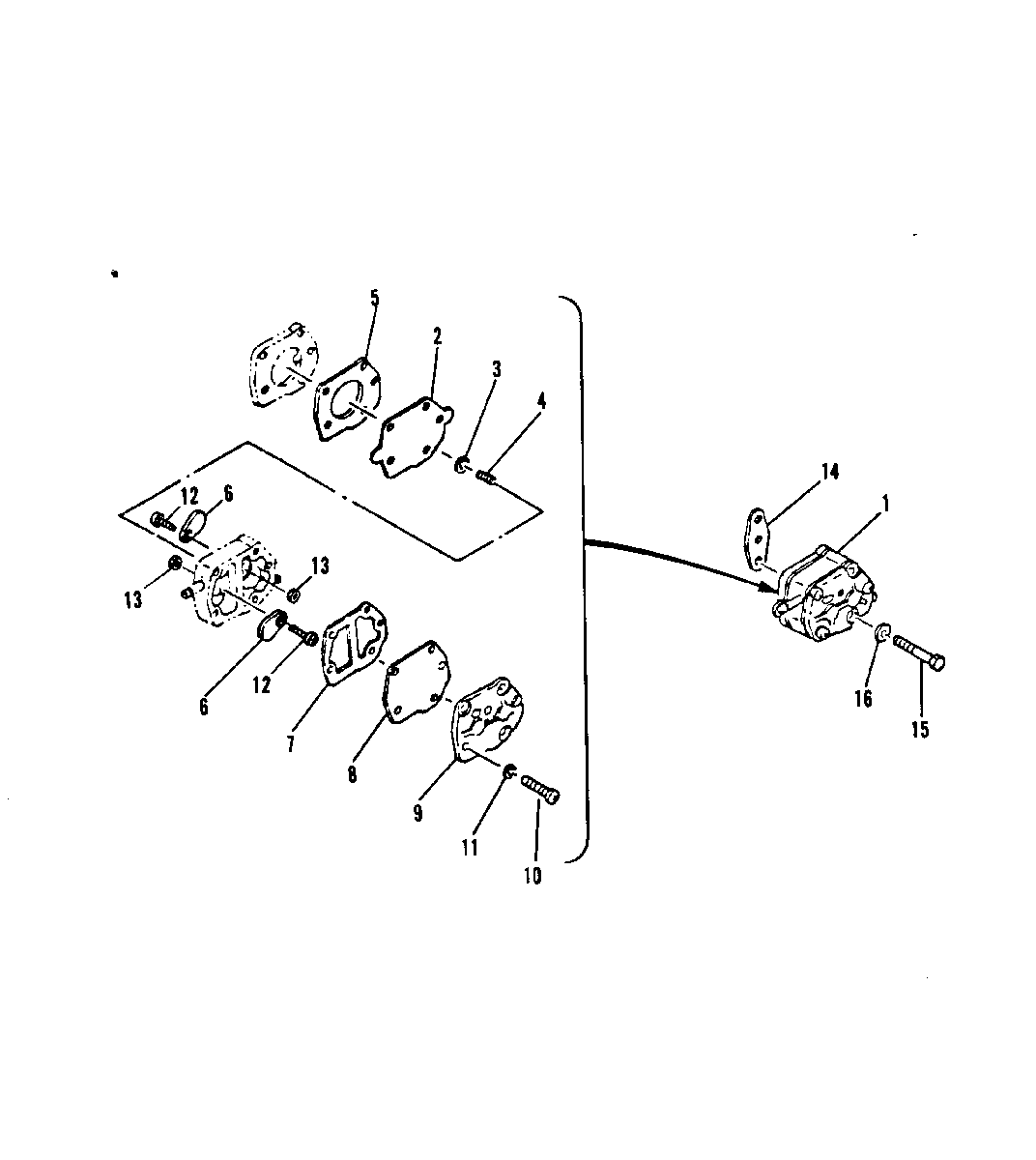

FUEL PUMP для Mariner - W15 662-001846 AND UP

  • №
    Артикул
    Название
  • 1
    43113T FUEL PUMP ASS'Y
    FUEL PUMP ASS'Y
  • 2
    80606M DIAPHRAGM
    DIAPHRAGM
  • 3
    80611M PLATE, SPRING GUIDE
    PLATE, SPRING GUIDE
  • 4
    24-80610M SPRING
    SPRING
  • 5
    27-80613 GASKET, BODY TO BASE
    GASKET, BODY TO BASE
  • 6
    21-41888M CHECK VALVE .
    SERIAL 00002341-09999999
    CHECK VALVE .
    SERIAL 00002341-09999999
  • 6
    21-84650M CHECK VALVE .
    SERIAL 00000000-00002340
    CHECK VALVE .
    SERIAL 00000000-00002340
  • 7
    27-80614 GASKET, BODY TO COVER
    GASKET, BODY TO COVER
  • 8
    84141M DIAPHRAGM
    DIAPHRAGM
  • 9
    80607M COVER .
    SERIAL 00004326-09999999
    COVER .
    SERIAL 00004326-09999999
  • 9
    80607M COVER .
    SERIAL 00000000-00004325
    COVER .
    SERIAL 00000000-00004325
  • 10
    10-82522M SCREW
    SCREW
  • 11
    13-82186M LOCKWASHER
    LOCKWASHER
  • 12
    10-41889M SCREW
    SERIAL 00004326-09999999
    SCREW
    SERIAL 00004326-09999999
  • 12
    10-813484M SCREW .
    SERIAL 00004325-00004325
    SCREW .
    SERIAL 00004325-00004325
  • 13
    11-82537M NUT .
    SERIAL 00002341-09999999
    NUT .
    SERIAL 00002341-09999999
  • 14
    27-80757 GASKET, FUEL PUMP TO CRANKCASE
    GASKET, FUEL PUMP TO CRANKCASE
  • 15
    10-827043M BOLT
    BOLT
  • 16
    13-82212M LOCKWASHER
    LOCKWASHER
