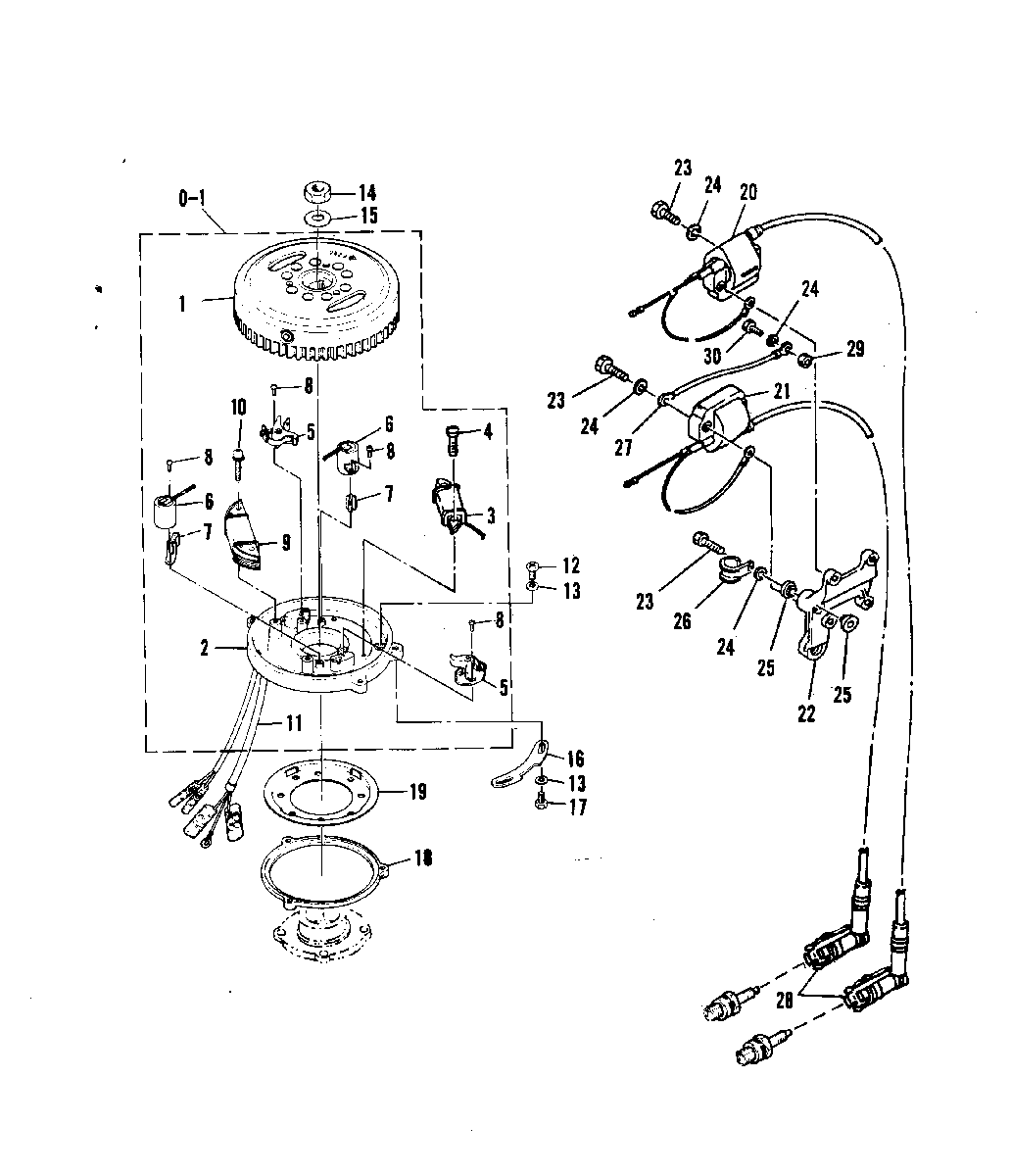

FLYWHEEL MAGNETO для Mariner - W15 662-001846 AND UP

  • №
    Артикул
    Название
  • 0-1
    253-8217M FLYWHEEL MAGNETO ASS'Y (WITHOUT LIGHTING COIL)
    FLYWHEEL MAGNETO ASS'Y (WITHOUT LIGHTING COIL)
  • 0-1
    253-8218M FLYWHEEL MAGNETO ASS'Y (WITH LIGHTING COIL)
    FLYWHEEL MAGNETO ASS'Y (WITH LIGHTING COIL)
  • 1
    253-8219M FLYWHEEL
    FLYWHEEL
  • 2
    94775M BASE, MAGNETO
    BASE, MAGNETO
  • 3
    83281T IGNITION COIL
    IGNITION COIL
  • 4
    10-83108M SCREW
    SCREW
  • 5
    80930M BREAKER POINT ASS'Y
    BREAKER POINT ASS'Y
  • 6
    80558M CONDENSER
    CONDENSER
  • 7
    80025M LUBRICATOR
    LUBRICATOR
  • 8
    10-82500M SCREW W/WASHER
    SCREW W/WASHER
  • 9
    80553M LIGHTING COIL ASS'Y (80W) (SEE NOTE)
    LIGHTING COIL ASS'Y (80W) (SEE NOTE)
  • 10
    10-83108M SCREW
    SCREW
  • 11
    84-94776M LEAD WIRE
    LEAD WIRE
  • 12
    10-82176M SCREW
    SCREW
  • 13
    13-82212M LOCKWASHER
    LOCKWASHER
  • 14
    11-81771M NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 15
    12-81814M WASHER
    WASHER
  • 16
    81233M STOP, MAGNETO BASE
    STOP, MAGNETO BASE
  • 17
    10-84088M BOLT
    BOLT
  • 18
    81231M RETAINER, MAGNETO BASE (INNER)
    RETAINER, MAGNETO BASE (INNER)
  • 19
    27-81223M RETAINER, MAGNETO BASE (OUTER)
    RETAINER, MAGNETO BASE (OUTER)
  • 20
    94777M SECONDARY IGNITION COIL ASS'Y
    SECONDARY IGNITION COIL ASS'Y
  • 21
    94778M SECONDARY IGNITION COIL ASS'Y
    SECONDARY IGNITION COIL ASS'Y
  • 22
    81248M BRACKET, IGNITION COIL
    BRACKET, IGNITION COIL
  • 23
    10-83285M BOLT
    BOLT
  • 24
    12-82214M WASHER
    WASHER
  • 25
    23-81970M COLLAR, COIL BRACKET BOLT
    COLLAR, COIL BRACKET BOLT
  • 26
    54-82040M CLAMP, COIL CLAMP
    CLAMP, COIL CLAMP
  • 27
    84-81250M WIRE, GROUND
    WIRE, GROUND
  • 28
    85-815119M PLUG CAP, NOISE SUPPRESSOR (STD)
    PLUG CAP, NOISE SUPPRESSOR (STD)
  • 28
    85-63709A1 PLUG CAP
    PLUG CAP
  • 29
    11-82389M NUT
    NUT
  • 30
    10-91772M BOLT
    BOLT
