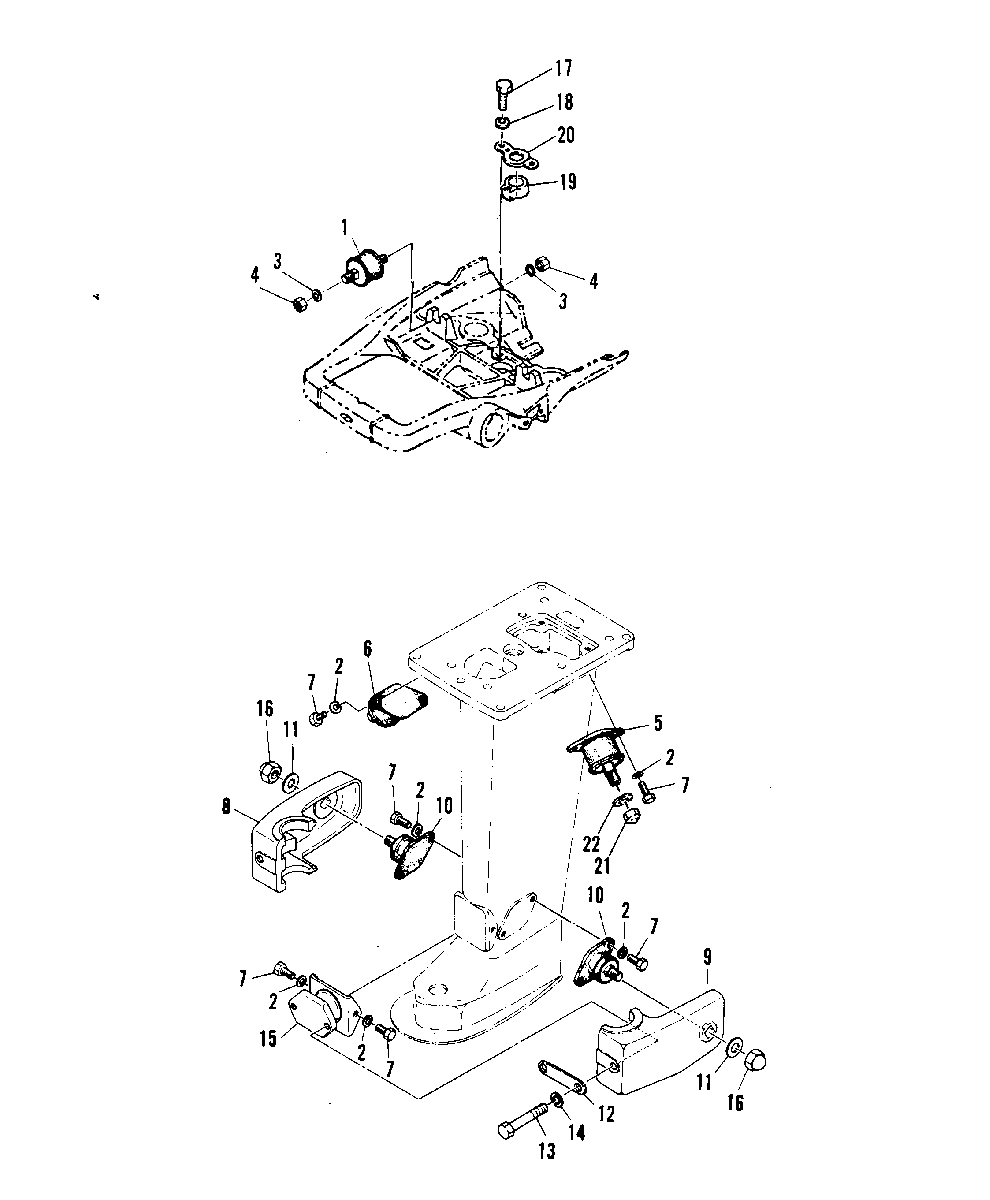

MOUNTING SYSTEM для Mariner - W15 662-001846 AND UP

  • №
    Артикул
    Название
  • 1
    80242M MOUNT, RUBBER (UPPER FRONT)
    MOUNT, RUBBER (UPPER FRONT)
  • 2
    13-82212M LOCKWASHER
    LOCKWASHER
  • 3
    12-82216M WASHER
    WASHER
  • 4
    11-82382M NUT
    SERIAL 00004326-09999999
    NUT
    SERIAL 00004326-09999999
  • 4
    11-82382M NUT
    SERIAL 00000000-00004325
    NUT
    SERIAL 00000000-00004325
  • 5
    80240M MOUNT, RUBBER-UPPER SIDE (PORT)
    MOUNT, RUBBER-UPPER SIDE (PORT)
  • 6
    80241M MOUNT, RUBBER-UPPER SIDE (STARBOARD)
    MOUNT, RUBBER-UPPER SIDE (STARBOARD)
  • 7
    10-826957M BOLT
    SERIAL 00004326-09999999
    BOLT
    SERIAL 00004326-09999999
  • 7
    10-826957M BOLT
    SERIAL 00000000-00004325
    BOLT
    SERIAL 00000000-00004325
  • 8
    80906M HOUSING, LOWER MOUNT (STARBOARD)
    HOUSING, LOWER MOUNT (STARBOARD)
  • 9
    80907M HOUSING, LOWER MOUNT (PORT)
    HOUSING, LOWER MOUNT (PORT)
  • 10
    80243M MOUNT, LOWER SIDE
    MOUNT, LOWER SIDE
  • 11
    12-81806M WASHER
    WASHER
  • 12
    80908M PLATE
    PLATE
  • 13
    10-43103M BOLT
    BOLT
  • 14
    13-82215M LOCKWASHER
    LOCKWASHER
  • 15
    80909M MOUNT, RUBBER (LOWER FRONT)
    MOUNT, RUBBER (LOWER FRONT)
  • 16
    11-82396M NUT
    NUT
  • 17
    10-82405M BOLT
    SERIAL 00004326-09999999
    BOLT
    SERIAL 00004326-09999999
  • 18
    13-82212M LOCKWASHER
    SERIAL 00004326-09999999
    LOCKWASHER
    SERIAL 00004326-09999999
  • 19
    25-43104M GROMMET
    SERIAL 00004326-09999999
    GROMMET
    SERIAL 00004326-09999999
  • 20
    43105M WASHER
    SERIAL 00004326-09999999
    WASHER
    SERIAL 00004326-09999999
  • 21
    11-82396M NUT
    SERIAL 00004326-09999999
    NUT
    SERIAL 00004326-09999999
  • 22
    12-81806M WASHER
    SERIAL 00004326-09999999
    WASHER
    SERIAL 00004326-09999999
