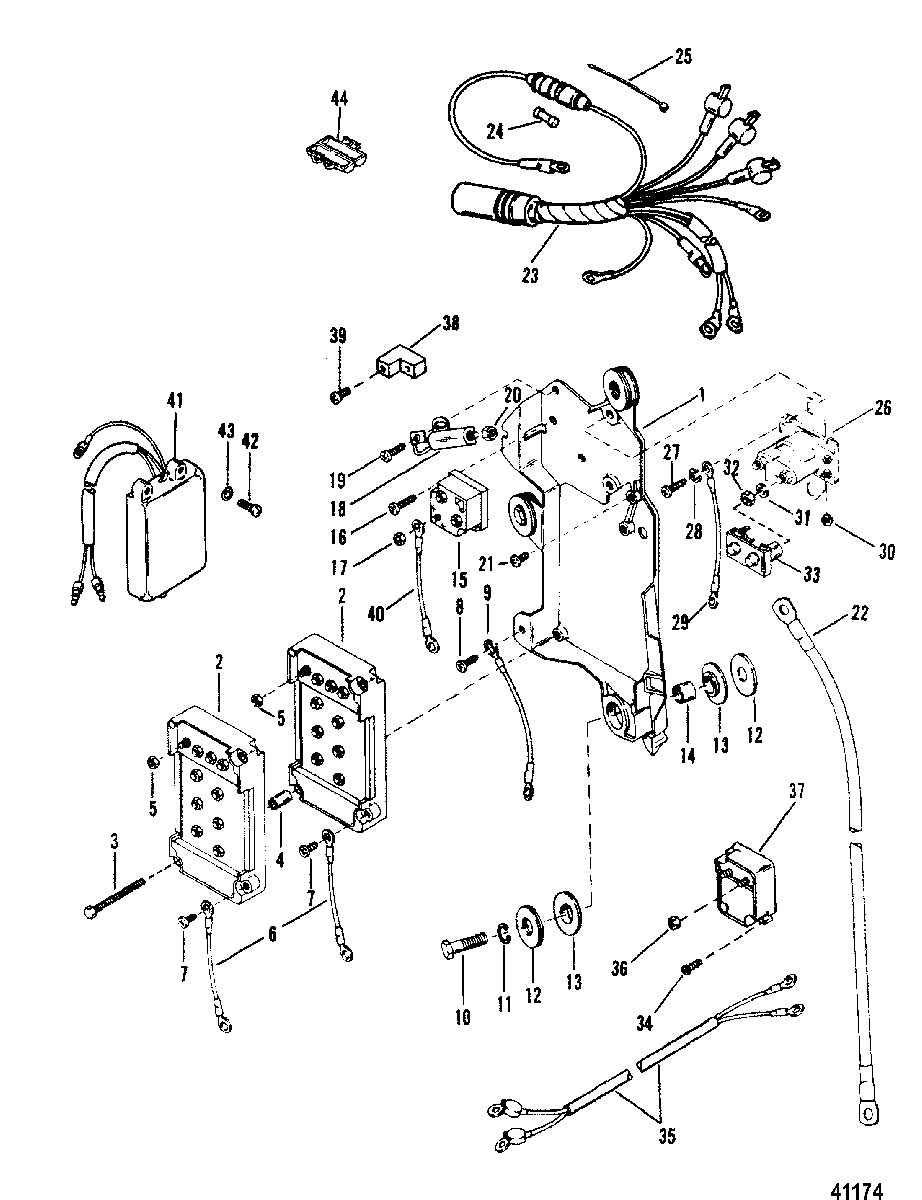

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER для Mariner - V-220 0B117316 & Up
-
№АртикулНазвание
-
1434292 PLATE, IGNITIONPLATE, IGNITION
-
2332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
310-13669 SCREW, (#12-24 x 2.00)SCREW, (#12-24 x 2.00)
-
423-94453 BUSHING, SWITCH BOX SCREWBUSHING, SWITCH BOX SCREW
-
511-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
684-60871A10 WIRE ASSEMBLY, SWITCH BOXWIRE ASSEMBLY, SWITCH BOX
-
710-62568 SCREW, (#10-16 x .375), WIRE ATTACHINGSCREW, (#10-16 x .375), WIRE ATTACHING
-
810-87926 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
984-65999A3 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1010-60411 SCREW, (1.25), IGNITION PLATESCREW, (1.25), IGNITION PLATE
-
1113-26993 LOCKWASHER, (.312), IGNITION PLATE SCREWLOCKWASHER, (.312), IGNITION PLATE SCREW
-
1212-36042 WASHER, IGNITION PLATE SCREWWASHER, IGNITION PLATE SCREW
-
1312-67264 WASHER, (Rubber)WASHER, (Rubber)
-
1423-67268 BUSHING, IGNITION PLATE SCREWBUSHING, IGNITION PLATE SCREW
-
158M0058226 RECTIFIERRECTIFIER
-
1610-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
1711-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALSNUT, (#10-32) Brass, RECTIFIER TERMINALS
-
1887-33386A3 SWITCH ASSEMLBYSWITCH ASSEMLBY
-
1910-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
2011-45076 NUT, (#10-32) Brass, MERCURY SWITCH TERMINALNUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
-
2110-42813 SCREW, (#10-32 X .380), LEAD ATTACHINGSCREW, (#10-32 X .380), LEAD ATTACHING
-
2284-88439A14 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
2284-88439A2 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2384-96220A6 HARNESS ASSEMBLY, ENGINEHARNESS ASSEMBLY, ENGINE
-
2488-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2554-816311T CLAMP, HARNESS AND CABLESCLAMP, HARNESS AND CABLES
-
2689-853654A1 SOLENOID, StarterSOLENOID, Starter
-
2710-31716 SCREW, (.250-20 x .620)SCREW, (.250-20 x .620)
-
2813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2984-65999A2 CABLE ASSEMBLY, Black, UPPER MOUNTCABLE ASSEMBLY, Black, UPPER MOUNT
-
3011-45076 NUT, (#10-32) Brass, SOLENOID TERMINALSNUT, (#10-32) Brass, SOLENOID TERMINALS
-
3113-53166 LOCKWASHER, (.312), SOLENOID TERMINALSLOCKWASHER, (.312), SOLENOID TERMINALS
-
3211-68292 NUT, (.312-18), SOLENOID TERMINALSNUT, (.312-18), SOLENOID TERMINALS
-
3385-97861 INSULATOR, SOLENOIDINSULATOR, SOLENOID
-
3410-48409 SCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATORSCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATOR
-
3584-13397A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3611-45076 NUT, (#10-32) Brass, VOLTAGE REGULATORNUT, (#10-32) Brass, VOLTAGE REGULATOR
-
3788825A7 VOLTAGE REGUALTORVOLTAGE REGUALTOR
-
3886-45915 TERMINAL BLOCKTERMINAL BLOCK
-
3910-48408 SCREW, (#10-16 x .500), TERMINAL BLOCKSCREW, (#10-16 x .500), TERMINAL BLOCK
-
4084-88808A20 CABLE ASSEMBLY (RED)CABLE ASSEMBLY (RED)
-
4187076A10 IDLE SPEED CONTROL ASSEMBLYIDLE SPEED CONTROL ASSEMBLY
-
4210-690201 SCREW, (#10-32 x .875), IDLE SPEED CONTROLSCREW, (#10-32 x .875), IDLE SPEED CONTROL
-
4312-38833 WASHER, IDLE SPEED CONTROLWASHER, IDLE SPEED CONTROL
-
44134731 HOLDER, FuseHOLDER, Fuse
