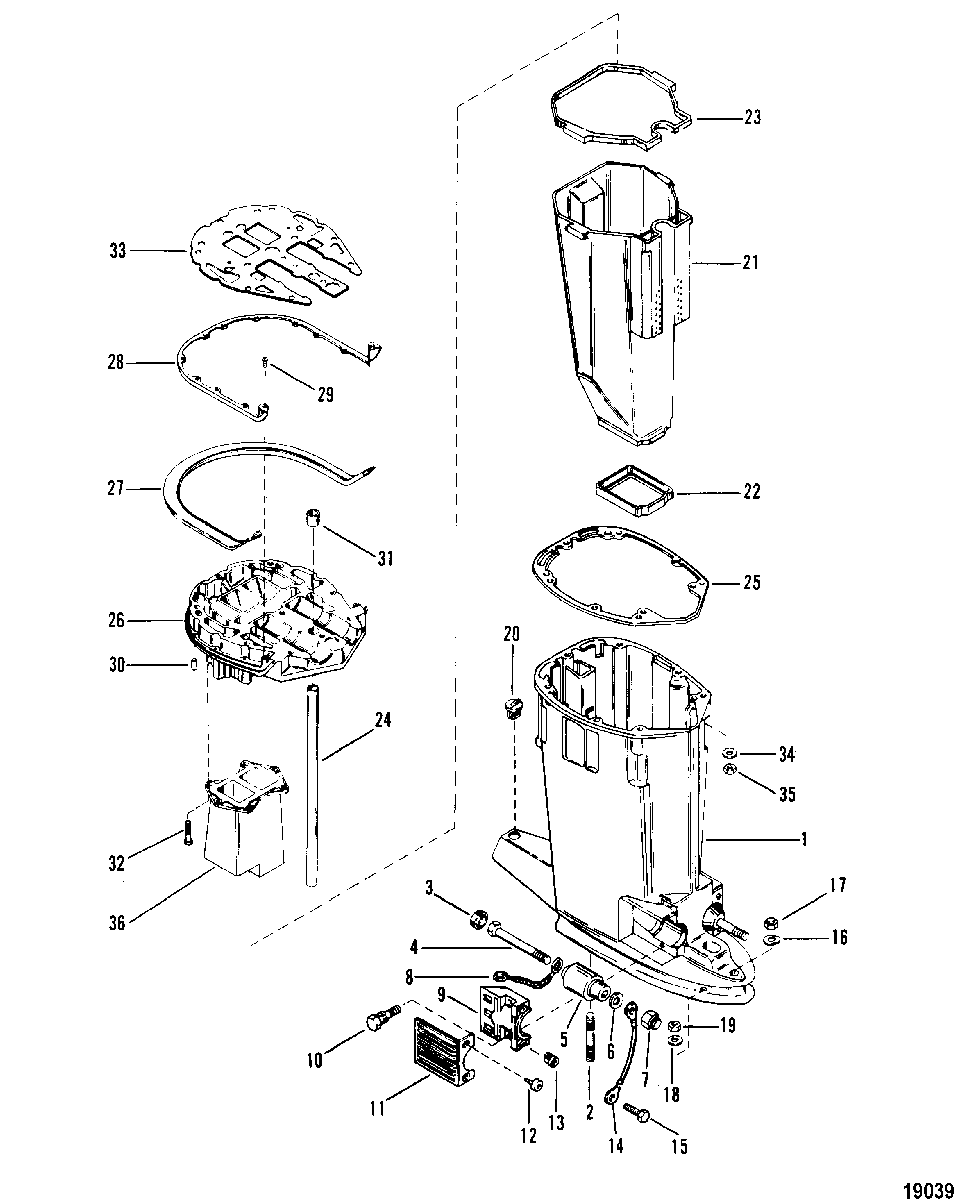

DRIVESHAFT HOUSING AND EXHAUST TUBE для Mariner - V-220 0B117316 & Up

  • №
    Артикул
    Название
  • 1
    1590-8343A7 HOUSING ASSEMBLY, Driveshaft
    (BLACK)
    HOUSING ASSEMBLY, Driveshaft
    (BLACK)
  • 1
    1590-8343A8 HOUSING ASSEMBLY, Driveshaft
    (GRAY)
    HOUSING ASSEMBLY, Driveshaft
    (GRAY)
  • 2
    16-56295 STUD, (.437 x 2.69)
    (LONG)
    STUD, (.437 x 2.69)
    (LONG)
  • 2
    16-74732 STUD
    (X-LONG)
    STUD
    (X-LONG)
  • 3
    25067 BUMPER, LOWER MOUNT SCREW
    BUMPER, LOWER MOUNT SCREW
  • 4
    10-898831 SCREW, (.500-20 x 6.00), LOWER MOUNT
    SCREW, (.500-20 x 6.00), LOWER MOUNT
  • 5
    77327 MOUNT
    MOUNT
  • 6
    12-49339 WASHER, (.8125), LOWER MOUNT SCREW
    WASHER, (.8125), LOWER MOUNT SCREW
  • 7
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 8
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 9
    54-8M0036782 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 10
    10-66727 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 11
    100-8M4500752 COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 12
    10-88417 SCREW, (#12-24 x .620), COVER ATTACHING
    SCREW, (#12-24 x .620), COVER ATTACHING
  • 13
    11-35521 NUT, NYLON - COVER TO CLAMP SCREW
    NUT, NYLON - COVER TO CLAMP SCREW
  • 14
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 15
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
    SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
  • 16
    12-73862 WASHER, GEAR HOUSING STUD
    WASHER, GEAR HOUSING STUD
  • 17
    11-29489 NUT, GEAR HOUSING STUD (CAP)
    NUT, GEAR HOUSING STUD (CAP)
  • 18
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUD
    WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUD
  • 19
    11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUD
    NUT, (.437-20) Stainless Steel, GEAR HOUSING STUD
  • 20
    19-64649 PLUG, DRIVESHAFT HOUSING
    PLUG, DRIVESHAFT HOUSING
  • 21
    89743 TUBE, Exhaust
    TUBE, Exhaust
  • 22
    66350001 SEAL, EXHAUST TUBE - LOWER
    SEAL, EXHAUST TUBE - LOWER
  • 23
    86027 SEAL, EXHAUST TUBE - UPPER
    SEAL, EXHAUST TUBE - UPPER
  • 24
    32-8M0042788 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 24
    32-8M0042790 TUBE, WATER
    (X-LONG)
    TUBE, WATER
    (X-LONG)
  • 25
    27-991734 GASKET, DRIVESHAFT HOUSING TO PLATE
    GASKET, DRIVESHAFT HOUSING TO PLATE
  • 26
    41945A6 PLATE ASSEMBLY, DRIVESHAFT HOUSING
    PLATE ASSEMBLY, DRIVESHAFT HOUSING
  • 27
    707482 SEAL, BRACKET
    SEAL, BRACKET
  • 28
    68011 BRACKET, SEAL RETAINING
    BRACKET, SEAL RETAINING
  • 29
    10-48408 SCREW, (#10-16 x .500), BRACKET TO PLATE
    SCREW, (#10-16 x .500), BRACKET TO PLATE
  • 30
    17-43044 PIN, Dowel, LOCATING
    PIN, Dowel, LOCATING
  • 31
    26-38970 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 32
    10-90192 SCREW, (.250-20 x .750) Stainless Steel, DIFFUSER TO PLATE
    SCREW, (.250-20 x .750) Stainless Steel, DIFFUSER TO PLATE
  • 33
    27-991772 GASKET, DRIVESHAFT HOUSING PLATE TO EXHAUST PLATE
    GASKET, DRIVESHAFT HOUSING PLATE TO EXHAUST PLATE
  • 34
    12-20553 WASHER, POWER HEAD STUD
    WASHER, POWER HEAD STUD
  • 35
    11-69254 NUT, POWER HEAD STUD
    NUT, POWER HEAD STUD
  • 36
    41941T DIFFUSER, EXHAUST
    DIFFUSER, EXHAUST
  • --
    78148A1 SPACER ASSEMBLY (X LONG)
    SPACER ASSEMBLY (X LONG)
  • --
    17-43044 PIN, Dowel, LOCATING - SPACER (X LONG)
    PIN, Dowel, LOCATING - SPACER (X LONG)
  • -
    27-14697A87 GASKET SET
    GASKET SET
