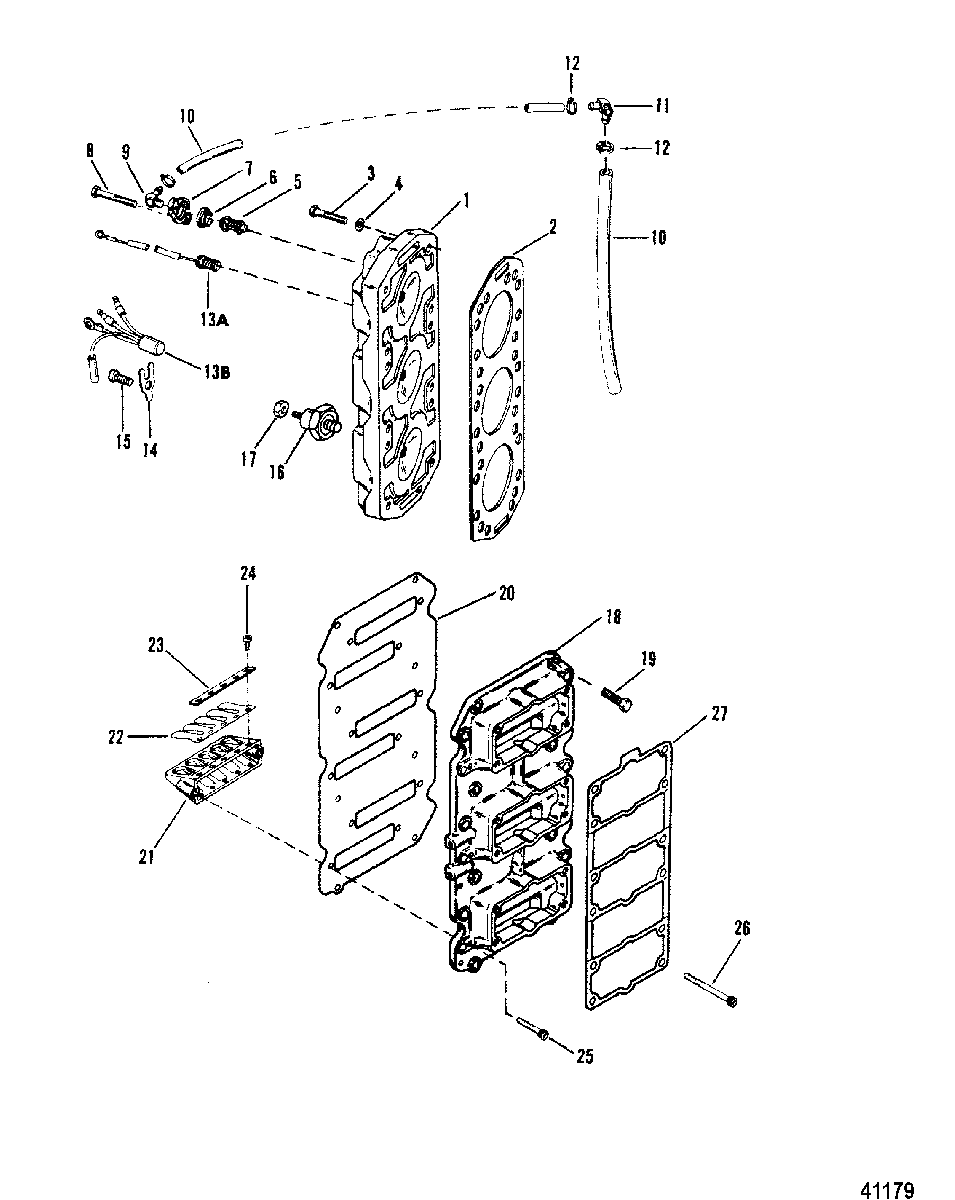

REED BLOCK AND CYLINDER HEAD для Mariner - V-220 0B117316 & Up
-
№АртикулНазвание
-
115221A5 CYLINDER HEAD ASSEMBLY
(HEMI-HEAD)CYLINDER HEAD ASSEMBLY
(HEMI-HEAD) -
115221A5 CYLINDER HEAD ASSEMBLY
(TOP-HAT)CYLINDER HEAD ASSEMBLY
(TOP-HAT) -
227-41247T01 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
310-98534 SCREW, (.375-16 x 2.30), CYLINDER HEADSCREW, (.375-16 x 2.30), CYLINDER HEAD
-
310-13450 SCREW, (.375-16 x 2.30), CYLINDER HEAD (SPECIAL)SCREW, (.375-16 x 2.30), CYLINDER HEAD (SPECIAL)
-
412-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREWWASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
-
575692 THERMOSTATTHERMOSTAT
-
627-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
790390A1 COVER KIT, THERMOSTATCOVER KIT, THERMOSTAT
-
810-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVERSCREW, (.312-18 x 1.00), THERMOSTAT COVER
-
922-687271 FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSESFITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
-
1032-77653101 HOSE, (24.500 Inches Bulk), WATER DISTIBUTIONHOSE, (24.500 Inches Bulk), WATER DISTIBUTION
-
1122-68728 FITTING, THERMOSTAT COVER TO WATER HOSESFITTING, THERMOSTAT COVER TO WATER HOSES
-
1254-816311T CLAMP, WATER HOSESCLAMP, WATER HOSES
-
13A97465 SENDER, Temperature (STARBOARD)SENDER, Temperature (STARBOARD)
-
13B13536A6 SENSOR ASSEMBLY, Temperature (PORT)SENSOR ASSEMBLY, Temperature (PORT)
-
14137151 RETAINER, SENSOR AND SENDERRETAINER, SENSOR AND SENDER
-
1510-98257 SCREW, (.312-18 x .500), RETAINERSCREW, (.312-18 x .500), RETAINER
-
16825164A1 SENSOR, DetonationSENSOR, Detonation
-
1711-45076 NUT, (#10-32) Brass, DETONATION SENSORNUT, (#10-32) Brass, DETONATION SENSOR
-
1814593A4 ADAPTOR PLATEADAPTOR PLATE
-
1910-28668 SCREW, (.250-20 x .875) Stainless Steel, ADAPTOR PLATESCREW, (.250-20 x .875) Stainless Steel, ADAPTOR PLATE
-
2027-146971 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
2175953 REED BLOCKREED BLOCK
-
2234-75362A1 REED ASSEMBLYREED ASSEMBLY
-
23961832 CLAMP, ReedCLAMP, Reed
-
2410-823588 SCREW, (#8-32 x .187), REEDS TO REED BLOCKSCREW, (#8-32 x .187), REEDS TO REED BLOCK
-
2510-92160 SCREW, (.250-20 x .75), REED BLOCK ATTACHINGSCREW, (.250-20 x .75), REED BLOCK ATTACHING
-
2610-90197 SCREW, (.250-20 x 1.125), REED BLOCK ATTACHINGSCREW, (.250-20 x 1.125), REED BLOCK ATTACHING
-
2727-16737 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
-27-14697A87 GASKET SETGASKET SET
