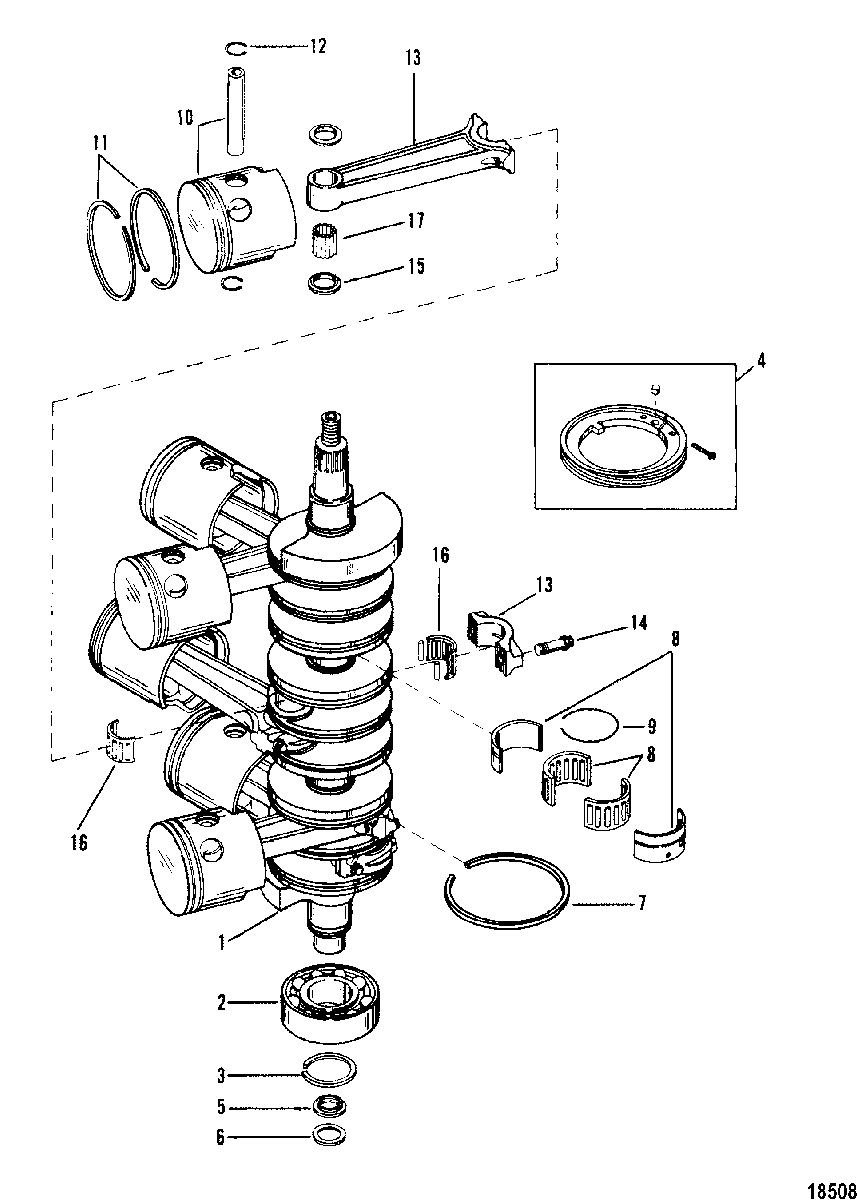

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - V-220 0B117316 & Up

  • №
    Артикул
    Название
  • 1
    455-8745T5 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BEARING, Ball, CRANKSHAFT (LOWER)
    BEARING, Ball, CRANKSHAFT (LOWER)
  • 3
    53-67446 RING, BALL BEARING
    RING, BALL BEARING
  • 4
    43-99727A1 GEAR, Drive
    GEAR, Drive
  • 5
    54196A6 CARRIER ASSEMBLY, SEAL
    CARRIER ASSEMBLY, SEAL
  • 6
    65800 PACKING, CARRIER
    PACKING, CARRIER
  • 7
    39-67377T RING, Sealing, CRANKSHAFT (.124 THICK)
    RING, Sealing, CRANKSHAFT (.124 THICK)
  • 7
    39-78633 RING, SEALING - CRANKSHAFT (.139 THICK)
    RING, SEALING - CRANKSHAFT (.139 THICK)
  • 8
    31-93495T BEARING, Roller, CRANKSHAFT
    BEARING, Roller, CRANKSHAFT
  • 9
    53-67444 RING, Retaining, ROLLER BEARING
    RING, Retaining, ROLLER BEARING
  • 10
    766-8666T41 PISTON ASSEMBLY
    (STARBOARD)
    PISTON ASSEMBLY
    (STARBOARD)
  • 10
    766-8667T41 PISTON ASSEMBLY
    (PORT)
    PISTON ASSEMBLY
    (PORT)
  • 11
    39-813011A12 RING ASSEMBLY, Piston
    RING ASSEMBLY, Piston
  • 12
    53-857196 RING, Lock, PISTON
    RING, Lock, PISTON
  • 13
    636-8119A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    10-93886 SCREW, (.312-28 x .875), CONNECTING ROD
    SCREW, (.312-28 x .875), CONNECTING ROD
  • 15
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 16
    31-8M0045428 BEARING ASSEMBLY, Roller, CRANKSHAFT END
    BEARING ASSEMBLY, Roller, CRANKSHAFT END
  • 17
    29-67483 BEARING, Needle, PISTON END
    BEARING, Needle, PISTON END
  • -
    27-14697A87 GASKET SET
    GASKET SET
