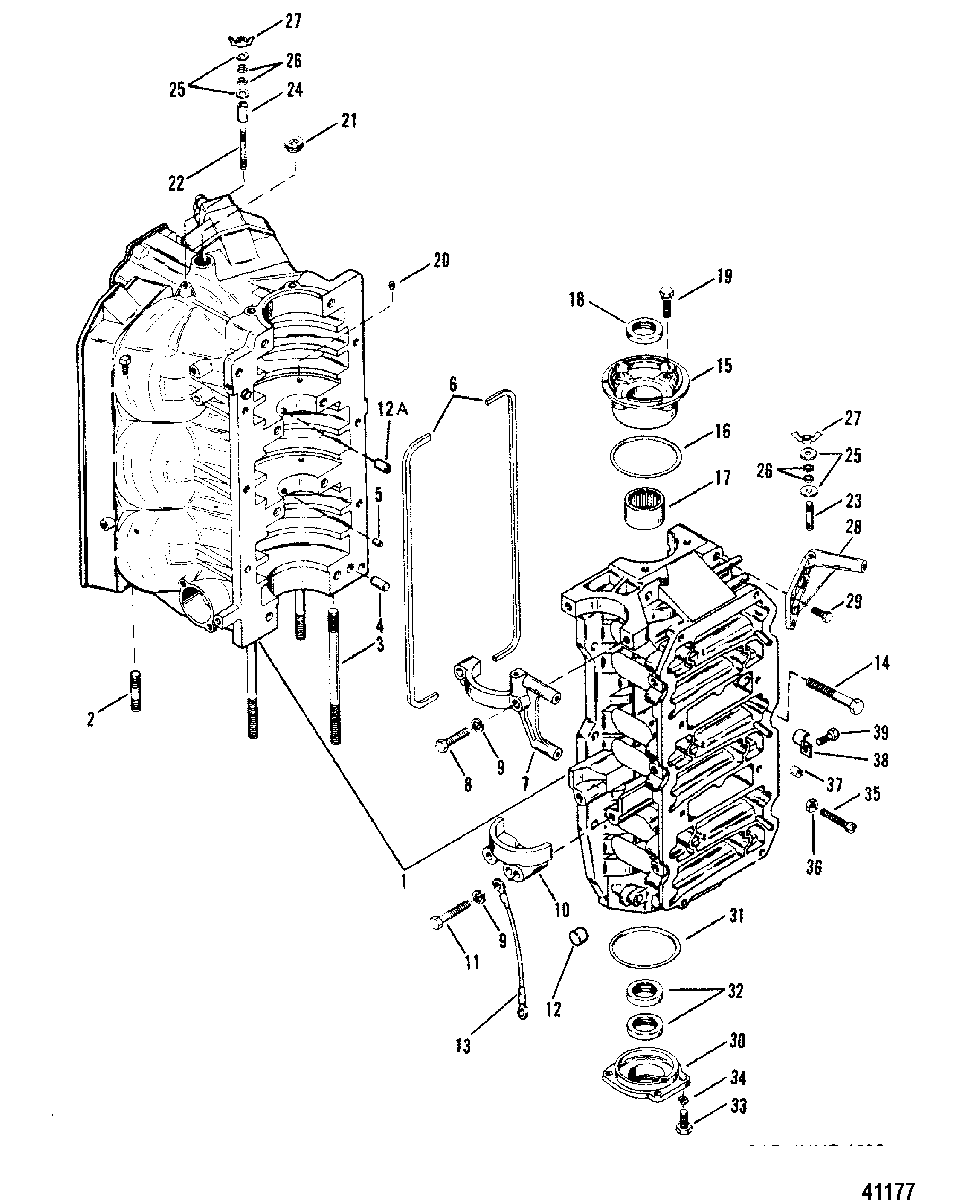

CYLINDER BLOCK AND END CAPS для Mariner - V-220 0B117316 & Up
-
№АртикулНазвание
-
1858-8712T41 CYLINDER BLOCK
(2 SCREW POPPET)CYLINDER BLOCK
(2 SCREW POPPET) -
1858-8712T41 CYLINDER BLOCK
(4 SCREW POPPET)CYLINDER BLOCK
(4 SCREW POPPET) -
216-76175 STUD, POWERHEAD (1-7/8")STUD, POWERHEAD (1-7/8")
-
316-670654 STUD, POWERHEAD (5-1/2")STUD, POWERHEAD (5-1/2")
-
316-8M0034454 STUD, POWERHEAD (6-3/4")STUD, POWERHEAD (6-3/4")
-
417-43044 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
517-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)PIN, CYLINDER BLOCK (BEARING RACE)
-
627-11338 GASKET, SEALINGGASKET, SEALING
-
78M0088723 COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
810-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASESCREW, (.312-18 x 1.50), COVER TO CRANKCASE
-
913-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREWLOCKWASHER, (.312), STARTER MOTOR COVER SCREW
-
1076867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
1110-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASESCREW, (.312-18 x 2), COVER TO CRANKCASE
-
1219-88801 PLUG, CUPPEDPLUG, CUPPED
-
12A23-99448 BUSHINGBUSHING
-
1384-88807A20 CABLE ASSEMBLY, COVERCABLE ASSEMBLY, COVER
-
1410-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1410-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
151159-8454T2 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
1625-54029 O-RING, (2.800 x .103), END CAPO-RING, (2.800 x .103), END CAP
-
1731-93496T BEARING, Roller, END CAPBEARING, Roller, END CAP
-
1826-41953 SEAL, END CAPSEAL, END CAP
-
1910-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)SCREW AND LOCKWASHER, (.312-18 x 1.00)
-
2010-24220 SCREW, (.190-24 x .190)SCREW, (.190-24 x .190)
-
2122-38407 PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)
-
2216-15094 STUD, (.190-32 x 1.870)STUD, (.190-32 x 1.870)
-
2316-8M0034435 STUD, (#10-32 x 1.00)STUD, (#10-32 x 1.00)
-
2423-67269 SPACER, FLYWHEEL COVER STUDSPACER, FLYWHEEL COVER STUD
-
2512-49221 WASHER, FLYWHEEL COVER STUDWASHER, FLYWHEEL COVER STUD
-
2612-72761 WASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUDWASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUD
-
2711-816874 NUT, FLYWHEEL COVER STUDNUT, FLYWHEEL COVER STUD
-
28422482 BRACKET, FLYWHEEL COVERBRACKET, FLYWHEEL COVER
-
2910-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASESCREW, (.250-20 x .750), BRACKET TO CRANKCASE
-
301156-7809T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
3125-62700 O-RING, (3.237 x .103), END CAPO-RING, (3.237 x .103), END CAP
-
3226-41953 SEAL, END CAPSEAL, END CAP
-
3310-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3413-26992 LOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREWLOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREW
-
3510-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCKSCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
-
3611-64015 NUT, (.250-20), JAM - ADJUSTING SCREWNUT, (.250-20), JAM - ADJUSTING SCREW
-
3726852 CAP, Nylon, ADJUSTING SCREWCAP, Nylon, ADJUSTING SCREW
-
3854-16793 CLAMPCLAMP
-
3910-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
-15379T88 POWERHEAD ASSMEBLYPOWERHEAD ASSMEBLY
-
-27-14697A87 GASKET SETGASKET SET
