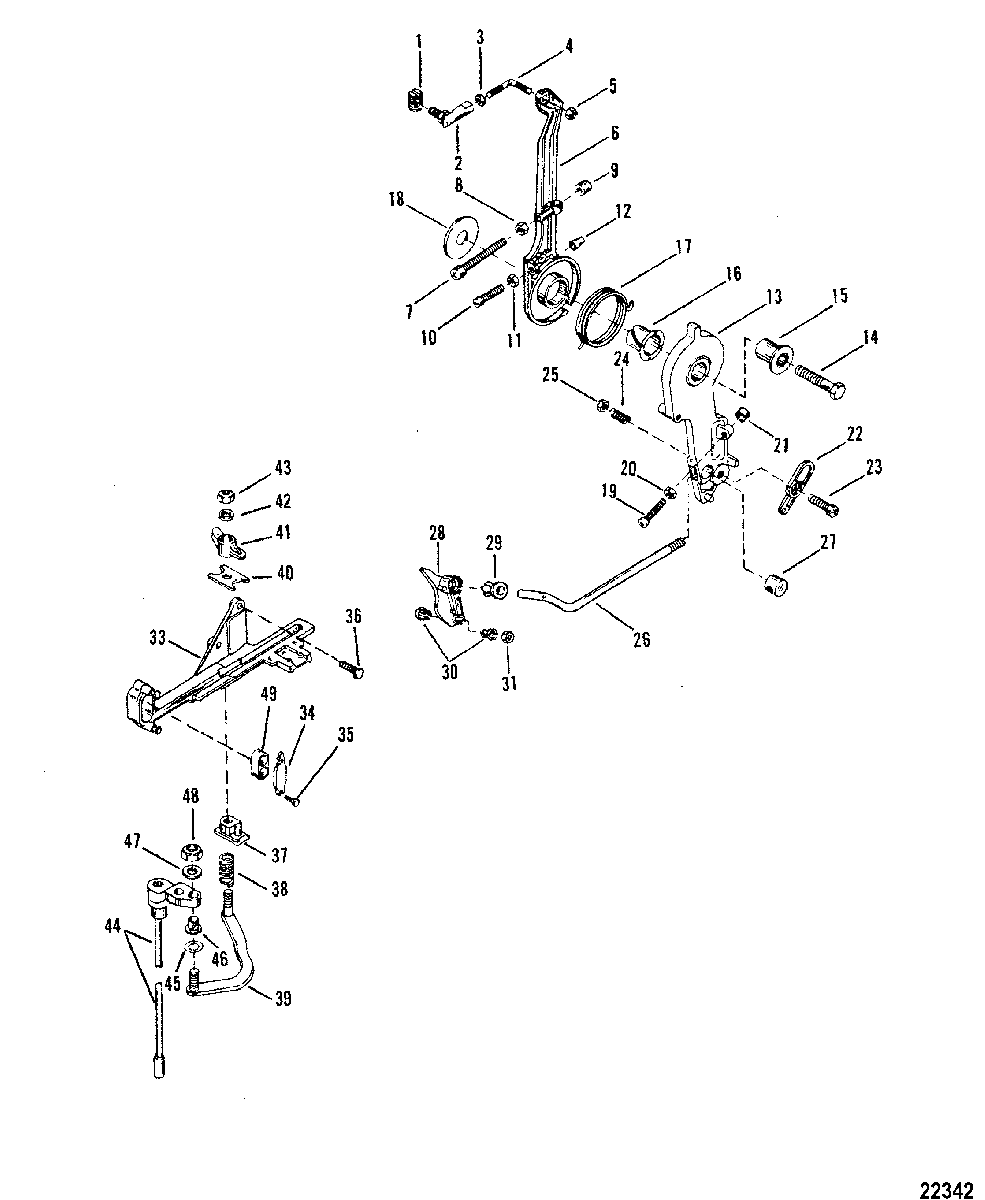

THROTTLE LEVER AND SHIFT SHAFT для Mariner - V-220 0B117316 & Up
-
№АртикулНазвание
-
174897T PIVOT, TRIGGER PLATEPIVOT, TRIGGER PLATE
-
262459T BALL JOINT ASSEMBLY, TRIGGER PLATEBALL JOINT ASSEMBLY, TRIGGER PLATE
-
311-45076 NUT, (#10-32) Brass, LINK RODNUT, (#10-32) Brass, LINK ROD
-
476035 ROD, TRIGGER PLATEROD, TRIGGER PLATE
-
511-46438 NUT, (#10-32), BALL JOINTNUT, (#10-32), BALL JOINT
-
641094A3 LEVER ASSEMBLY, SPARK ADVANCELEVER ASSEMBLY, SPARK ADVANCE
-
710-64022 SCREW, (.250-20 x 2.125), SPARK ADVANCE LEVER - STOPSCREW, (.250-20 x 2.125), SPARK ADVANCE LEVER - STOP
-
811-64015 NUT, (.250-20), SPARK ADVANCE STOP SCREWNUT, (.250-20), SPARK ADVANCE STOP SCREW
-
926852 CAP, Nylon, SPARK ADVANCE LEVER STOP SCREWCAP, Nylon, SPARK ADVANCE LEVER STOP SCREW
-
1010-13627 SCREW, (.190-32 x 1.250)SCREW, (.190-32 x 1.250)
-
1111-68219 NUT, (#10-32) Stainless Steel, SPARK ADVANCE LEVER STOP SCREWNUT, (#10-32) Stainless Steel, SPARK ADVANCE LEVER STOP SCREW
-
1248039 CAP, SPARK ADVANCE LEVER STOP SCREWCAP, SPARK ADVANCE LEVER STOP SCREW
-
13410952 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1410-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1523-55164 BUSHING, THROTTLE LEVERBUSHING, THROTTLE LEVER
-
1623-55171 BUSHING, SPARK ADVANCE LEVERBUSHING, SPARK ADVANCE LEVER
-
1724-68784 SPRING, THROTTLE AND SPARK ADVANCE LEVERSPRING, THROTTLE AND SPARK ADVANCE LEVER
-
1812-46765 WASHER, SPARK ADVANCE LEVERWASHER, SPARK ADVANCE LEVER
-
1910-64022 SCREW, (.250-20 x 2.125), THROTTLE LEVER - STOPSCREW, (.250-20 x 2.125), THROTTLE LEVER - STOP
-
2011-64015 NUT, (.250-20), THROTTLE LEVER STOP SCREWNUT, (.250-20), THROTTLE LEVER STOP SCREW
-
2126852 CAP, Nylon, THROTTLE LEVER STOP SCREWCAP, Nylon, THROTTLE LEVER STOP SCREW
-
2239483 LATCH, CABLELATCH, CABLE
-
2310-69026 SCREW, (.250-28 x .880), CABLE LATCH TO THROTTLE LEVERSCREW, (.250-28 x .880), CABLE LATCH TO THROTTLE LEVER
-
2424-20099 SPRING, CABLE LATCH TO THROTTLE LEVERSPRING, CABLE LATCH TO THROTTLE LEVER
-
2511-826709109 NUT, (.250-28), CABLE LATCH SCREWNUT, (.250-28), CABLE LATCH SCREW
-
2614634 ROD, THROTTLE CONTROLROD, THROTTLE CONTROL
-
2714638 BARREL, THROTTLE CONTROL RODBARREL, THROTTLE CONTROL ROD
-
28146351 CAM, ThrottleCAM, Throttle
-
2923-932481 BUSHINGBUSHING
-
3023-26856 BUSHING, THROTTLE CAMBUSHING, THROTTLE CAM
-
3111-36069 NUT, THROTTLE CAM STUDNUT, THROTTLE CAM STUD
-
3224-41050 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
33814283A2 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
3498889 LATCH, CONTROL CABLELATCH, CONTROL CABLE
-
3510-42975 DRIVE SCREW, LATCHDRIVE SCREW, LATCH
-
3610-53167T SCREW, (.312-18 x .880), ANCHOR BRACKET ATTACHINGSCREW, (.312-18 x .880), ANCHOR BRACKET ATTACHING
-
3737896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
3824-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
3967073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4052100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
418M0036768 LATCH, CONTROL CABLE FASTENINGLATCH, CONTROL CABLE FASTENING
-
4212-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, LATCHWASHER, (.2656 x .625 x .0625) Stainless Steel, LATCH
-
4311-36069 NUT, LINK RODNUT, LINK ROD
-
4479932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
4479932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
4513-29720 WAVE WASHER, LINK RODWAVE WASHER, LINK ROD
-
4623-26600 BUSHING, NYLON - LINK RODBUSHING, NYLON - LINK ROD
-
4712-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK RODWASHER, (.2656 x .625 x .0625) Stainless Steel, LINK ROD
-
4811-36069 NUT, LINK ROD TO SHIFT SHAFTNUT, LINK ROD TO SHIFT SHAFT
-
4939519 CUP, BARREL RETAINER - ANCHOR BARCUP, BARREL RETAINER - ANCHOR BAR
