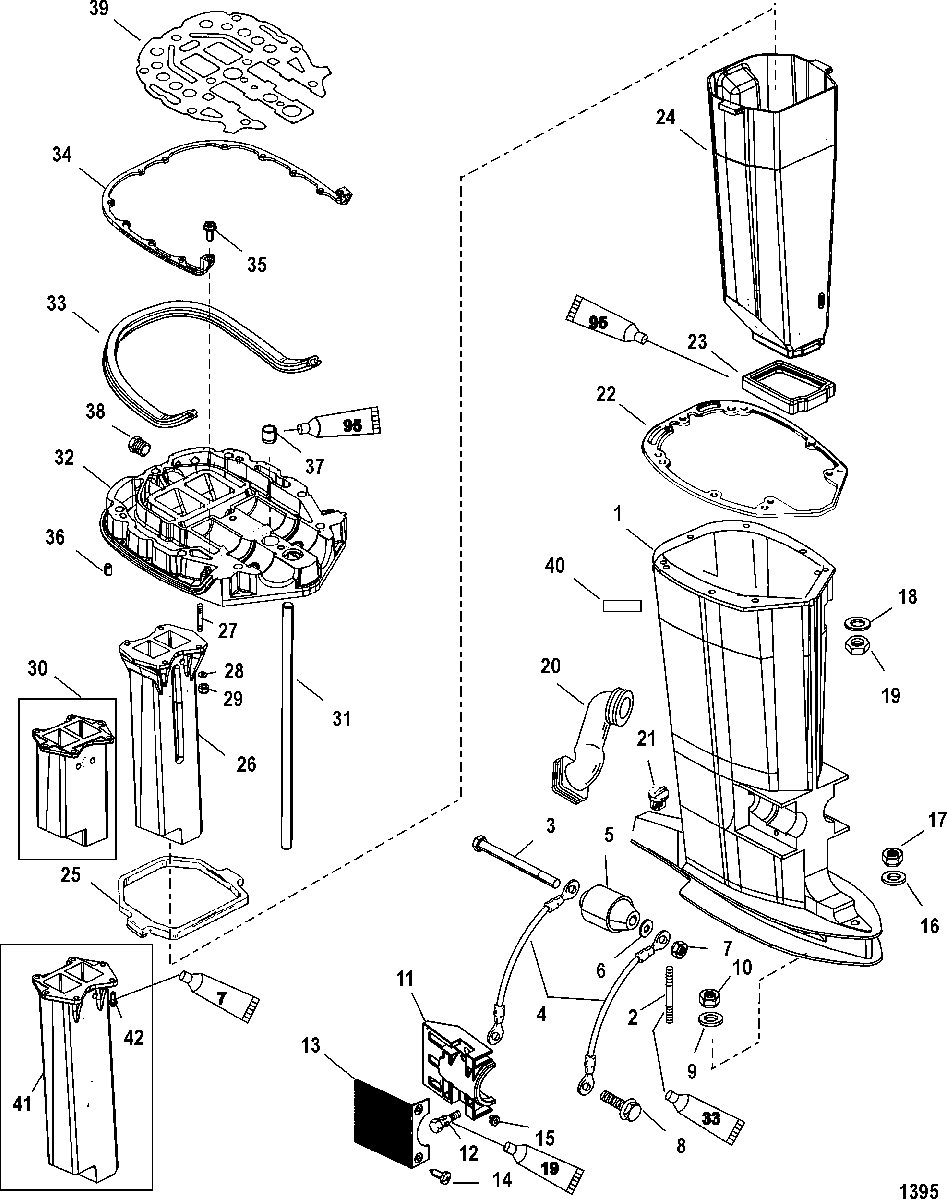

Driveshaft Housing and Exhaust Tube для Mariner - MAGNUM III 0G960500 THRU 1B226999

№

Артикул

Название
1

1590-8343T10 HOUSING ASSEMBLY, Driveshaft - Black - Long
(BLACK-LONG)

HOUSING ASSEMBLY, Driveshaft - Black - Long
(BLACK-LONG)

117 820 ₽
1

3503-813563T1 HOUSING, Driveshaft - Black - X-Long
(BLACK-X-LONG)

HOUSING, Driveshaft - Black - X-Long
(BLACK-X-LONG)

111 050 ₽
1

1590-8343A13 HOUSING ASSEMBLY, Driveshaft
(BLACK - JET)

HOUSING ASSEMBLY, Driveshaft
(BLACK - JET)

121 610 ₽
2

16-56295 STUD, (.437 x 2.69)

STUD, (.437 x 2.69)

420 ₽
3

10-898831 SCREW, (.500-20 x 6.00)

SCREW, (.500-20 x 6.00)

1 860 ₽
4

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground

600 ₽
5

77327 MOUNT, Lower
(135)(JET)

MOUNT, Lower
(135)(JET)

16 010 ₽
5

77327 MOUNT, Lower
(ALL OTHER MODELS)

MOUNT, Lower
(ALL OTHER MODELS)

16 010 ₽
6

12-49339 WASHER, (.8125)

WASHER, (.8125)

140 ₽
7

11-898832 NUT, (.500-20)

NUT, (.500-20)

260 ₽
8

10-41508 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel

260 ₽
9

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel

130 ₽
10

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel

440 ₽
11

54-8M0036782 CLAMP

CLAMP

2 200 ₽
12

10-66727 SCREW, (.312-18 x 1.250)

SCREW, (.312-18 x 1.250)

220 ₽
13

100-8M4500752 COVER, Black

COVER, Black

2 270 ₽
14

10-88417 SCREW, (#12-24 x .620)

SCREW, (#12-24 x .620)

140 ₽
15

11-35521 NUT

NUT

190 ₽
16

12-48926 WASHER

WASHER

570 ₽
17

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel

440 ₽
18

12-20553 WASHER, (.406 x .734 x .063)

WASHER, (.406 x .734 x .063)

120 ₽
19

11-69254 NUT

NUT

430 ₽
20

8M0039081 BOOT, Idle Exhaust

BOOT, Idle Exhaust

2 960 ₽
21

19-64649 PLUG

PLUG

300 ₽
22

27-991734 GASKET

GASKET

1 500 ₽
23

66350001 SEAL (LOWER)
SN# 0T800999 & Below

SEAL (LOWER)
SN# 0T800999 & Below

950 ₽
23

66350001 SEAL (Lower)
SN# 0T801000 & Up

SEAL (Lower)
SN# 0T801000 & Up

950 ₽
24

18276T TUBE, Exhaust

TUBE, Exhaust

23 600 ₽
25

8M0039076 SEAL (UPPER)

SEAL (UPPER)

3 710 ₽
26

812834A2 EXTENSION ASSEMBLY, Exhaust
(135/140/150/XR6/MAGNUM III)(STUD MOUNTING)

EXTENSION ASSEMBLY, Exhaust
(135/140/150/XR6/MAGNUM III)(STUD MOUNTING)

23 510 ₽
27

16-56766 STUD, (.250 x 1.38)

STUD, (.250 x 1.38)

250 ₽
28

12-35044 WASHER, (.281 x .625 x .065) Stainless Steel

WASHER, (.281 x .625 x .065) Stainless Steel

140 ₽
29

11-888500 NUT

NUT

200 ₽
30

879288T71 EXTENSION, Exhaust
(200) (JET)

EXTENSION, Exhaust
(200) (JET)

15 200 ₽
31

32-8M0042788 TUBE, Water
(LONG) (JET)

TUBE, Water
(LONG) (JET)

4 350 ₽
31

32-8M0042790 TUBE, Water
(X-LONG)

TUBE, Water
(X-LONG)

5 800 ₽
32

18233A20 PLATE ASSEMBLY, Driveshaft Housing
(WITHOUT TWO HOLES IN THE BACK OF PLATE)

PLATE ASSEMBLY, Driveshaft Housing
(WITHOUT TWO HOLES IN THE BACK OF PLATE)

68 860 ₽
32

18233A20 PLATE ASSEMBLY, Driveshaft Housing
(WITH TWO HOLES IN THE BACK OF PLATE)

PLATE ASSEMBLY, Driveshaft Housing
(WITH TWO HOLES IN THE BACK OF PLATE)

68 860 ₽
33

8M0043165 SEAL

SEAL

4 140 ₽
34

68011 BRACKET

BRACKET

760 ₽
35

10-878608 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

120 ₽
36

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
37

26-38970 SEAL

SEAL

340 ₽
38

22-328022 PLUG, Pipe (.125-27) Brass

PLUG, Pipe (.125-27) Brass

600 ₽
39

27-183076 GASKET

GASKET

1 930 ₽
40

NSS NOT SOLD SEPARATE, Decal-Counter Rotation

NOT SOLD SEPARATE, Decal-Counter Rotation

0 ₽
41

812834A2 EXTENSION, Exhaust
(135/140/150/XR6/MAGNUM III)(SCREW MOUNTING)

EXTENSION, Exhaust
(135/140/150/XR6/MAGNUM III)(SCREW MOUNTING)

23 510 ₽
42

10-90192 SCREW, (.250-20 x .750) Stainless Steel

SCREW, (.250-20 x .750) Stainless Steel

140 ₽
-

27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included

GASKET SET, Engine, Cylinder head o-rings and seal not included

21 370 ₽
