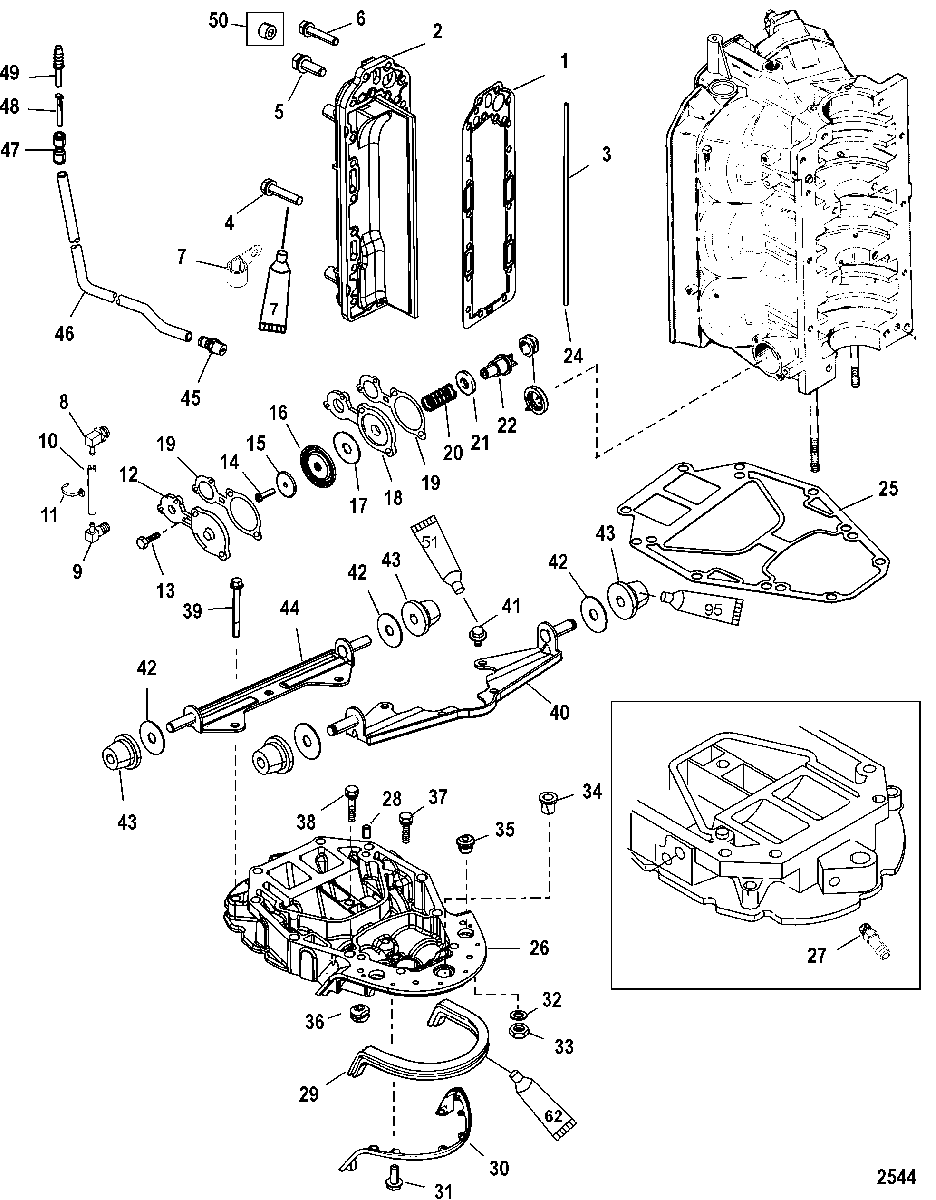

Exhaust Manifold and Exhaust Plate для Mariner - MAGNUM III 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    27-190506 GASKET
    GASKET
  • 2
    828343T3 PLATE, Exhaust Divider
    PLATE, Exhaust Divider
  • 3
    26-814754 SEAL, (12.50 Inches)
    SEAL, (12.50 Inches)
  • 4
    10-8263561 SCREW AND WASHER, (.312-18 x 1.500)
    SCREW AND WASHER, (.312-18 x 1.500)
  • 5
    10-881190 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 6
    10-881892 SCREW, (.312-18 x 1.750)
    SCREW, (.312-18 x 1.750)
  • 7
    54-814634 CLAMP
    CLAMP
  • 8
    22-8144301 FITTING, To Block
    FITTING, To Block
  • 9
    22-920071 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 10
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 26 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 26 Inches)
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 12
    8M0039767 COVER
    COVER
  • 13
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 14
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 15
    12-76451 WASHER
    WASHER
  • 16
    144791 DIAPHRAGM
    DIAPHRAGM
  • 17
    16496 DEFLECTOR, Water
    DEFLECTOR, Water
  • 18
    16497A1 PLATE
    PLATE
  • 19
    27-78690002 GASKET
    SN# 0T800999 & Below
    GASKET
    SN# 0T800999 & Below
  • 19
    27-78690002 GASKET
    SN# 0T801000 & Up
    GASKET
    SN# 0T801000 & Up
  • 20
    24-64878 SPRING
    SPRING
  • 21
    12-85303 WASHER
    WASHER
  • 22
    14480 POPPET
    POPPET
  • 23
    25-64872 GROMMET
    GROMMET
  • 24
    65848 CARRIER
    CARRIER
  • 25
    27-991764 GASKET
    GASKET
  • 26
    18260T2 PLATE ASSEMBLY, Exhaust
    PLATE ASSEMBLY, Exhaust
  • 27
    22-897722 FITTING, Straight
    FITTING, Straight
  • 28
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 29
    8M0043164 SEAL
    SEAL
  • 30
    680101 BRACKET
    BRACKET
  • 31
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 32
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 33
    11-69254 NUT
    NUT
  • 34
    23-27132 BUSHING
    BUSHING
  • 35
    25-19565002 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 35
    25-19565002 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 36
    25-12602002 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 36
    25-12602002 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 37
    10-66727 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 38
    10-68783 SCREW, (.312-18 x 2.50)
    SCREW, (.312-18 x 2.50)
  • 39
    10-898833 SCREW, (.375-16 x 3.50)
    SCREW, (.375-16 x 3.50)
  • 40
    812905T BRACKET ASSEMBLY, Front
    BRACKET ASSEMBLY, Front
  • 41
    10-8055571 SCREW, (.3125-18 x .50)
    SCREW, (.3125-18 x .50)
  • 42
    12-187031 WASHER
    WASHER
  • 43
    25-18778001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 43
    25-18778001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 44
    18578T09 BRACKET ASSEMBLY, Rear
    BRACKET ASSEMBLY, Rear
  • 45
    22-881866 FITTING
    SN# 0T800999 & Below
    FITTING
    SN# 0T800999 & Below
  • 45
    22-881866 FITTING
    SN# 0T801000 & Up
    FITTING
    SN# 0T801000 & Up
  • 46
    32-85978571 TUBING, (44.00 Inches Bulk) (44 Inches Required)
    TUBING, (44.00 Inches Bulk) (44 Inches Required)
  • 47
    22-859747 COUPLER
    COUPLER
  • 48
    22-859732 PLUG
    PLUG
  • 49
    22-859731 FITTING, Adapter
    FITTING, Adapter
  • 50
    22-185981 PLUG, Pipe (.375-18)
    (Use where Applicable)
    PLUG, Pipe (.375-18)
    (Use where Applicable)
  • -
    27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included
    GASKET SET, Engine, Cylinder head o-rings and seal not included
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    823434R00 POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
    POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
  • -
    813043R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
