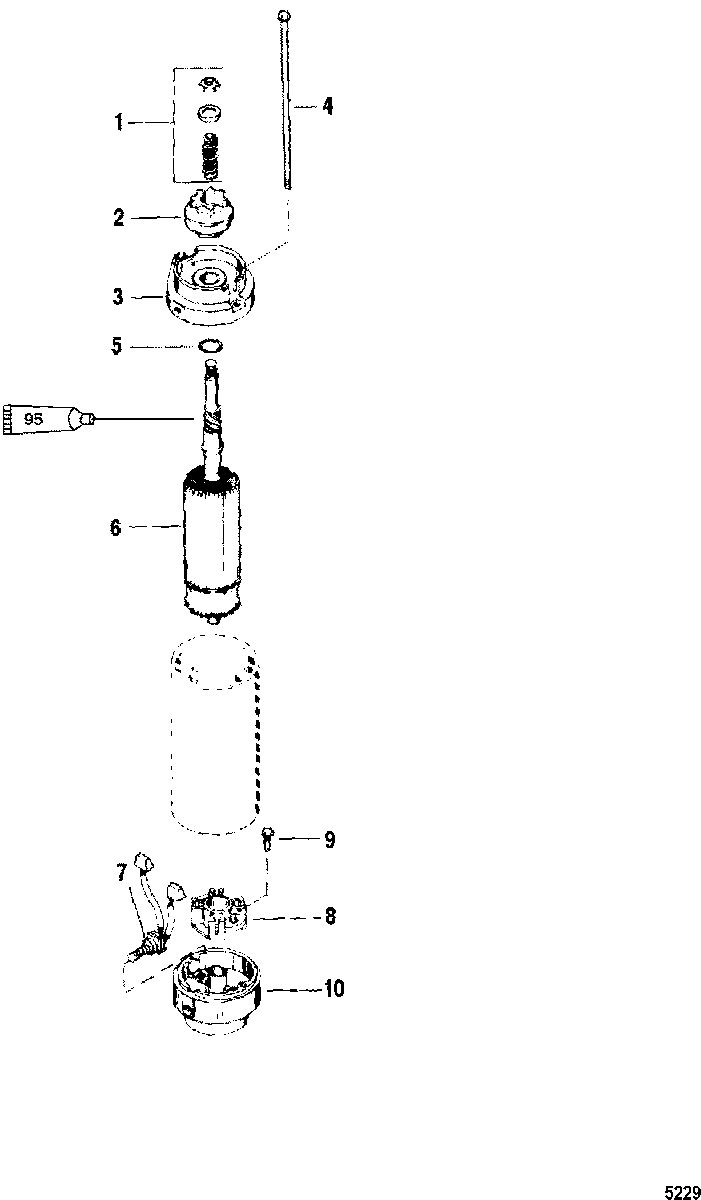

Starter Motor для Mariner - MAGNUM III 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • -
    50-893893 STARTER MOTOR ASSEMBLY
    SN# 0T469023 & Up
    STARTER MOTOR ASSEMBLY
    SN# 0T469023 & Up
  • -
    50-893893 STARTER MOTOR ASSEMBLY
    SN# 0T409000 THRU 0T469022
    STARTER MOTOR ASSEMBLY
    SN# 0T409000 THRU 0T469022
  • -
    50-893893 STARTER MOTOR ASSEMBLY
    SN# 0T408999 & Below
    STARTER MOTOR ASSEMBLY
    SN# 0T408999 & Below
  • 1
    90645 DRIVE KIT
    DRIVE KIT
  • 2
    13310T2 DRIVE
    SN# 0T469023 & Up
    DRIVE
    SN# 0T469023 & Up
  • 2
    13310T1 PINION ASSEMBLY
    SN# 0T469022 & Below
    PINION ASSEMBLY
    SN# 0T469022 & Below
  • 3
    75660 PLATE
    PLATE
  • 4
    10-749681 THRU BOLT
    THRU BOLT
  • 5
    NSS NOT SOLD SEPARATE, Washer (Amercian Bosch #WA3122)
    NOT SOLD SEPARATE, Washer (Amercian Bosch #WA3122)
  • 6
    792161 ARMATURE
    SN# 0T409000 & Up
    ARMATURE
    SN# 0T409000 & Up
  • 6
    79216 ARMATURE
    SN# 0T408999 & Below
    ARMATURE
    SN# 0T408999 & Below
  • 7
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 8
    898265014 HOLDER
    HOLDER
  • 9
    NSS NOT SOLD SEPARATE, Screw (American Bosch #02441-22-SC-30SM)
    NOT SOLD SEPARATE, Screw (American Bosch #02441-22-SC-30SM)
  • 10
    15386001 END CAP
    END CAP
