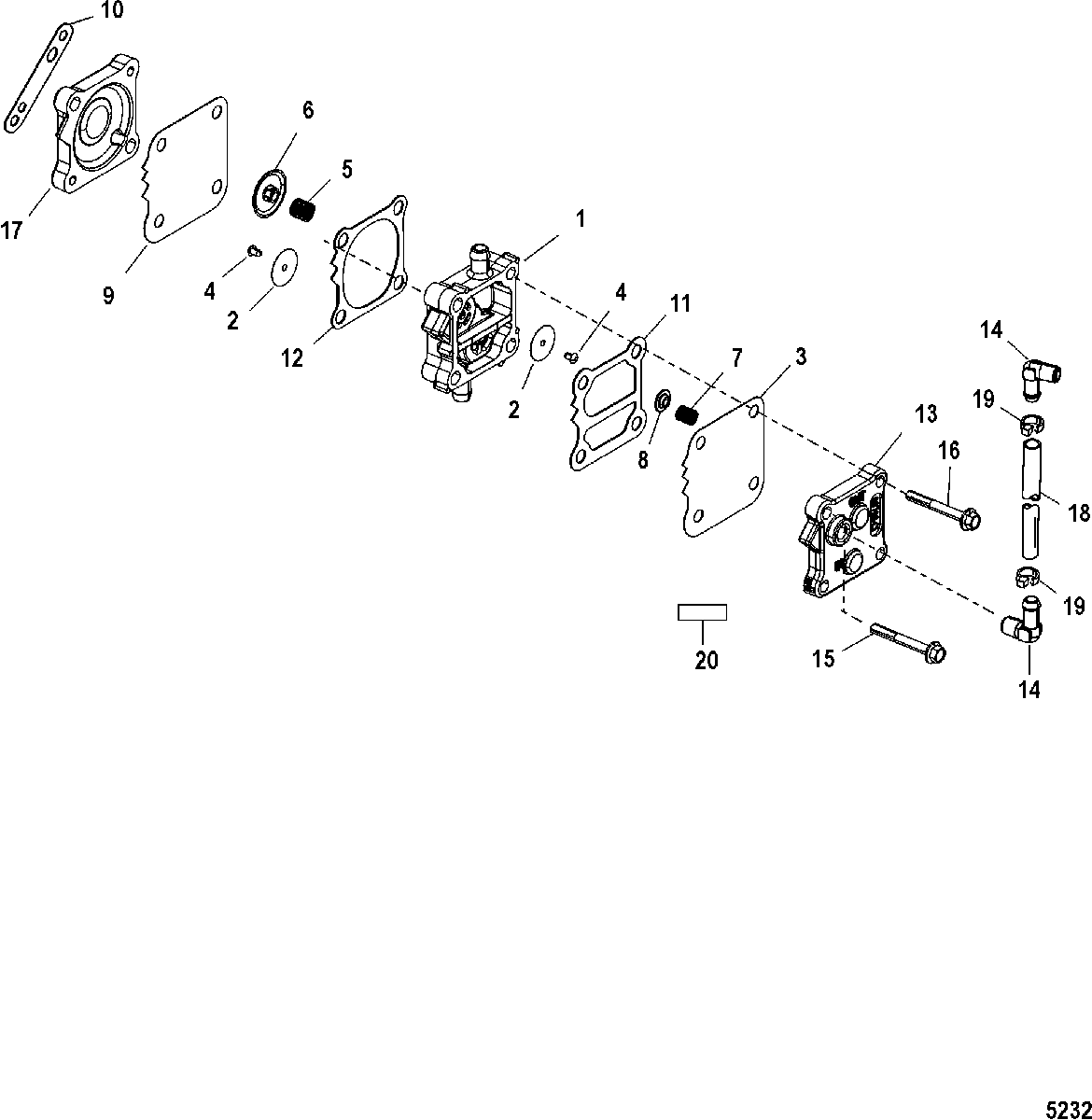

Fuel Pump для Mariner - MAGNUM III 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • -
    14360A78 PUMP KIT, Fuel
    PUMP KIT, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • -
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 2
    NSS NOT SOLD SEPARATE, Disc Check Valve
    NOT SOLD SEPARATE, Disc Check Valve
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    27-987691 GASKET, Base
    GASKET, Base
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 13
    987752 PLATE
    PLATE
  • 14
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 15
    10-82130050 SCREW, (M6 x 50), Pump to Crankcase
    SCREW, (M6 x 50), Pump to Crankcase
  • 16
    10-82104540 SCREW, (M5 x 40), Fuel Pump
    SCREW, (M5 x 40), Fuel Pump
  • 17
    144303 BASE
    BASE
  • 18
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    NSS NOT SOLD SEPARATE, Decal-Assembled in Mexico
    NOT SOLD SEPARATE, Decal-Assembled in Mexico
  • -
    27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included
    GASKET SET, Engine, Cylinder head o-rings and seal not included
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    823434R00 POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
    POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
  • -
    813043R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
