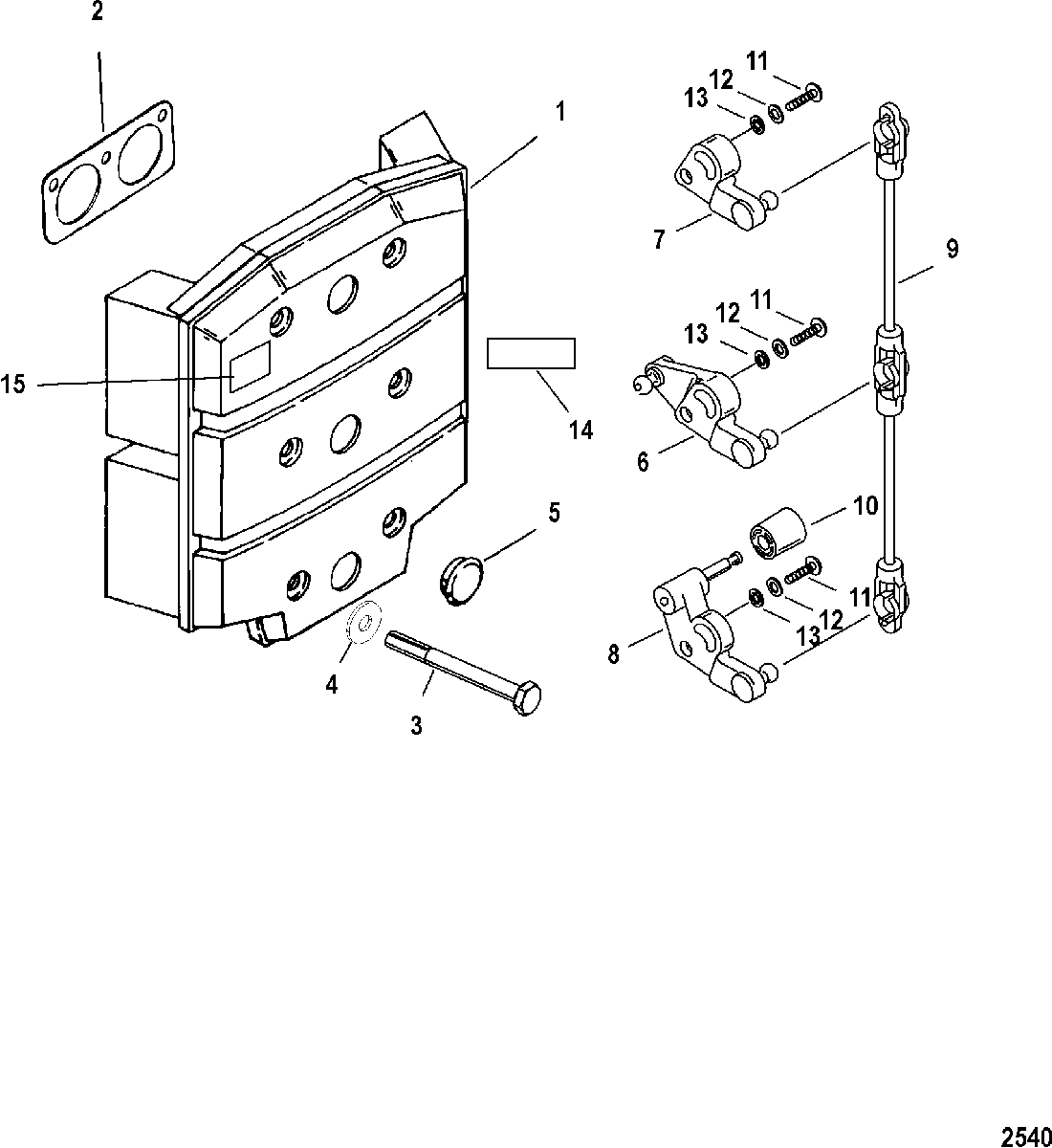

Attenuator Plate and Throttle Levers для Mariner - MAGNUM III 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    817495A1 PLATE ASSEMBLY, Sound Attenuator
    PLATE ASSEMBLY, Sound Attenuator
  • 2
    27-892211 GASKET
    GASKET
  • 3
    10-884891 SCREW, (.250-28 x 2.500) With Nylon Patch - Stainless Steel
    SCREW, (.250-28 x 2.500) With Nylon Patch - Stainless Steel
  • 4
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 5
    19-815784 CAP
    CAP
  • 6
    828277A1 LINKAGE KIT
    LINKAGE KIT
  • 7
    NSS NOT SOLD SEPARATE, Throttle Lever
    NOT SOLD SEPARATE, Throttle Lever
  • 8
    NSS NOT SOLD SEPARATE, Throttle Lever
    NOT SOLD SEPARATE, Throttle Lever
  • 9
    NSS NOT SOLD SEPARATE, Throttle Link
    NOT SOLD SEPARATE, Throttle Link
  • 10
    18178 ROLLER
    ROLLER
  • 11
    10-15124 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
  • 12
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 13
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 14
    37-804668A00 DECAL, EPA Label Information
    (2000)(135)
    DECAL, EPA Label Information
    (2000)(135)
  • 14
    37-804669A00 DECAL, EPA Label Information
    (2000)(150/XR6/MAG.III/200)
    DECAL, EPA Label Information
    (2000)(150/XR6/MAG.III/200)
  • 14
    37-804669A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 14
    37-804669A02 DECAL, EPA Label Information
    (2002)
    DECAL, EPA Label Information
    (2002)
  • 14
    37-804669A03 DECAL, EPA Label Information
    (2003)
    DECAL, EPA Label Information
    (2003)
  • 14
    37-804669A04 DECAL, EPA Label Information
    (2004)
    DECAL, EPA Label Information
    (2004)
  • 14
    37-804669A05 DECAL, EPA Label Information
    (2005)
    DECAL, EPA Label Information
    (2005)
  • 15
    NSS NOT SOLD SEPARATE, Decal-Caution Airbox
    NOT SOLD SEPARATE, Decal-Caution Airbox
  • -
    27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included
    GASKET SET, Engine, Cylinder head o-rings and seal not included
