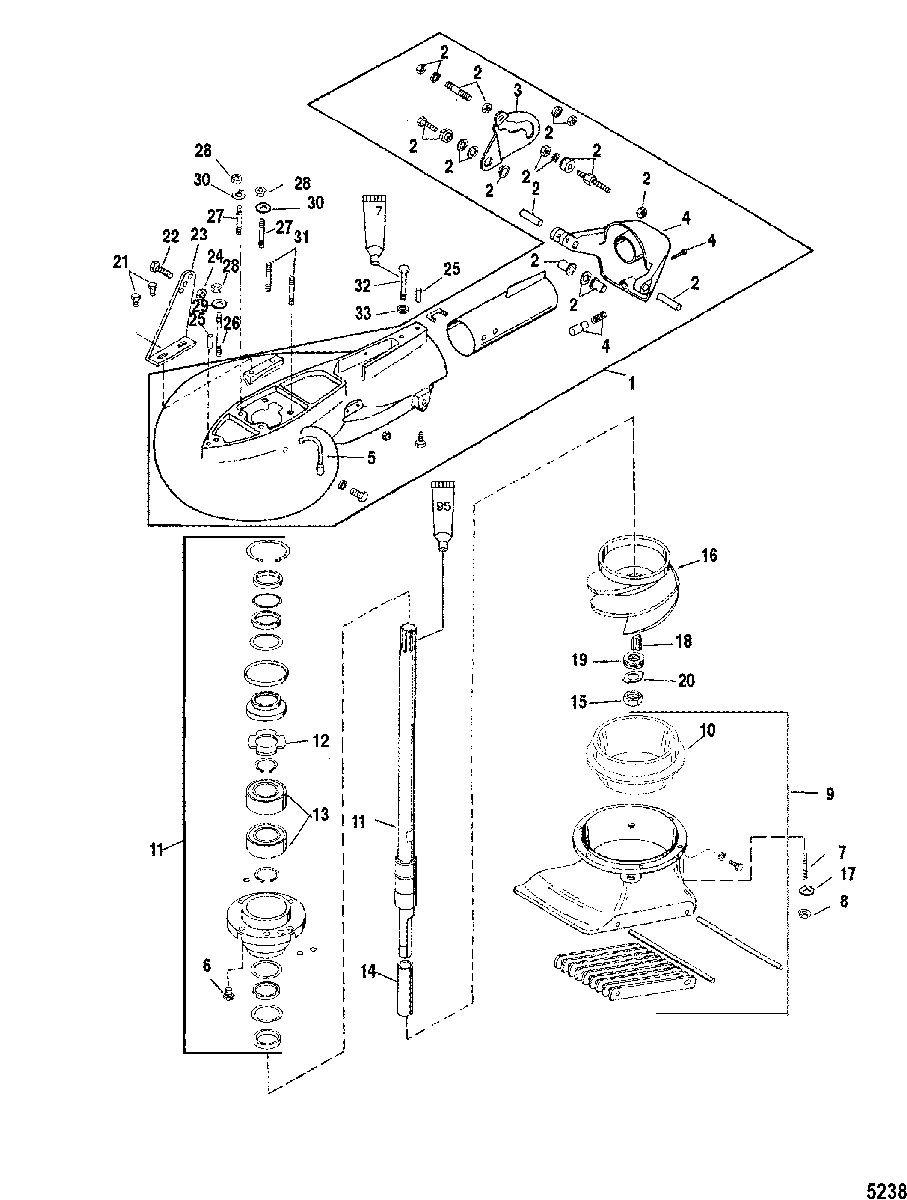

Jet Pump Assembly для Mariner - MAGNUM III 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • -
    856143A3 JET PUMP ASSEMBLY
    JET PUMP ASSEMBLY
  • 1
    803145T HOUSING, Pump
    HOUSING, Pump
  • 2
    878377 SHIFT LINKAGE KIT
    SHIFT LINKAGE KIT
  • 3
    878382 CAM
    CAM
  • 4
    878380 GATE, Reverse - With Bumper
    GATE, Reverse - With Bumper
  • 5
    32-827490 HOSE, Lube
    HOSE, Lube
  • 6
    10-848497 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 7
    16-855840 STUD, (.312-18 x 1.81)
    STUD, (.312-18 x 1.81)
  • 8
    11-82670910 NUT, (.312-18) Stainless Steel
    NUT, (.312-18) Stainless Steel
  • 9
    85576890 HOUSING, Intake
    HOUSING, Intake
  • 10
    855771 LINER
    LINER
  • 11
    45-8M0084524 SHAFT, Drive
    SHAFT, Drive
  • 12
    12-8796522 THRUST WASHER
    THRUST WASHER
  • 13
    30-8796531 BEARING, Ball
    BEARING, Ball
  • 14
    23-8271891 SLEEVE
    SLEEVE
  • 15
    11-8271901 NUT
    NUT
  • 16
    47-803985T IMPELLER
    IMPELLER
  • 17
    12-36001 WASHER
    WASHER
  • 18
    28-801405875 KEY
    KEY
  • 19
    15-801404875 SHIM, Impeller
    SHIM, Impeller
  • 20
    14-801403875 TAB WASHER
    TAB WASHER
  • 21
    10-19923062 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 22
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 23
    801410 BRACKET, Cable Support
    BRACKET, Cable Support
  • 24
    11-82670910 NUT, (.312-18) Stainless Steel
    NUT, (.312-18) Stainless Steel
  • 25
    17-801407 PIN, Dowel
    PIN, Dowel
  • 26
    16-786382 STUD, (.437-14/.437-20 x 3.120)
    STUD, (.437-14/.437-20 x 3.120)
  • 27
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 28
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 29
    12-48926 WASHER
    WASHER
  • 30
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 31
    16-306671 STUD, (.250-20/.250-28 x 3.125)
    STUD, (.250-20/.250-28 x 3.125)
  • 32
    10-68299 SCREW, (.375-16 x 3.00) Stainless Steel
    SCREW, (.375-16 x 3.00) Stainless Steel
  • 33
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
