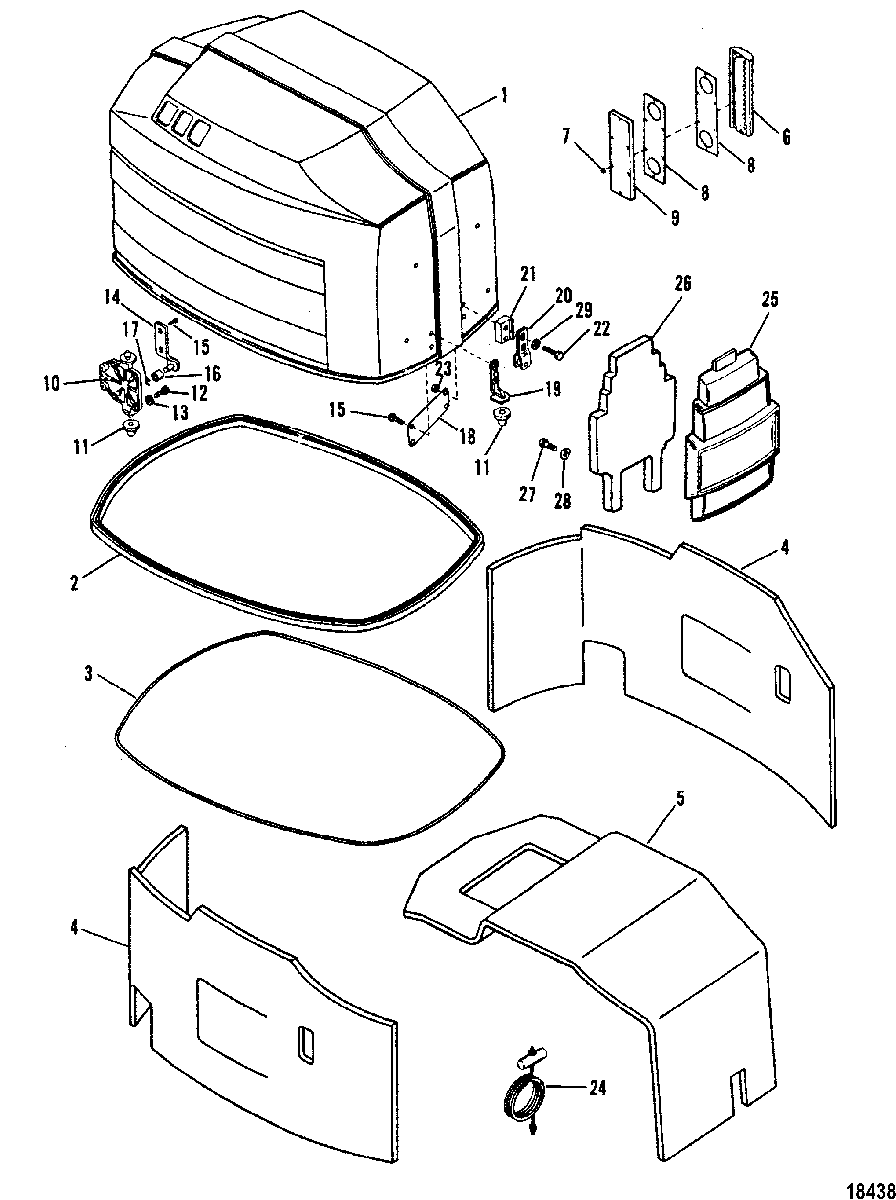

Top Cowl and Front Shield для Mariner - MAGNUM II 0C100861 THRU 0C239552
-
№АртикулНазвание
-
12196-9742T90 TOP COWL ASSEMBLY
(Black - Without Decals)TOP COWL ASSEMBLY
(Black - Without Decals) -
12196-9742A91 TOP COWL ASSEMBLY
(Gray- Without Decals)TOP COWL ASSEMBLY
(Gray- Without Decals) -
2812784 SEALSEAL
-
3815478 SEALSEAL
-
4814823 SOUND BLANKET (SIDE)SOUND BLANKET (SIDE)
-
5814837 SOUND BLANKET (TOP)SOUND BLANKET (TOP)
-
617196A1 SHIELD, AIR INLETSHIELD, AIR INLET
-
711-11316 SPEED NUTSPEED NUT
-
817238 SEAL, AIR INLETSEAL, AIR INLET
-
917194 SHIELD, AIR INLET (PORT)SHIELD, AIR INLET (PORT)
-
917195 SHIELD, AIR INLET (STARBOARD)SHIELD, AIR INLET (STARBOARD)
-
10184741 BRACKET, REARBRACKET, REAR
-
1125-18506001 GROMMETGROMMET
-
1210-28636 SCREW, (.250-20 x .750), REAR BRACKETSCREW, (.250-20 x .750), REAR BRACKET
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, REAR BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, REAR BRACKET SCREW
-
14813096A2 HOOK
(Order 813096A1 Rear Latch Kit when replacing non-roller components. A Product Improvement)HOOK
(Order 813096A1 Rear Latch Kit when replacing non-roller components. A Product Improvement) -
1510-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
16815263 ROLLERROLLER
-
1753-13194 RING, RetainingRING, Retaining
-
1812-56720 PLATEPLATE
-
19187021 LOCATORLOCATOR
-
20893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
21813076A2 SPACERSPACER
-
2210-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
2311-82670910 NUT, (.312-18)NUT, (.312-18)
-
2447341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
-
2518755A1 FRONT SHIELD ASSEMBLY
(Black - Without Decals)FRONT SHIELD ASSEMBLY
(Black - Without Decals) -
2518755A2 FRONT SHIELD ASSEMBLY
(Gray - Without Decals)FRONT SHIELD ASSEMBLY
(Gray - Without Decals) -
26813562 SEALSEAL
-
2710-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
2812-42118 WASHERWASHER
-
2912-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
-813096A1 REAR LATCH KIT
(Product Improvement to replace 813096 Hook)REAR LATCH KIT
(Product Improvement to replace 813096 Hook)
