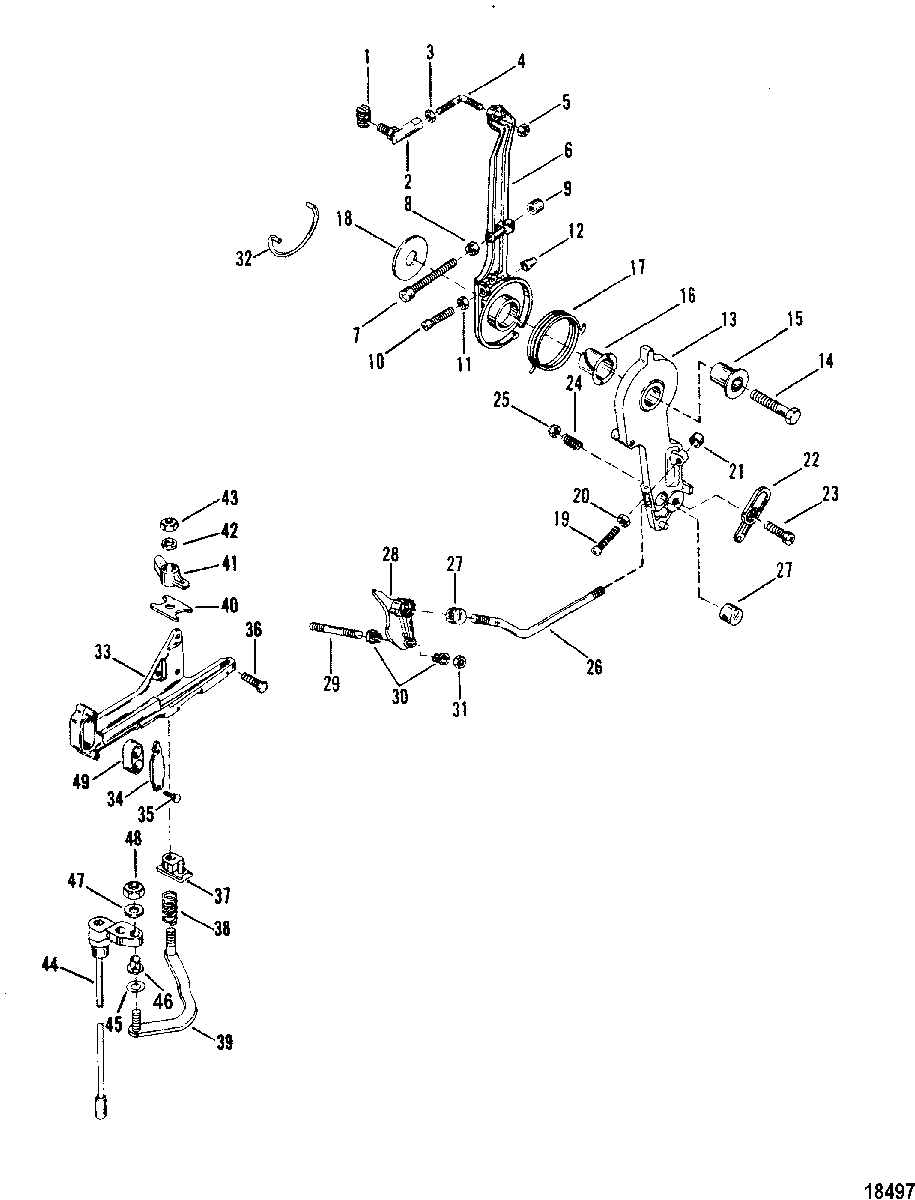

Throttle Lever and Shift Shaft для Mariner - MAGNUM II 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    74897T PIVOT, TRIGGER PLATE
    PIVOT, TRIGGER PLATE
  • 2
    62459T BALL JOINT ASSEMBLY, TRIGGER PLATE
    BALL JOINT ASSEMBLY, TRIGGER PLATE
  • 3
    11-45076 NUT, (#10-32) Brass, LINK ROD
    NUT, (#10-32) Brass, LINK ROD
  • 4
    76035 ROD, TRIGGER PLATE
    ROD, TRIGGER PLATE
  • 5
    11-46438 NUT, (#10-32), BALL JOINT
    NUT, (#10-32), BALL JOINT
  • 6
    41094A3 LEVER ASSEMBLY, SPARK ADVANCE
    LEVER ASSEMBLY, SPARK ADVANCE
  • 7
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 8
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 9
    26852 CAP, Nylon
    CAP, Nylon
  • 10
    10-69560 SCREW, (.190-32 x 1.250), SPARK ADVANCE LEVER - STOP
    SCREW, (.190-32 x 1.250), SPARK ADVANCE LEVER - STOP
  • 11
    11-68219 NUT, (#10-32) Stainless Steel, SPARK ADVANCE LEVER STOP SCREW
    NUT, (#10-32) Stainless Steel, SPARK ADVANCE LEVER STOP SCREW
  • 12
    48039 CAP
    CAP
  • 13
    410952 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 14
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 15
    23-55164 BUSHING, THROTTLE LEVER
    BUSHING, THROTTLE LEVER
  • 16
    23-55171 BUSHING
    BUSHING
  • 17
    24-68784 SPRING
    SPRING
  • 18
    12-46765 WASHER
    WASHER
  • 19
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 20
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 21
    26852 CAP, Nylon
    CAP, Nylon
  • 22
    39483 LATCH, CABLE
    LATCH, CABLE
  • 23
    10-69026 SCREW, (.250-28 x .880)
    SCREW, (.250-28 x .880)
  • 24
    24-20099 SPRING
    SPRING
  • 25
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 26
    79949 ROD, THROTTLE CONTROL
    ROD, THROTTLE CONTROL
  • 27
    60572 BARREL
    BARREL
  • 28
    178861 CAM, Throttle
    CAM, Throttle
  • 29
    16-20353 STUD, (.250-28 x 1.750), THROTTLE CAM ATTACHING
    STUD, (.250-28 x 1.750), THROTTLE CAM ATTACHING
  • 30
    23-26856 BUSHING, THROTTLE CAM
    BUSHING, THROTTLE CAM
  • 31
    11-36069 NUT, THROTTLE CAM STUD
    NUT, THROTTLE CAM STUD
  • 32
    24-41050 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 33
    814283A2 BRACKET, ANCHOR-CONTROL CABLES
    BRACKET, ANCHOR-CONTROL CABLES
  • 34
    98889 LATCH, CONTROL CABLE
    LATCH, CONTROL CABLE
  • 35
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 36
    10-53167T SCREW, (.312-18 x .880)
    SCREW, (.312-18 x .880)
  • 37
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 38
    24-20099 SPRING
    SPRING
  • 39
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 40
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 41
    8M0036768 LATCH
    LATCH
  • 42
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 43
    11-36069 NUT
    NUT
  • 44
    79932A16 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 45
    13-29720 WAVE WASHER
    WAVE WASHER
  • 46
    23-26600 BUSHING, NYLON
    BUSHING, NYLON
  • 47
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 48
    11-36069 NUT
    NUT
  • 49
    39519 CUP
    CUP
