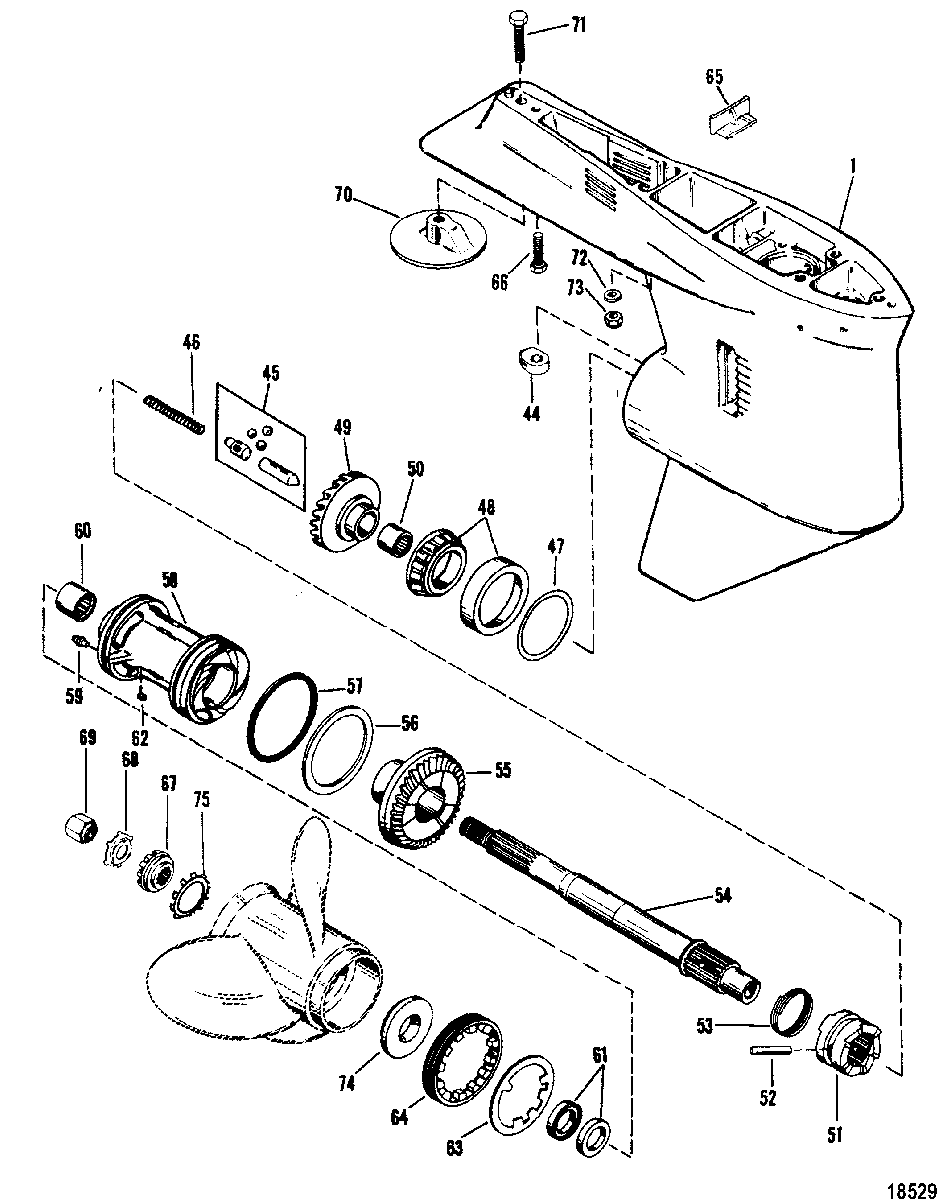

Gear Housing, Propeller Shaft - Casting # is 1655-9572C для Mariner - MAGNUM II 0C100861 THRU 0C239552
-
№АртикулНазвание
-
-1674-814247T3 GEAR HOUSING ASSEMBLY (LONG)(BLACK)GEAR HOUSING ASSEMBLY (LONG)(BLACK)
-
-1674-814247T3 GEAR HOUSING ASSEMBLY (LONG)(GRAY)GEAR HOUSING ASSEMBLY (LONG)(GRAY)
-
11674-814247T8 GEAR HOUSING ASSEMBLY (BLACK)GEAR HOUSING ASSEMBLY (BLACK)
-
11674-814247T9 GEAR HOUSING ASSEMBLY (GRAY)GEAR HOUSING ASSEMBLY (GRAY)
-
44760394 CAM, Shift ControlCAM, Shift Control
-
45850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
4624-30622 SPRINGSPRING
-
4715-8M0063266 SHIM SETSHIM SET
-
4831-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
4943-16279A2 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5031-30895T BEARING, NeedleBEARING, Needle
-
5152-822539T RATCHETRATCHET
-
5217-8M0100263 PIN, CrossPIN, Cross
-
5324-30893 SPRINGSPRING
-
5444-12238T PROPELLER SHAFTPROPELLER SHAFT
-
55NSS NOT SOLD SEPARATE, REVERSE GEAR (PART OF 43-16279A2)NOT SOLD SEPARATE, REVERSE GEAR (PART OF 43-16279A2)
-
5612-76358 THRUST WASHERTHRUST WASHER
-
5725-29976 O-RINGO-RING
-
5841529T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5922-98727 FITTING, GreaseFITTING, Grease
-
6031-30956T BEARING, NeedleBEARING, Needle
-
6126-76868 SEALSEAL
-
6228-30281 KEYKEY
-
6314-52700 TAB WASHERTAB WASHER
-
6452699 COVERCOVER
-
658M0039169 FILLER BLOCKFILLER BLOCK
-
6610-30206 SCREW, (.375-16 x 1.00) Stainless SteelSCREW, (.375-16 x 1.00) Stainless Steel
-
6712-31211Q03 WASHER, SplinedWASHER, Splined
-
6814-816629Q TAB WASHERTAB WASHER
-
6911-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
7097-15300 TRIM TAB, AnodicTRIM TAB, Anodic
-
7110-15797 SCREWSCREW
-
7212-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
7311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
7413191Q01 THRUST WASHERTHRUST WASHER
-
7513-423511 LOCKWASHER, ToothedLOCKWASHER, Toothed
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
-
-26-89238A2 SEAL KITSEAL KIT
