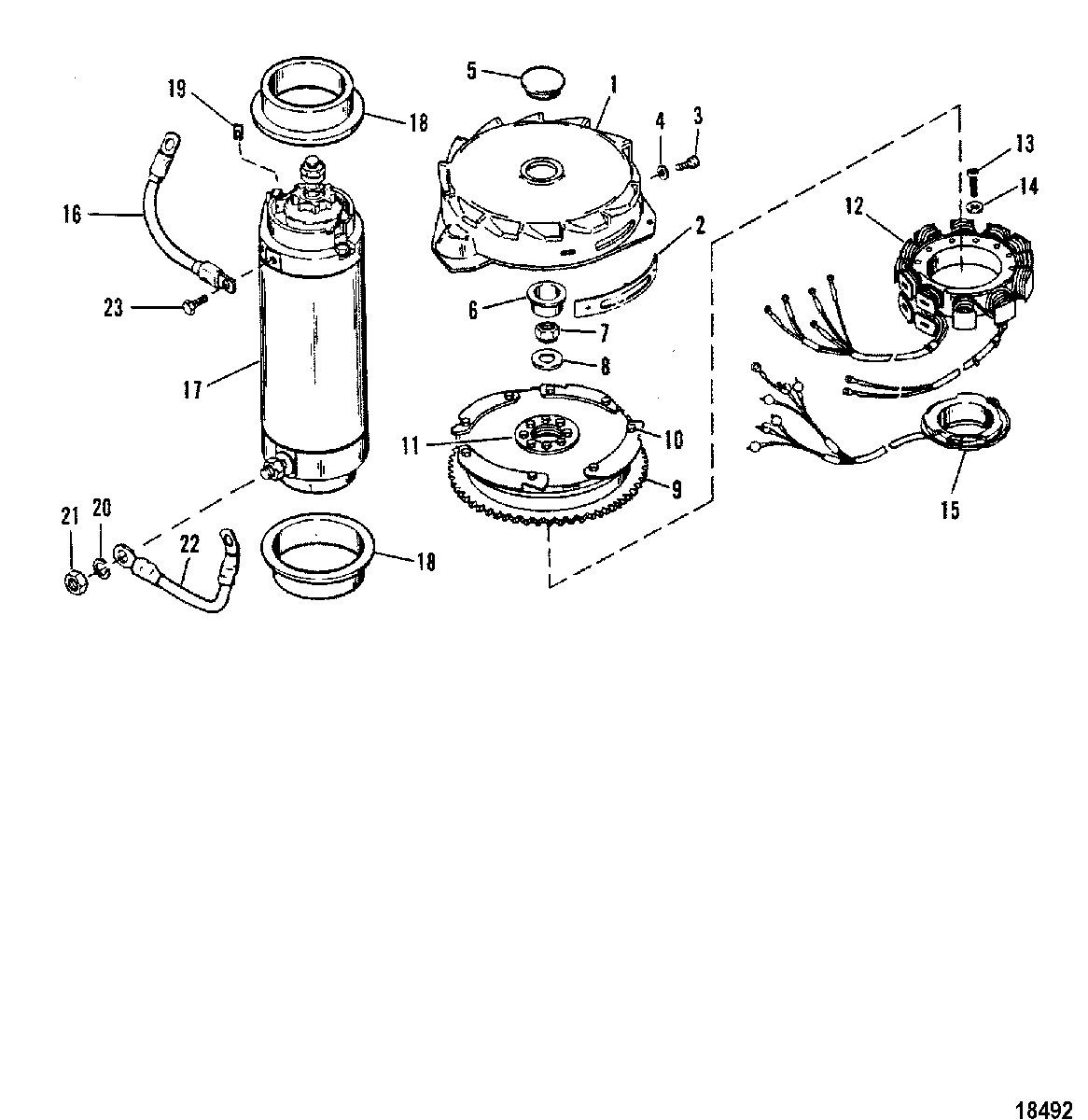

Flywheel/Starter Motor для Mariner - MAGNUM II 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    18896A1 COVER KIT, Flywheel
    COVER KIT, Flywheel
  • 2
    79022 MARKER, Timing
    MARKER, Timing
  • 3
    10-37572 SCREW, (.190-32 x .380), Timing Marker
    SCREW, (.190-32 x .380), Timing Marker
  • 4
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, Timing Marker Screw
    WASHER, (.203 x .562 x .060) Stainless Steel, Timing Marker Screw
  • 5
    19-89219001 PLUG, Flywheel Cover
    PLUG, Flywheel Cover
  • 6
    19-45907 PLUG, Yellow, Flywheel
    PLUG, Yellow, Flywheel
  • 7
    11-52901 NUT, (.625-18), Flywheel
    NUT, (.625-18), Flywheel
  • 8
    12-33001 WASHER, (.641 x 1.250 x .190), Flywheel
    WASHER, (.641 x 1.250 x .190), Flywheel
  • 9
    271-859238T16 FLYWHEEL
    FLYWHEEL
  • 10
    10-32417 SCREW, (.250-28 x .625), Flywheel Plate
    SCREW, (.250-28 x .625), Flywheel Plate
  • 11
    10-68997 SCREW, (.312-24 x .750), Flywheel Hub
    SCREW, (.312-24 x .750), Flywheel Hub
  • 12
    398-9610A5 STATOR
    STATOR
  • 13
    10-90045 SCREW, (#10-32 x 1.375), Stator
    SCREW, (#10-32 x 1.375), Stator
  • 14
    13-26996 LOCKWASHER, (#10) Stainless Steel, Stator Screw
    LOCKWASHER, (#10) Stainless Steel, Stator Screw
  • 15
    96455A9 PLATE ASSEMBLY, Trigger
    PLATE ASSEMBLY, Trigger
  • 16
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, Plate to Starter Motor
    CABLE ASSEMBLY, (6.00 Inches) Black, Plate to Starter Motor
  • 17
    50-893893 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 18
    23-8M0034918 COLLAR, Starter Motor
    COLLAR, Starter Motor
  • 19
    8M0043376 STOP, Rubber, Rubber-Starter Motor
    STOP, Rubber, Rubber-Starter Motor
  • 20
    13-26992 LOCKWASHER, (.250) Stainless Steel, Starter Motor to Terminal
    LOCKWASHER, (.250) Stainless Steel, Starter Motor to Terminal
  • 21
    11-20890 NUT, (.250-20), Starter Motor Terminal
    NUT, (.250-20), Starter Motor Terminal
  • 22
    84-93388A14 CABLE ASSEMBLY, Black, Solenoid to Starter Motor
    CABLE ASSEMBLY, Black, Solenoid to Starter Motor
  • 23
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Cable to Starer Motor
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Cable to Starer Motor
