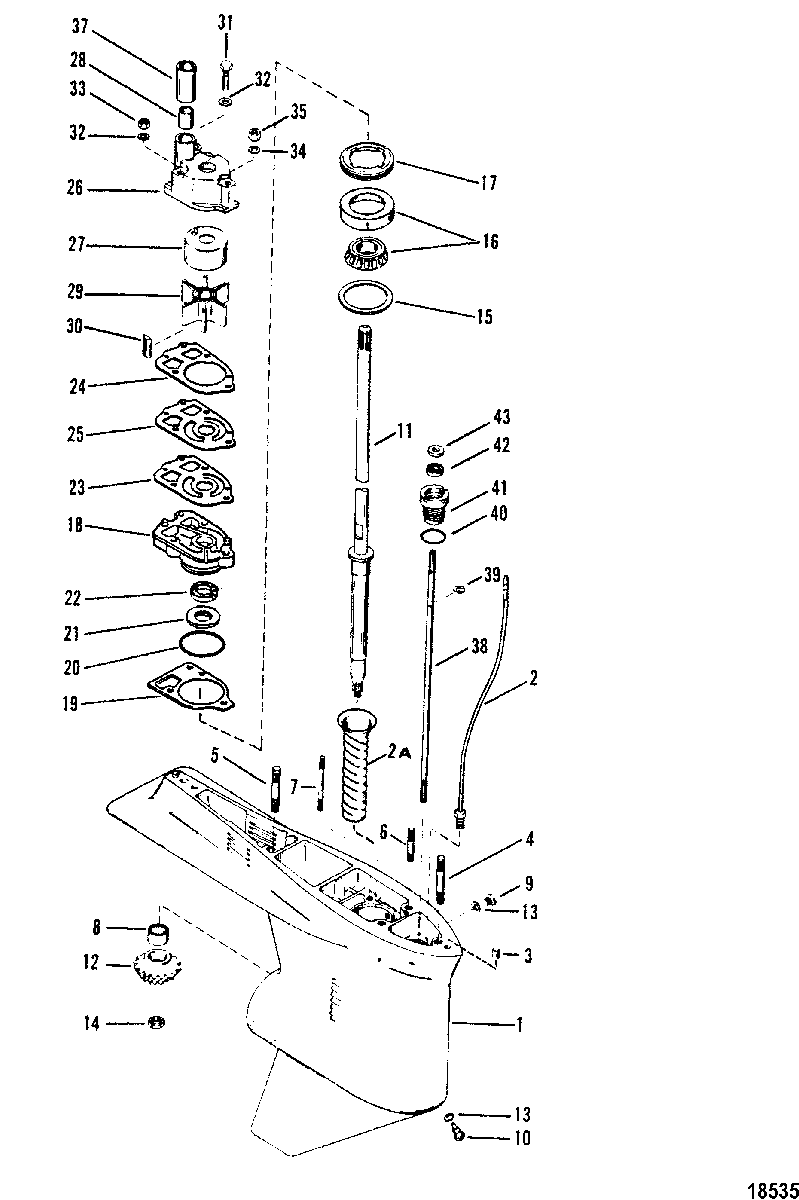

Gear Housing(Driveshaft-Casting # is1674-814247C) для Mariner - MAGNUM II 0C100861 THRU 0C239552
-
№АртикулНазвание
-
-1674-814247T3 GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Black (Complete)GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Black (Complete)
-
-1674-814247T3 GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Gray (Complete)GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Gray (Complete)
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - BlackGEAR HOUSING ASSEMBLY, Basic - Black
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - GrayGEAR HOUSING ASSEMBLY, Basic - Gray
-
222-85822A10 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
2A23-43998 SLEEVESLEEVE
-
317-43044 PIN, DowelPIN, Dowel
-
416-786382 STUD, (.438 x 3.12)STUD, (.438 x 3.12)
-
516-8M0133358 STUD, (.44 x 2.06)STUD, (.44 x 2.06)
-
616-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
831-35934A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
910-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
1022-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
1145-815168 DRIVESHAFTDRIVESHAFT
-
12NSS NOT SOLD SEPARATE, PINION GEAR (PART OF 43-16279A2)NOT SOLD SEPARATE, PINION GEAR (PART OF 43-16279A2)
-
1312-191833 WASHER, FiberWASHER, Fiber
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
1515-8M0063267 SHIM SETSHIM SET
-
1631-36387A1 BEARING ASSEMBLY, Roller/CupBEARING ASSEMBLY, Roller/Cup
-
178245191 NUTNUT
-
1846-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-426311 GASKETGASKET
-
2025-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2126-89238 SEAL, OilSEAL, Oil
-
2226-16977 SEAL, OilSEAL, Oil
-
2327-8M0090319 GASKET, LOWERGASKET, LOWER
-
2427-858524 GASKET, UPPERGASKET, UPPER
-
25324351 FACE PLATEFACE PLATE
-
2646-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2748752T INSERTINSERT
-
2826-38970 SEAL, RUBBERSEAL, RUBBER
-
2947-89984T3 IMPELLERIMPELLER
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3311-8267119 NUT, (.250-28)NUT, (.250-28)
-
3412-36001 WASHERWASHER
-
3511-13436 NUTNUT
-
3723-29804T SLEEVESLEEVE
-
388152641 SHIFT SHAFTSHIFT SHAFT
-
3953-29641 E RINGE RING
-
4025-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4123-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4226-8164641 SEAL, OilSEAL, Oil
-
4312-77674 WASHER, RUBBER -SHIFT SHAFT BUSHINGWASHER, RUBBER -SHIFT SHAFT BUSHING
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
-
-26-89238A2 SEAL KITSEAL KIT
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
