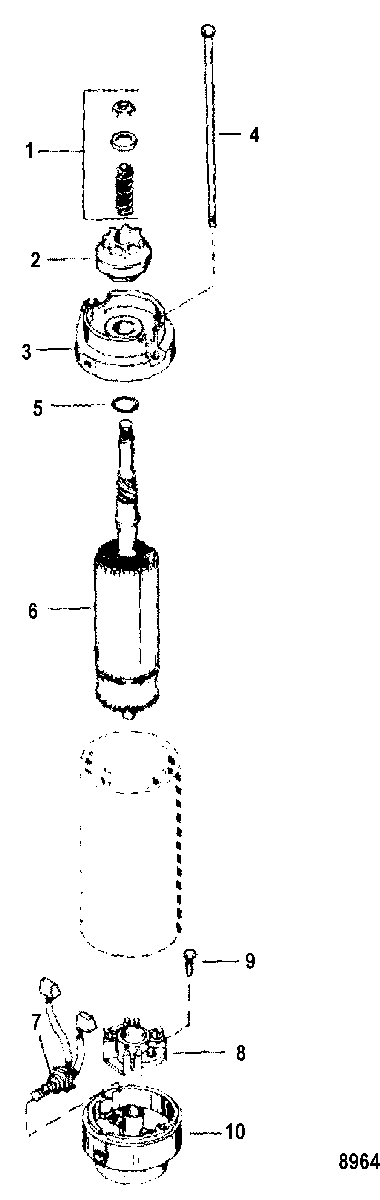

Starter Motor Assembly для Mariner - MAGNUM II 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • -
    50-893893 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    90645 DRIVE KIT
    DRIVE KIT
  • 2
    13310T1 PINION ASSEMBLY, Drive
    PINION ASSEMBLY, Drive
  • 3
    75660 PLATE, Drive End
    PLATE, Drive End
  • 4
    10-74968 BOLT, Thru
    BOLT, Thru
  • 5
    NSS NOT SOLD SEPARATE, Washer-Thru Bolt
    (American Bosh #WA3122)
    NOT SOLD SEPARATE, Washer-Thru Bolt
    (American Bosh #WA3122)
  • 6
    79216 ARMATURE
    ARMATURE
  • 7
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 8
    898265014 HOLDER, Brush
    HOLDER, Brush
  • 9
    10-68586 SCREW, Brush and Holder
    SCREW, Brush and Holder
  • 10
    15386001 END CAP, Commutator
    END CAP, Commutator
