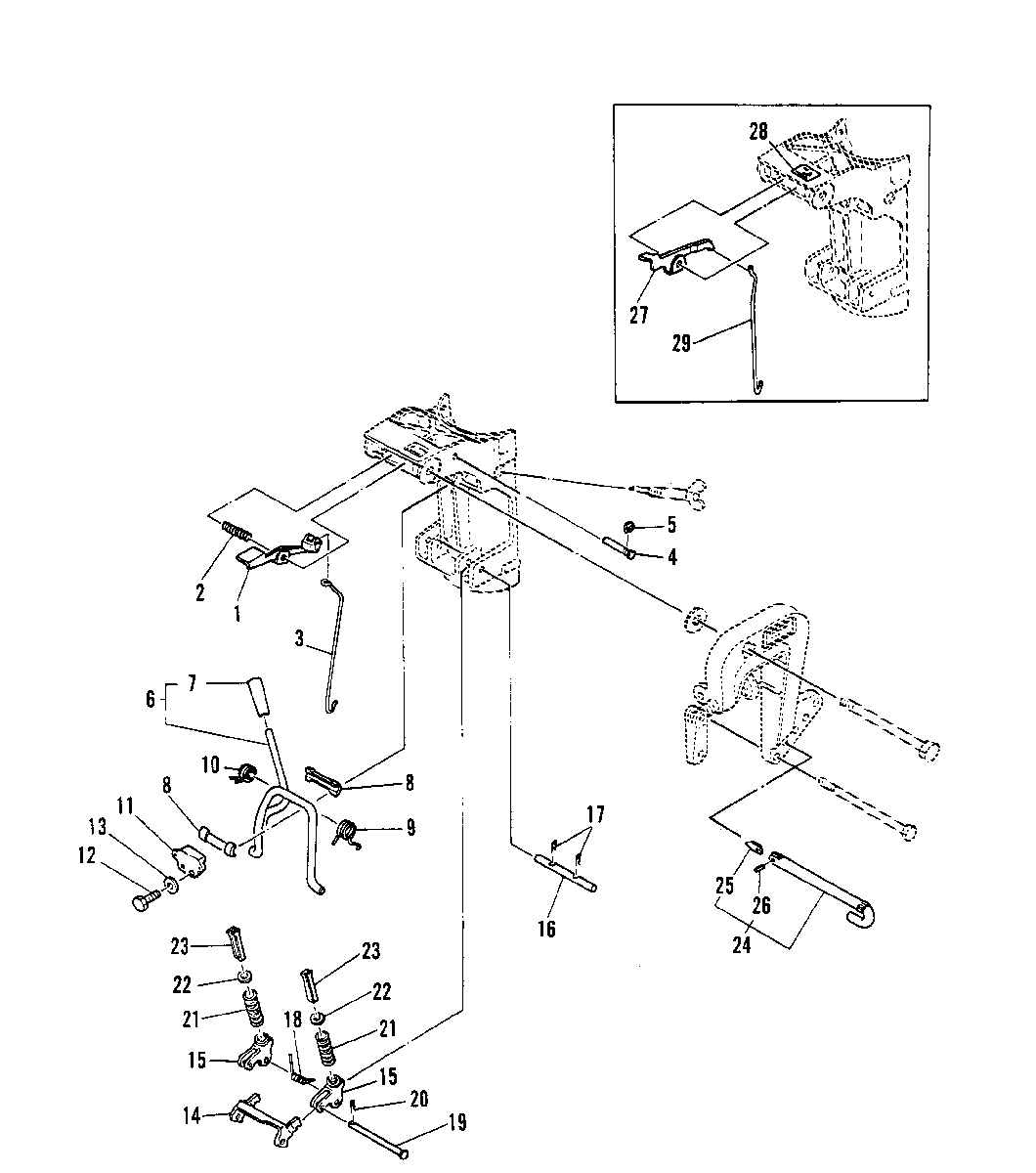

REVERSE LOCK для Mariner - 8B 677-000101 AND UP

  • №
    Артикул
    Название
  • 1
    84664M LEVER, TILT
    SERIAL 00012921-09999999
    LEVER, TILT
    SERIAL 00012921-09999999
  • 2
    24-82090M SPRING
    SERIAL 00012921-09999999
    SPRING
    SERIAL 00012921-09999999
  • 3
    84665M ROD, TILT LOCK
    SERIAL 00012921-09999999
    ROD, TILT LOCK
    SERIAL 00012921-09999999
  • 4
    17-84666M PIN
    SERIAL 00012921-09999999
    PIN
    SERIAL 00012921-09999999
  • 5
    53-82327M SNAP RING
    SERIAL 00012921-09999999
    SNAP RING
    SERIAL 00012921-09999999
  • 6
    80519M TILT STOP LEVER ASS'Y
    TILT STOP LEVER ASS'Y
  • 7
    80100M KNOB, TILT
    KNOB, TILT
  • 8
    23-80097M BUSHING
    BUSHING
  • 9
    24-82111M SPRING
    SPRING
  • 10
    24-82110M SPRING
    SPRING
  • 11
    80976M BRACKET, TILT
    BRACKET, TILT
  • 12
    10-82405M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    80522M PLATE, TILT LOCK
    PLATE, TILT LOCK
  • 15
    80523M PLATE, TILT LOCK
    PLATE, TILT LOCK
  • 16
    80527M SHAFT, REVERSE LOCK
    SHAFT, REVERSE LOCK
  • 17
    18-82049M PIN
    PIN
  • 18
    24-82112M SPRING
    SPRING
  • 19
    17-81883M PIN
    PIN
  • 20
    18-82051M PIN
    PIN
  • 21
    24-82097M SPRING (SHORT AND LONG)
    SPRING (SHORT AND LONG)
  • 21
    24-83749M SPRING (ULTRA LONG AND SUPER ULTRA LONG)
    SPRING (ULTRA LONG AND SUPER ULTRA LONG)
  • 22
    80525M STOP
    STOP
  • 23
    80521M ARM, TILT LOCK
    ARM, TILT LOCK
  • 24
    17-80266M TILT PIN ASS'Y
    TILT PIN ASS'Y
  • 25
    82857M STOPPER PLATE
    STOPPER PLATE
  • 26
    17-82144M PIN, ROLL
    PIN, ROLL
  • 27
    83049M LEVER, TILT
    SERIAL 00000000-00012920
    LEVER, TILT
    SERIAL 00000000-00012920
  • 28
    37-83059M INDICATOR, TILT
    SERIAL 00000000-00012920
    INDICATOR, TILT
    SERIAL 00000000-00012920
  • 29
    80524M ROD, TILT LOCK
    SERIAL 00000000-00012920
    ROD, TILT LOCK
    SERIAL 00000000-00012920
