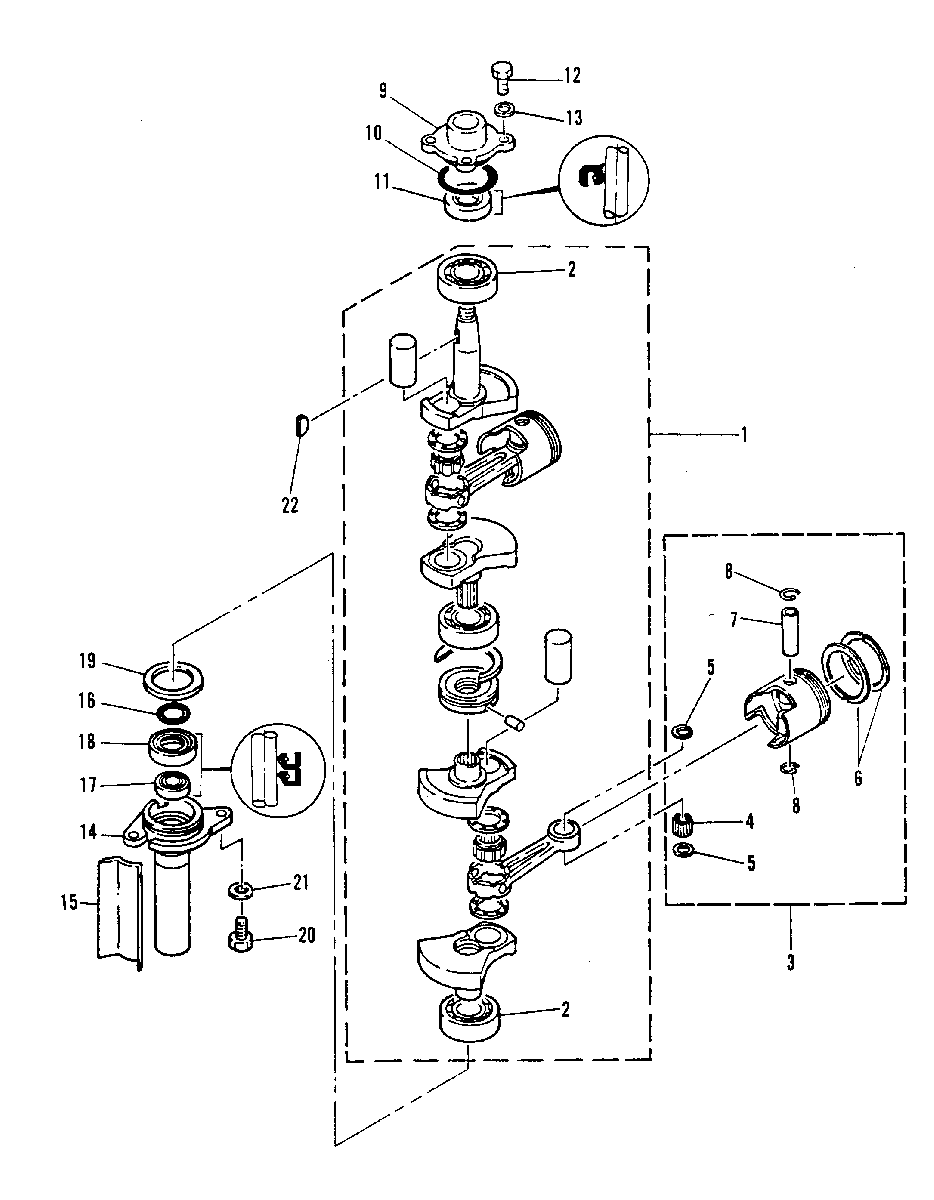

CRANKSHAFT AND PISTON для Mariner - 8B 677-000101 AND UP

  • №
    Артикул
    Название
  • 1
    463-9380M CRANKSHAFT ASS'Y
    CRANKSHAFT ASS'Y
  • 2
    30-18859T BEARING
    BEARING
  • 3
    761-8224M PISTON ASS'Y (STANDARD)
    PISTON ASS'Y (STANDARD)
  • 3
    761-8225M PISTON ASS'Y (1ST O.S. 51.25 MM)
    PISTON ASS'Y (1ST O.S. 51.25 MM)
  • 3
    761-8226M PISTON ASS'Y (2ND O.S. 51.50 MM)
    PISTON ASS'Y (2ND O.S. 51.50 MM)
  • 4
    29-82350M BEARING, NEEDLE
    BEARING, NEEDLE
  • 5
    12-81816M WASHER
    WASHER
  • 6
    39-80422T PISTON RING SET (STANDARD)
    PISTON RING SET (STANDARD)
  • 6
    39-80423T PISTON RING SET (1ST O.S. 51.25MM)
    PISTON RING SET (1ST O.S. 51.25MM)
  • 6
    39-80424M PISTON RING SET (2ND O.S. 51.50MM)
    PISTON RING SET (2ND O.S. 51.50MM)
  • 7
    41-80005M PIN, PISTON
    PIN, PISTON
  • 8
    53-82342M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 9
    83246M HOUSING, OIL SEAL UPPER
    HOUSING, OIL SEAL UPPER
  • 10
    25-82276M O-RING
    O-RING
  • 11
    26-18843M OIL SEAL, UPPER
    OIL SEAL, UPPER
  • 12
    10-82423M BOLT
    BOLT
  • 13
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 14
    814493M HOUSING, OIL SEAL LOWER
    SERIAL 00020251-09999999
    HOUSING, OIL SEAL LOWER
    SERIAL 00020251-09999999
  • 14
    83248M HOUSING, OIL SEAL LOWER
    SERIAL 00000000-00020250
    HOUSING, OIL SEAL LOWER
    SERIAL 00000000-00020250
  • 15
    26-94662M SEAL
    SEAL
  • 16
    25-95602M O-RING
    O-RING
  • 17
    26-82165M OIL SEAL
    OIL SEAL
  • 18
    26-18843M OIL SEAL, LOWER
    OIL SEAL, LOWER
  • 19
    23-81841M WASHER
    WASHER
  • 20
    10-826957M BOLT
    BOLT
  • 21
    12-82214M WASHER
    WASHER
  • 22
    28-893761 KEY, FLYWHEEL
    KEY, FLYWHEEL
