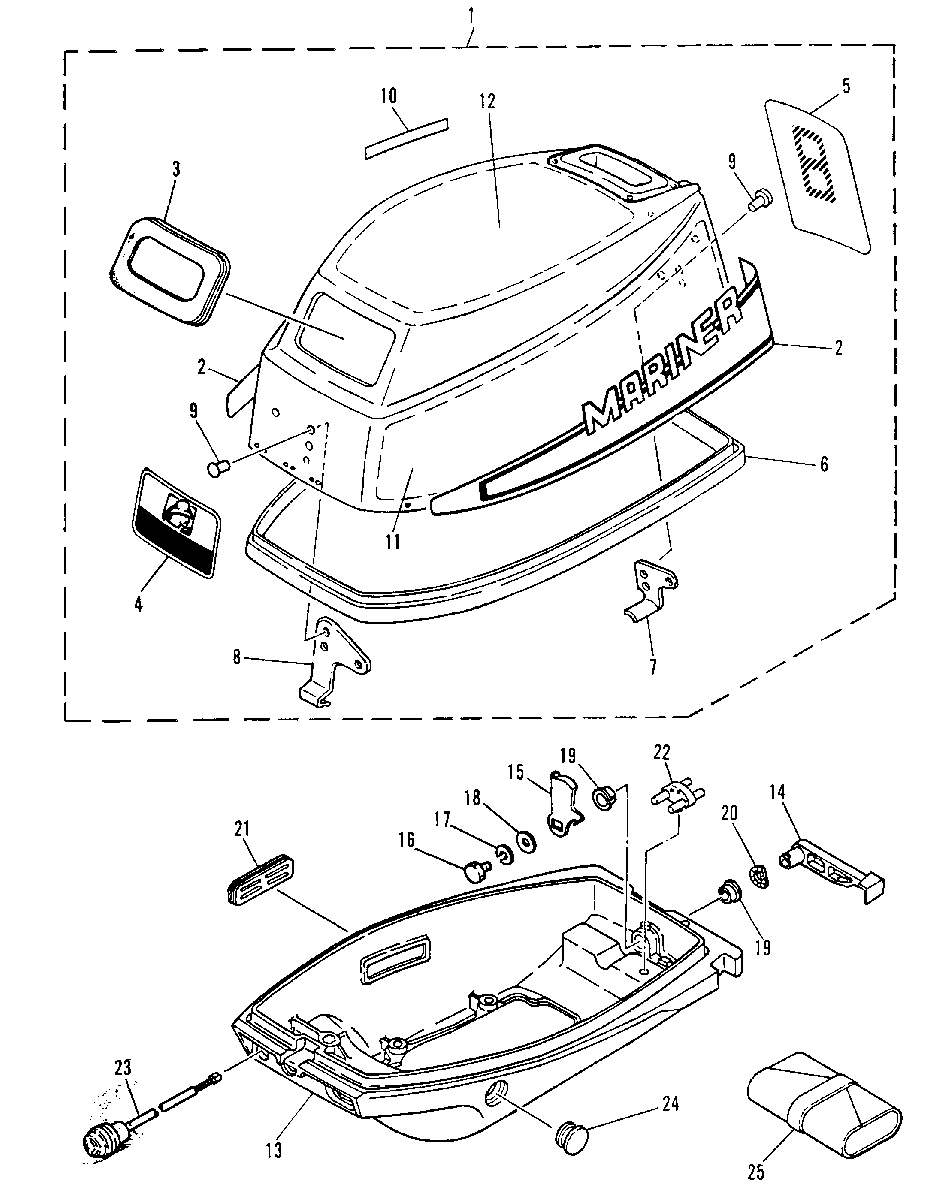

COWLING для Mariner - 8B 677-000101 AND UP

  • №
    Артикул
    Название
  • 1
    2168-9378M TOP COWLING ASS'Y
    SERIAL 00020251-09999999
    TOP COWLING ASS'Y
    SERIAL 00020251-09999999
  • 1
    2168-8029M TOP COWLING ASS'Y
    SERIAL 00000000-00020250
    TOP COWLING ASS'Y
    SERIAL 00000000-00020250
  • 2
    37-95400M DECAL, SIDE SET
    SERIAL 00039056-09999999
    DECAL, SIDE SET
    SERIAL 00039056-09999999
  • 2
    37-83061M DECAL, SIDE SET
    SERIAL 00000000-00039055
    DECAL, SIDE SET
    SERIAL 00000000-00039055
  • 3
    26-91653M SEAL
    SERIAL 00020251-09999999
    SEAL
    SERIAL 00020251-09999999
  • 3
    26-83256M SEAL
    SERIAL 00000000-00020250
    SEAL
    SERIAL 00000000-00020250
  • 4
    37-95401M DECAL, FRONT
    SERIAL 00039056-09999999
    DECAL, FRONT
    SERIAL 00039056-09999999
  • 4
    37-83275M DECAL, FRONT
    SERIAL 00000000-00039055
    DECAL, FRONT
    SERIAL 00000000-00039055
  • 5
    37-83276M DECAL, REAR
    DECAL, REAR
  • 6
    83271M SEAL
    SEAL
  • 7
    94655M HOLDER, CLAMP BAND
    SERIAL 00020251-09999999
    HOLDER, CLAMP BAND
    SERIAL 00020251-09999999
  • 7
    83212M HOLDER, CLAMP BAND
    SERIAL 00000000-00020250
    HOLDER, CLAMP BAND
    SERIAL 00000000-00020250
  • 8
    94656M HOOK
    HOOK
  • 9
    17-814489M RIVET
    RIVET
  • 10
    37-81202M INDICATOR, SHIFT
    INDICATOR, SHIFT
  • 11
    83232M SOUND BLANKET
    SOUND BLANKET
  • 12
    84321M SOUND BLANKET
    SOUND BLANKET
  • 13
    2168-7188M COWLING, BOTTOM
    SERIAL 00012921-09999999
    COWLING, BOTTOM
    SERIAL 00012921-09999999
  • 13
    2168-6977M COWLING, BOTTOM
    SERIAL 00000000-00012920
    COWLING, BOTTOM
    SERIAL 00000000-00012920
  • 14
    95402M LEVER, CLAMP
    LEVER, CLAMP
  • 15
    54-84914M HOOK, CLAMP
    HOOK, CLAMP
  • 16
    10-91772M BOLT
    BOLT
  • 17
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 18
    12-81794M WASHER
    WASHER
  • 19
    23-81949M BUSHING
    BUSHING
  • 20
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 21
    25-83277M GROMMET
    GROMMET
  • 22
    80033M HOLDER, DRIVE PIN
    HOLDER, DRIVE PIN
  • 23
    87-91622M STOP SWITCH ASS'Y
    SERIAL 00020251-09999999
    STOP SWITCH ASS'Y
    SERIAL 00020251-09999999
  • 23
    87-91622M STOP SWITCH ASS'Y
    SERIAL 00000000-00020250
    STOP SWITCH ASS'Y
    SERIAL 00000000-00020250
  • 24
    25-84669M GROMMET (SEE NOTE)
    SERIAL 00000000-00012920
    GROMMET (SEE NOTE)
    SERIAL 00000000-00012920
  • 25
    91-803581 TOOL KIT
    TOOL KIT
  • 32
    10-813484M SCREW
    SERIAL 00039056-09999999
    SCREW
    SERIAL 00039056-09999999
