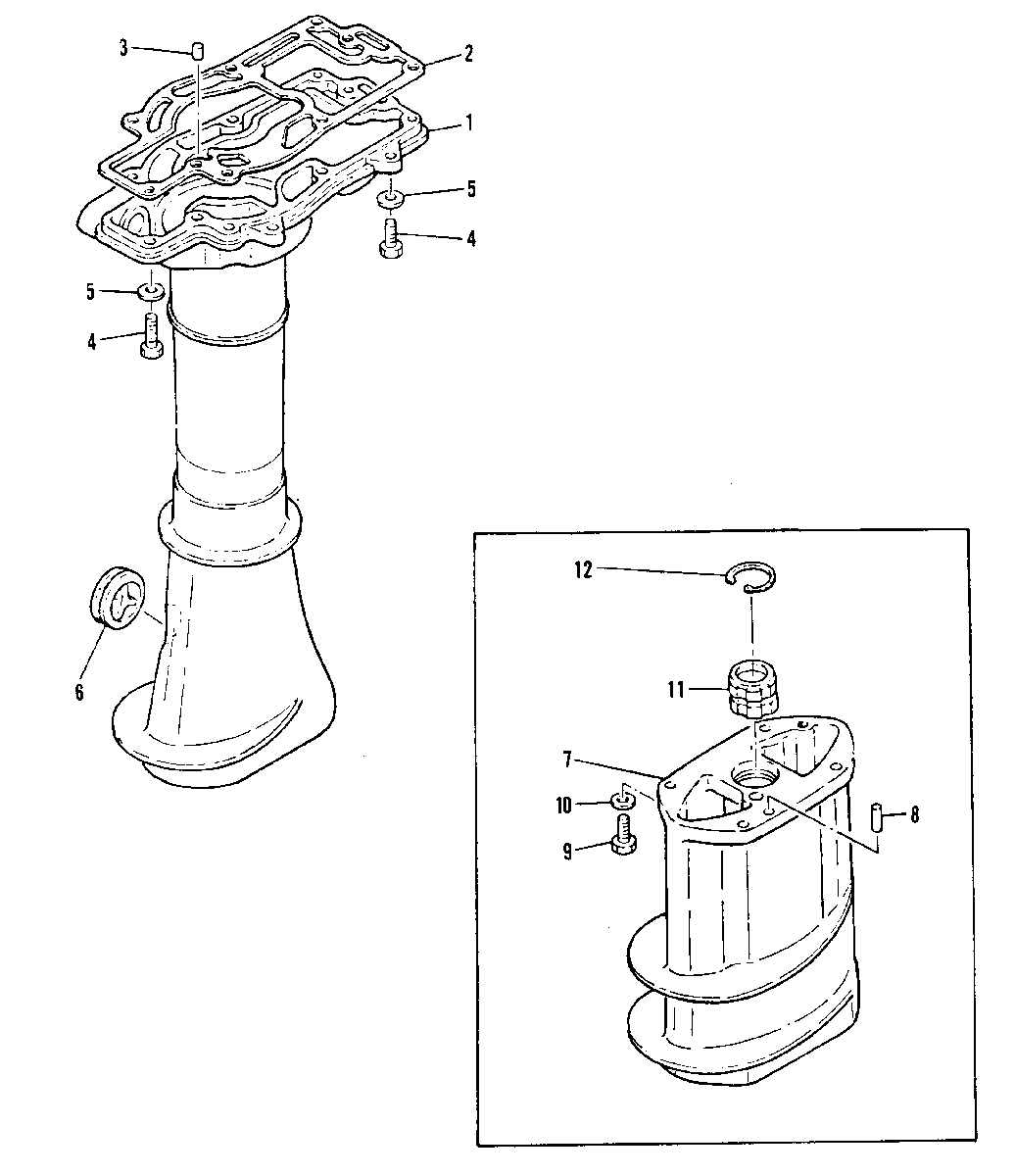

DRIVESHAFT HOUSING для Mariner - 8B 677-000101 AND UP

  • №
    Артикул
    Название
  • 1
    1587-9271M DRIVESHAFT HOUSING
    DRIVESHAFT HOUSING
  • 2
    27-83280 GASKET
    GASKET
  • 3
    17-82359M PIN, DOWEL
    PIN, DOWEL
  • 4
    10-82405M BOLT
    BOLT
  • 5
    12-82214M WASHER
    WASHER
  • 6
    80533M COVER
    COVER
  • 7
    83194M EXTENSION (LONG 140MM)
    EXTENSION (LONG 140MM)
  • 7
    82309M EXTENSION (ULTRA LONG 190MM)
    EXTENSION (ULTRA LONG 190MM)
  • 7
    82505M EXTENSION (SUPER ULTRA LONG 267MM)
    EXTENSION (SUPER ULTRA LONG 267MM)
  • 8
    17-82354M PIN, DOWEL (LONG, ULTRA LONG, SUPER ULTRA LONG)
    PIN, DOWEL (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 9
    10-84058M BOLT (LONG, ULTRA LONG, SUPER ULTRA LONG)
    BOLT (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 10
    12-82214M WASHER (LONG, ULTRA LONG, SUPER ULTRA LONG)
    WASHER (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 11
    23-82574M BUSHING (ULTRA LONG, SUPER ULTRA LONG)
    BUSHING (ULTRA LONG, SUPER ULTRA LONG)
  • 12
    53-82863M SNAP RING (ULTRA LONG, SUPER ULTRA LONG)
    SNAP RING (ULTRA LONG, SUPER ULTRA LONG)
  • 12
    84223M EXTENSION KIT, LONG SHAFT
    OPTIONAL PARTS
    EXTENSION KIT, LONG SHAFT
    OPTIONAL PARTS
  • 12
    84229M EXTENSION KIT, ULTRA LONG SHAFT
    OPTIONAL PARTS
    EXTENSION KIT, ULTRA LONG SHAFT
    OPTIONAL PARTS
  • 12
    84230M EXTENSION KIT, SUPER ULTRA LONG SHAFT
    OPTIONAL PARTS
    EXTENSION KIT, SUPER ULTRA LONG SHAFT
    OPTIONAL PARTS
