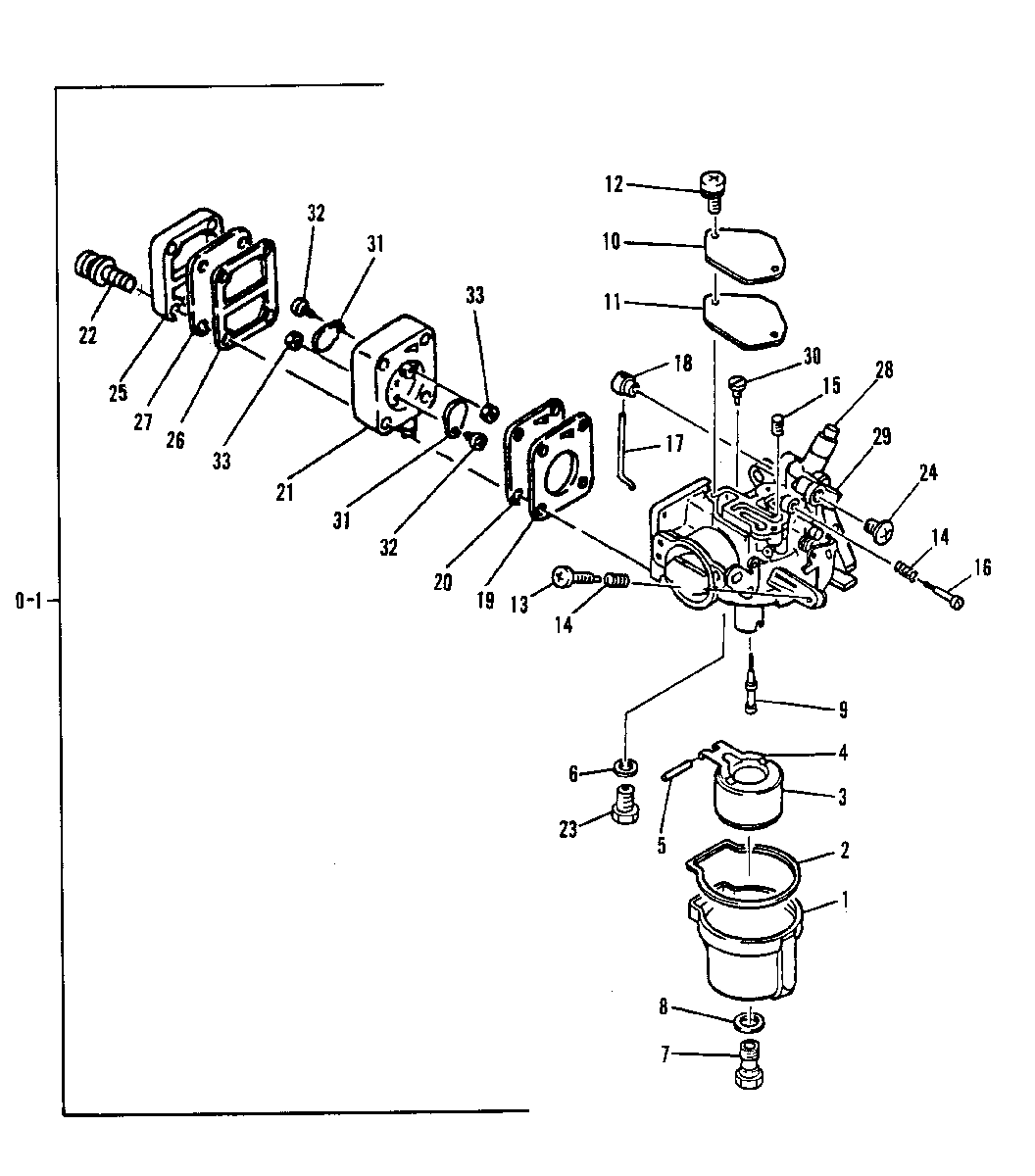

CARBURETOR для Mariner - 8B 677-000101 AND UP
-
№АртикулНазвание
-
0-11383-9523M CARBURETOR ASS'YCARBURETOR ASS'Y
-
184252M BODY, FLOAT CHAMBERBODY, FLOAT CHAMBER
-
227-43115M GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
380450M FLOATFLOAT
-
480202M ARMARM
-
517-80451M PIN, FLOATPIN, FLOAT
-
612-80261M WASHER, VALVE SEATWASHER, VALVE SEAT
-
710-84670M JET, MAIN (#78)JET, MAIN (#78)
-
827-80267 GASKETGASKET
-
994664M NOZZLE, MAIN (#66)
SERIAL 00019831-09999999NOZZLE, MAIN (#66)
SERIAL 00019831-09999999 -
983288M NOZZLE, MAIN (#98)
SERIAL 00012921-00019830NOZZLE, MAIN (#98)
SERIAL 00012921-00019830 -
1084258M PLATEPLATE
-
1127-84259M GASKETGASKET
-
1210-83509M SCREWSCREW
-
1310-83509M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1424-814460M SPRINGSPRING
-
1594665M JET, PILOT (#42)
SERIAL 00019831-09999999JET, PILOT (#42)
SERIAL 00019831-09999999 -
1582600M JET, PILOT (#46)
SERIAL 00012921-00019830JET, PILOT (#46)
SERIAL 00012921-00019830 -
1610-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1783299M RODROD
-
1883300M THROTTLE, LEVER ENDTHROTTLE, LEVER END
-
1927-815009 GASKET, PUMPGASKET, PUMP
-
2084262M DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
2199966M COVER, PUMP
SERIAL 00039056-09999999COVER, PUMP
SERIAL 00039056-09999999 -
2194666M COVER, PUMP
SERIAL 00019831-00039055COVER, PUMP
SERIAL 00019831-00039055 -
2183296M COVER, PUMP
SERIAL 00012921-00019830COVER, PUMP
SERIAL 00012921-00019830 -
2210-82661M SCREWSCREW
-
2380447M VALVE SEAT ASS'YVALVE SEAT ASS'Y
-
2410-80091M SCREWSCREW
-
2584266M COVER, PUMPCOVER, PUMP
-
2627-84264 GASKET, COVERGASKET, COVER
-
2784265M DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
2823-80227M COLLAR, GUIDE PINCOLLAR, GUIDE PIN
-
2981148M THROTTLE ARM ASS'YTHROTTLE ARM ASS'Y
-
3010-80434M SCREWSCREW
-
3121-41888M CHECK VALVE
SERIAL 00039056-09999999CHECK VALVE
SERIAL 00039056-09999999 -
3121-84650M CHECK VALVE
SERIAL 00000000-00039055CHECK VALVE
SERIAL 00000000-00039055 -
3311-82537M NUT
SERIAL 00039056-09999999NUT
SERIAL 00039056-09999999 -
3384473T REPAIR KIT, CARBURETOR
REPLACEMENT PARTSREPAIR KIT, CARBURETOR
REPLACEMENT PARTS
