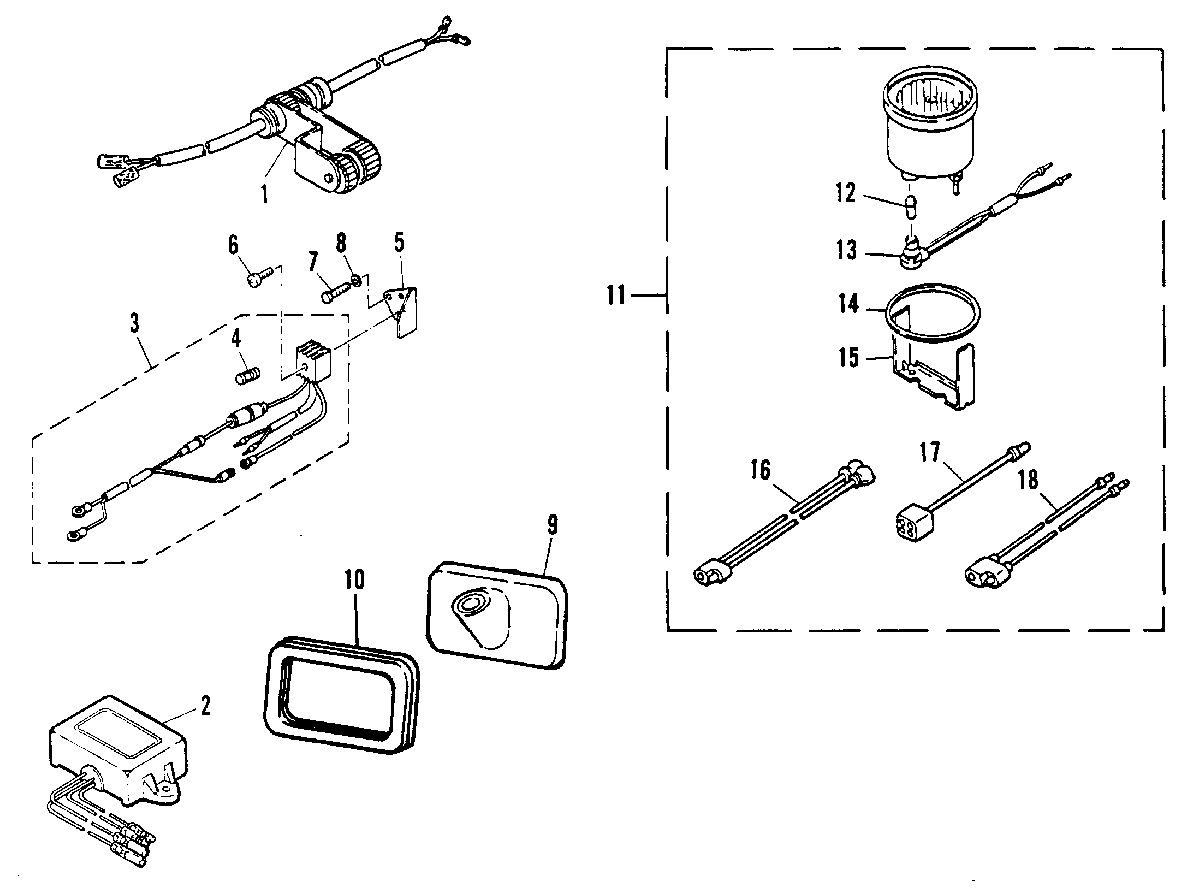

OPTIONAL PARTS для Mariner - 8B 677-000101 AND UP

  • №
    Артикул
    Название
  • 1
    84-84124M CONNECTOR ASS'Y (USED WITH REMOTE KILL SWITCH)
    CONNECTOR ASS'Y (USED WITH REMOTE KILL SWITCH)
  • 2
    84125T VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 3
    83-8M0060278 RECTIFIER ASS'Y - ENGINE MOUNT
    RECTIFIER ASS'Y - ENGINE MOUNT
  • 4
    88-81522M FUSE (12V-20A)
    FUSE (12V-20A)
  • 5
    84680M PLATE, RECTIFIER MOUNTING
    PLATE, RECTIFIER MOUNTING
  • 6
    10-83108M SCREW
    SCREW
  • 7
    10-84088M BOLT
    BOLT
  • 8
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 9
    97130M STARTER ROPE GUIDE - VERTICAL PULL
    SERIAL 00030636-09999999
    STARTER ROPE GUIDE - VERTICAL PULL
    SERIAL 00030636-09999999
  • 9
    84126M STARTER ROPE GUIDE - VERTICAL PULL
    SERIAL 00000000-00030635
    STARTER ROPE GUIDE - VERTICAL PULL
    SERIAL 00000000-00030635
  • 10
    26-83256M SEAL, STARTER ROPE GUIDE - VERTICAL PULL
    SERIAL 00030636-09999999
    SEAL, STARTER ROPE GUIDE - VERTICAL PULL
    SERIAL 00030636-09999999
  • 11
    79-43984A1 TACHOMETER KIT
    TACHOMETER KIT
  • 12
    88-99055M BULB
    BULB
  • 13
    99056A1 SOCKET, BULB
    SOCKET, BULB
  • 14
    99057M DAMPER
    DAMPER
  • 15
    99058M PLATE
    PLATE
  • 16
    84-99059M WIRE
    WIRE
  • 17
    84-84353M CONNECTOR
    CONNECTOR
  • 18
    84-84352M EXTENSION, LEAD
    EXTENSION, LEAD
