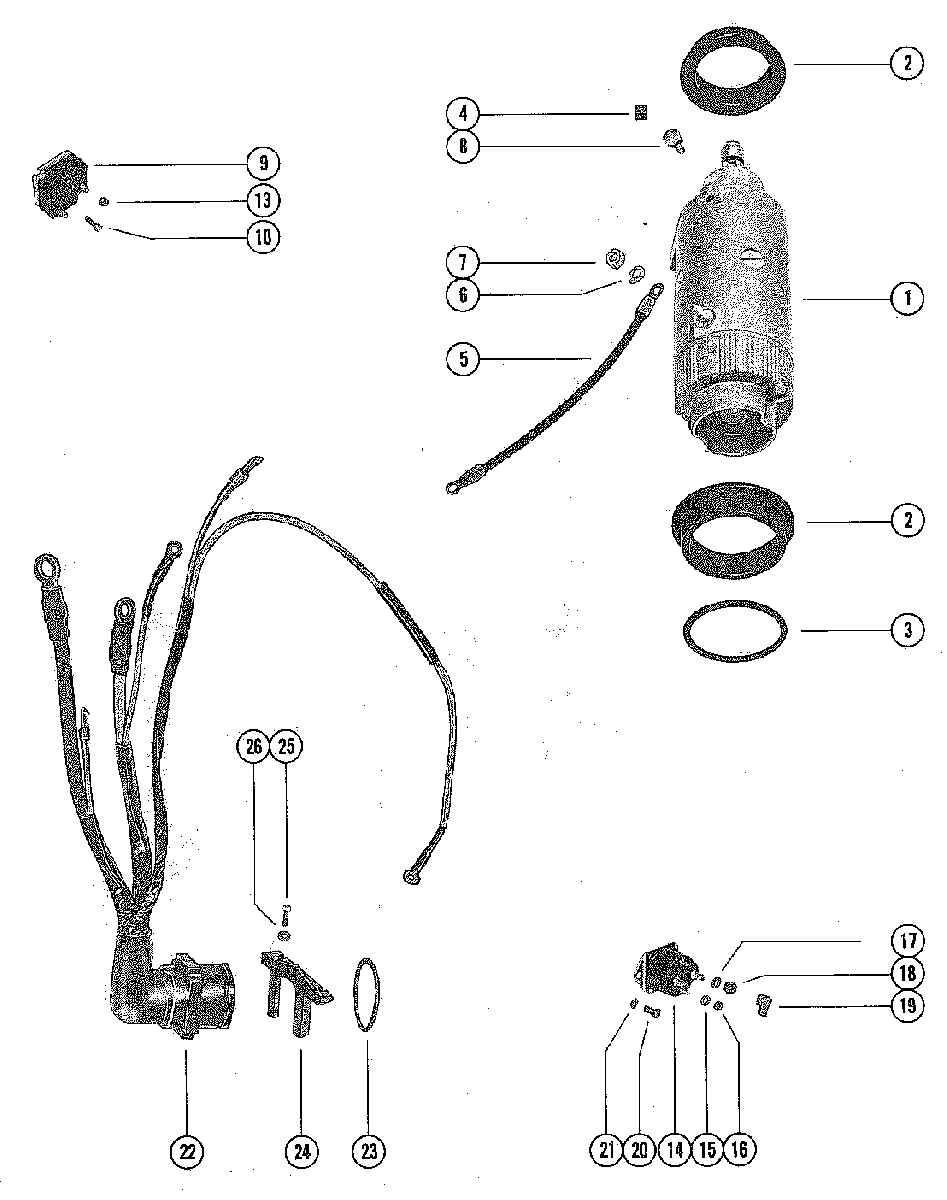

STARTER MOTOR AND WIRING HARNESS для Mariner - 85 4731898 THRU 4842728
-
№АртикулНазвание
-
150-893891T STARTER MOTORSTARTER MOTOR
-
223-8M0034918 COLLAR, RUBBER - STARTER MOTORCOLLAR, RUBBER - STARTER MOTOR
-
323-56774 SPACER, COLLAR TO BRACKETSPACER, COLLAR TO BRACKET
-
48M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
584-93389A1 WIRE ASS'Y, STARTER MOTOR/STARTER SOLENOID (YELLOW)WIRE ASS'Y, STARTER MOTOR/STARTER SOLENOID (YELLOW)
-
613-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
711-64015 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
810-69035 SCREW, WIRING HARNESS TO STARTER MOTOR (5/8")SCREW, WIRING HARNESS TO STARTER MOTOR (5/8")
-
98M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1010-37656 SCREW, RECTIFIER TO PLATE (5/8")SCREW, RECTIFIER TO PLATE (5/8")
-
1311-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
1489-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
1513-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
1611-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
1713-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
1811-68292 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
1946265 BOOT, TERMINAL - STARTER SOLENOIDBOOT, TERMINAL - STARTER SOLENOID
-
2010-38601 SCRWE, SOLENOID TO BOTTOM COWL (5/8")SCRWE, SOLENOID TO BOTTOM COWL (5/8")
-
2113-26992 WASHER, SOLENOID SCREWWASHER, SOLENOID SCREW
-
2284-73369A1 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2324-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
2454-76368 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2510-690201 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
2612-30164 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
