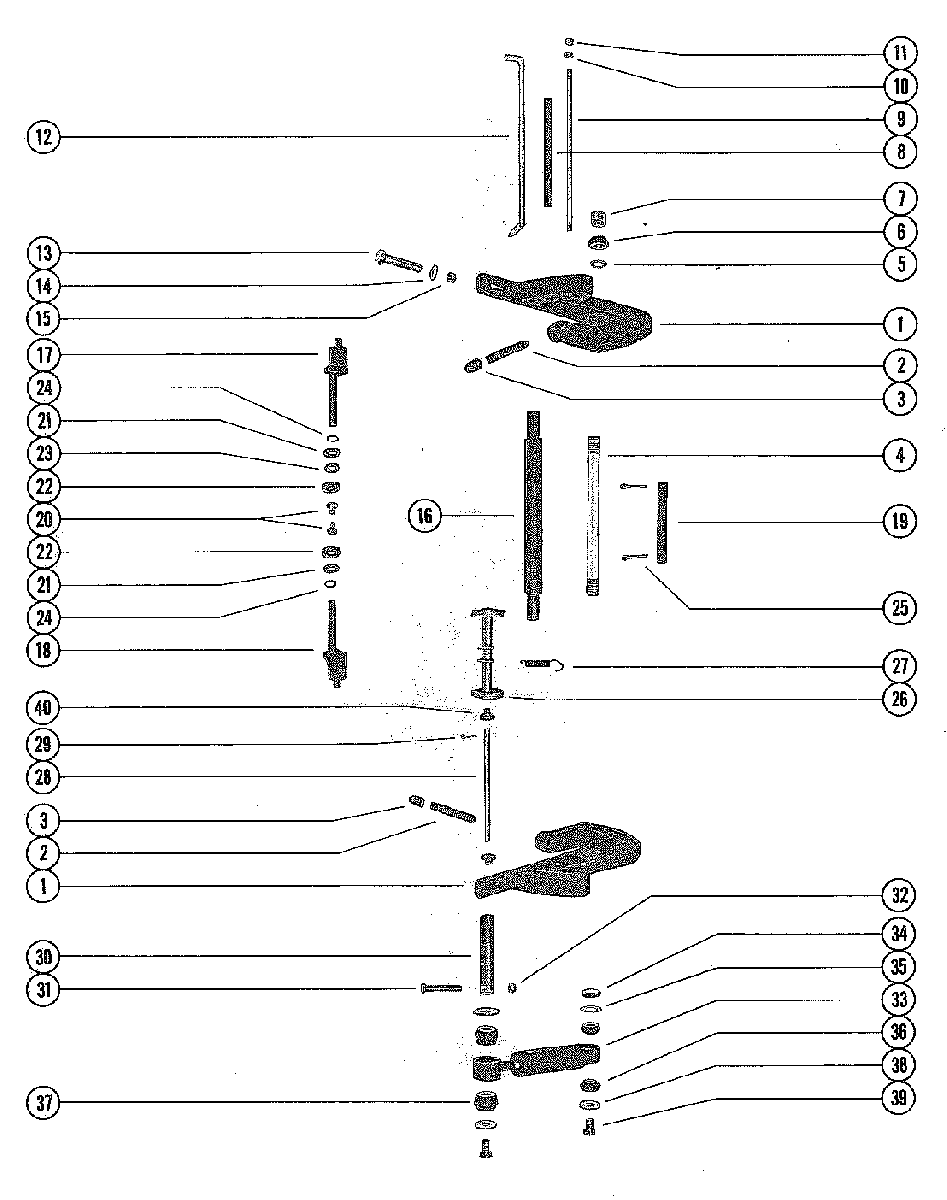

CLAMP BRACKET AND REVERSE LOCK для Mariner - 85 4731898 THRU 4842728

№

Артикул

Название
1

1440-8394A1 CLAMP BRACKET ASSEMLBY

CLAMP BRACKET ASSEMLBY

0 ₽
2

10-78492A1 THUMB SCREW ASSEMBLY

THUMB SCREW ASSEMBLY

0 ₽
3

75043 COVER, THUMB SCREW

COVER, THUMB SCREW

0 ₽
4

8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET

TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET

2 820 ₽
5

12-52864 WASHER, CLAMP BRACKET TILT TUBE

WASHER, CLAMP BRACKET TILT TUBE

0 ₽
6

11-858869 NUT, TILT TUBE FASTENING

NUT, TILT TUBE FASTENING

330 ₽
7

53078 CAP, PLASTIC - TILT TUBE

CAP, PLASTIC - TILT TUBE

0 ₽
8

23-59624 SPACER, CLAMP BRACKET STUD

SPACER, CLAMP BRACKET STUD

0 ₽
9

16-59625 STUD, CLAMP BRACKET

STUD, CLAMP BRACKET

0 ₽
10

13-26993 LOCKWASHER, CLAMP BRACKET STUD

LOCKWASHER, CLAMP BRACKET STUD

140 ₽
11

11-28770 NUT, CLAMP BRACKET STUD

NUT, CLAMP BRACKET STUD

110 ₽
12

17-8M0026068 TILT LOCK PIN ASSEMBLY

TILT LOCK PIN ASSEMBLY

4 970 ₽
13

10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")

BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")

0 ₽
14

12-46765 WASHER, CLAMP BRACKET BOLT

WASHER, CLAMP BRACKET BOLT

570 ₽
13

10-68299 BOLT, CLAMP BRACKET TO TRANSOM (3")

BOLT, CLAMP BRACKET TO TRANSOM (3")

500 ₽
14

12-68300 WASHER, CLAMP BRACKET BOLT

WASHER, CLAMP BRACKET BOLT

0 ₽
15

11-82670912 NUT, CLAMP BRACKET BOLT

NUT, CLAMP BRACKET BOLT

410 ₽
16

55-28416 PIN, UPPER SHOCK MOUNTING

PIN, UPPER SHOCK MOUNTING

6 970 ₽
19

47802 TUBE, TILT LOCK - SHORT SHAFT

TUBE, TILT LOCK - SHORT SHAFT

0 ₽
20

23-47803 BUSHING, TILT LOCK TUBE - SHORT SHAFT

BUSHING, TILT LOCK TUBE - SHORT SHAFT

0 ₽
21

13-69150 WASHER, WAVE - TILT LOCK TUBE - SHORT SHAFT

WASHER, WAVE - TILT LOCK TUBE - SHORT SHAFT

270 ₽
17

76386 TILT LOCK ASSEMBLY, STARBOARD

TILT LOCK ASSEMBLY, STARBOARD

0 ₽
18

76385T TILT LOCK ASSEMBLY, PORT

TILT LOCK ASSEMBLY, PORT

3 480 ₽
19

79659 TUBE, TILT LOCK - LONG SHAFT

TUBE, TILT LOCK - LONG SHAFT

0 ₽
21

13-69150 WASHER, WAVE - TILT LOCK (STARBOARD SIDE ONLY) - LONG SHAFT

WASHER, WAVE - TILT LOCK (STARBOARD SIDE ONLY) - LONG SHAFT

270 ₽
22

26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK) - LONG SHAFT

OIL SEAL, SWIVEL BRACKET (TILT LOCK) - LONG SHAFT

0 ₽
23

12-76388 WASHER, TILT LOCK (STARBOARD SIDE ONLY) - LONG SHAFT

WASHER, TILT LOCK (STARBOARD SIDE ONLY) - LONG SHAFT

0 ₽
24

25-627021 "O" RING, TILT LOCK - LONG SHAFT

"O" RING, TILT LOCK - LONG SHAFT

120 ₽
25

18-47959 COTTER PIN, TILT LOCK

COTTER PIN, TILT LOCK

280 ₽
26

87431 REVERSE LOCK ASSEMBLY

REVERSE LOCK ASSEMBLY

0 ₽
27

24-29821 SPRING, REVERSE LOCK TENSION

SPRING, REVERSE LOCK TENSION

0 ₽
28

56349 SHAFT, REVERSE LOCK PIVOT

SHAFT, REVERSE LOCK PIVOT

0 ₽
29

18-45882 COTTER PIN, REVERSE LOCK TO SHAFT

COTTER PIN, REVERSE LOCK TO SHAFT

280 ₽
30

55-696531 PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)

PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)

0 ₽
30

55-28414 PIN, LOWER SHOCK MOUNTING - LONG SHAFT

PIN, LOWER SHOCK MOUNTING - LONG SHAFT

0 ₽
31

53-21837 SCREW, LOWER SHOCK PIN (2") - LONG SHAFT

SCREW, LOWER SHOCK PIN (2") - LONG SHAFT

0 ₽
32

11-20184 NUT, LOWER SHOCK PIN SCREW - LONG SHAFT

NUT, LOWER SHOCK PIN SCREW - LONG SHAFT

120 ₽
33

55-58780A7 SHOCK ABSORBER

SHOCK ABSORBER

32 410 ₽
34

23-73203 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET

SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET

0 ₽
35

12-28196 WASHER, UPPER BUSHING RETAINER (INNER)

WASHER, UPPER BUSHING RETAINER (INNER)

0 ₽
36

23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)

BUSHING, RUBBER - SHOCK ABSORBER (UPPER)

0 ₽
37

23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)

BUSHING, RUBBER - SHOCK ABSORBER (LOWER)

0 ₽
38

12-69374 WASHER, UPPER/LOWER SHOCK MOUNTING PIN (LOWER)

WASHER, UPPER/LOWER SHOCK MOUNTING PIN (LOWER)

0 ₽
39

10-69375 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN

SCREW, UPPER AND LOWER SHOCK MOUNTING PIN

0 ₽
40

23-69132 BUSHING, PIVOT SHAFT

BUSHING, PIVOT SHAFT

0 ₽
