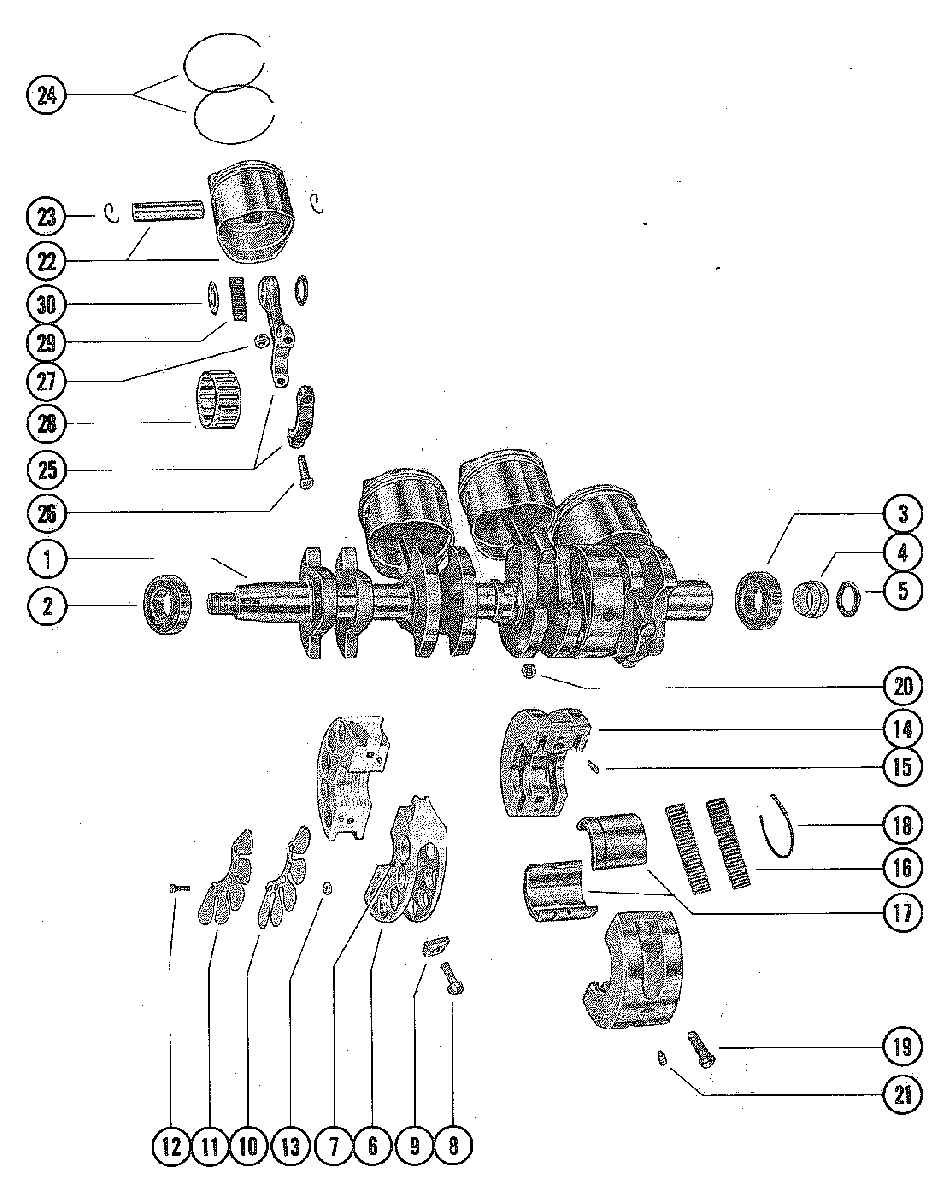

CRANKSHAFT, PISTON AND CONNECTING ROD для Mariner - 85 4731898 THRU 4842728
-
№АртикулНазвание
-
1440-9074A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
330-63742T BEARING, BALL - LOWERBEARING, BALL - LOWER
-
454196A6 CARRIER, ASSEMBLYCARRIER, ASSEMBLY
-
565800 PACKING, CARRIERPACKING, CARRIER
-
6540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
717-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
810-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
911-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1034-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1134-56008 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1210-62204 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1311-53153 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
14535-5397A4 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
1517-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
1629-714221 BEARING, NEEDLEBEARING, NEEDLE
-
1726113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1853-26933 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1910-22968 SCREW, CENTER MAIN BEARING CLAMPING SCREWSCREW, CENTER MAIN BEARING CLAMPING SCREW
-
2011-20184 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
2117-47246 DOWEL PIN,(STEPPED)DOWEL PIN,(STEPPED)
-
22774-9137A12 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2353-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2439-78816A12 RING, PISTONRING, PISTON
-
25624-8101A3 CONNECTING ROD AND COP ASSEMBLYCONNECTING ROD AND COP ASSEMBLY
-
2610-54803 SCREW, CAP TO CONNECTING RODSCREW, CAP TO CONNECTING ROD
-
2711-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2831-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2929-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3012-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
30774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.105)
OVERSIZE PISTON AND RINGPISTON AND PISTON PIN ASSEMBLY (.105)
OVERSIZE PISTON AND RING -
3039-78811A12 RING, PISTON (.015)
OVERSIZE PISTON AND RINGRING, PISTON (.015)
OVERSIZE PISTON AND RING
