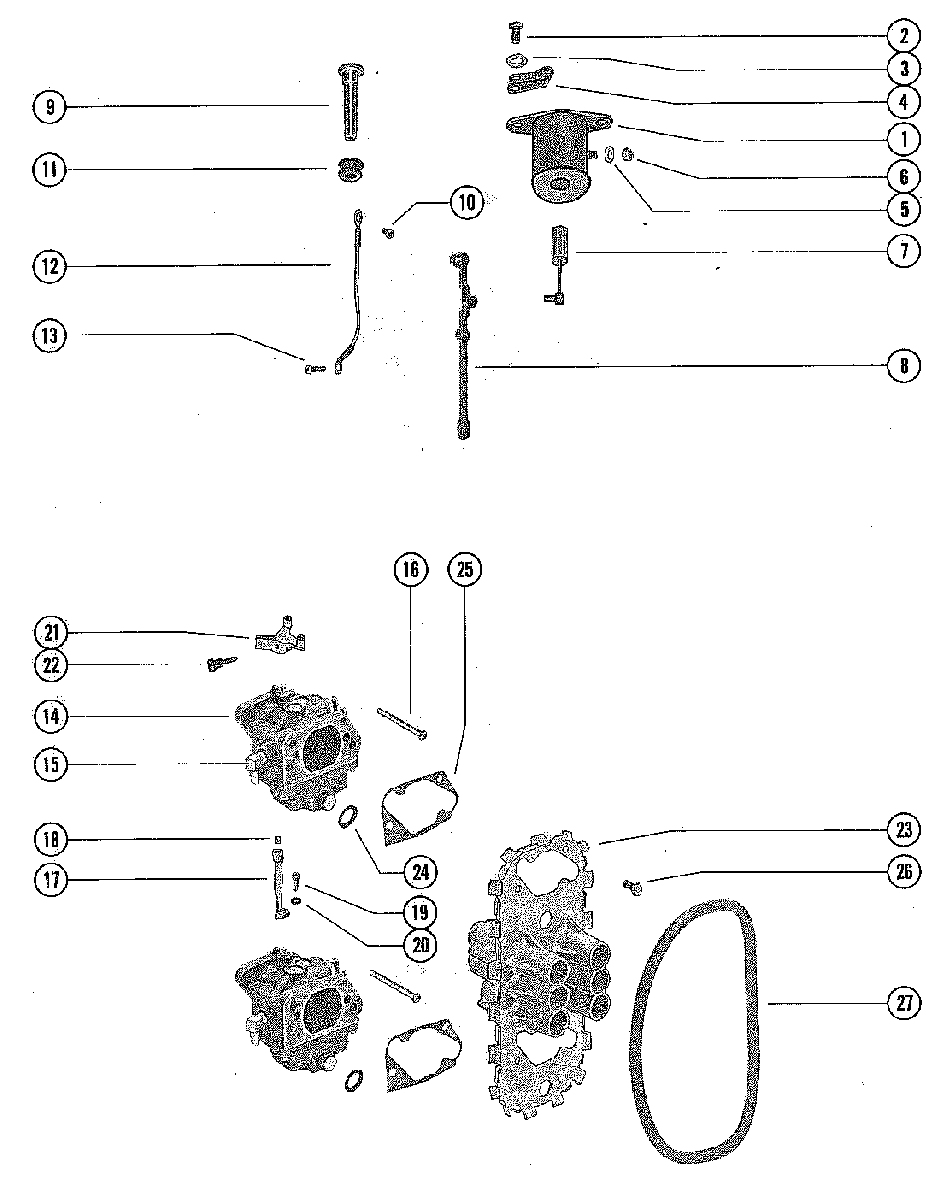

CARBURETOR LINKAGE для Mariner - 85 4731898 THRU 4842728
-
№АртикулНазвание
-
154293A10 CHOKE SOLENOID ASSEMBLYCHOKE SOLENOID ASSEMBLY
-
210-824941 SCREW, CHOKE SOLENOID TO FRONT BRACKET (3/4")SCREW, CHOKE SOLENOID TO FRONT BRACKET (3/4")
-
313-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
454-52905 CLAMP, HARNESS - CHOKE SOLENOID TERMINALCLAMP, HARNESS - CHOKE SOLENOID TERMINAL
-
513-26996 LOCKWASHER, CHOKE SOLENOID TERMINALLOCKWASHER, CHOKE SOLENOID TERMINAL
-
611-68219 NUT, CHOKE SOLENOID TERMINALNUT, CHOKE SOLENOID TERMINAL
-
789008A2 PLUNGER AND LINK ASSEMBLYPLUNGER AND LINK ASSEMBLY
-
873400 CHOKE RODCHOKE ROD
-
990242A1 CHOKE KNOB ASSEMBLYCHOKE KNOB ASSEMBLY
-
1010-77137 SCREW, WIRE TO CHOKE KNOBSCREW, WIRE TO CHOKE KNOB
-
1125-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
1284-74263 WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)
-
1310-62568 SCREW, WIRE TO CHOKE RODSCREW, WIRE TO CHOKE ROD
-
141379-6071A57 CARBIRETPR ASSEMBLY (UPPER)CARBIRETPR ASSEMBLY (UPPER)
-
141379-6071A58 CARBURETOR ASSEMBLY (LOWER)CARBURETOR ASSEMBLY (LOWER)
-
1522-19688 ELBOW, CARBURETORELBOW, CARBURETOR
-
1610-52743 SCREW, CARBURETOR TO CRANKCASE (3 3/4")SCREW, CARBURETOR TO CRANKCASE (3 3/4")
-
1753720A2 COUPLING ASSEMBLY (LOWER CARBURETOR)COUPLING ASSEMBLY (LOWER CARBURETOR)
-
1828-89694 INSERT, COUPLINGINSERT, COUPLING
-
1910-66104 SCREW, COUPLING TO CARBURETOR (3/4")SCREW, COUPLING TO CARBURETOR (3/4")
-
2012-74726 WASHER, COUPLING SCREWWASHER, COUPLING SCREW
-
2173847 ACTUATOR, THROTTLE (UPPER CARBURETOR)ACTUATOR, THROTTLE (UPPER CARBURETOR)
-
2210-60293 SCREW, ACTUATOR TO UPPER CARBURETOR (1/2")SCREW, ACTUATOR TO UPPER CARBURETOR (1/2")
-
2373408 PLATE, CARBURETORPLATE, CARBURETOR
-
2427-73398 GASKET, CARBURETOR PLATEGASKET, CARBURETOR PLATE
-
2527-76952 GASKET, CARBURETOR PLATE TO CARBURETORGASKET, CARBURETOR PLATE TO CARBURETOR
-
2610-28635 SCREW, PLATE TO CARBURETOR (5/8")SCREW, PLATE TO CARBURETOR (5/8")
-
2773647 SEAL, CARBURETOR PLATESEAL, CARBURETOR PLATE
