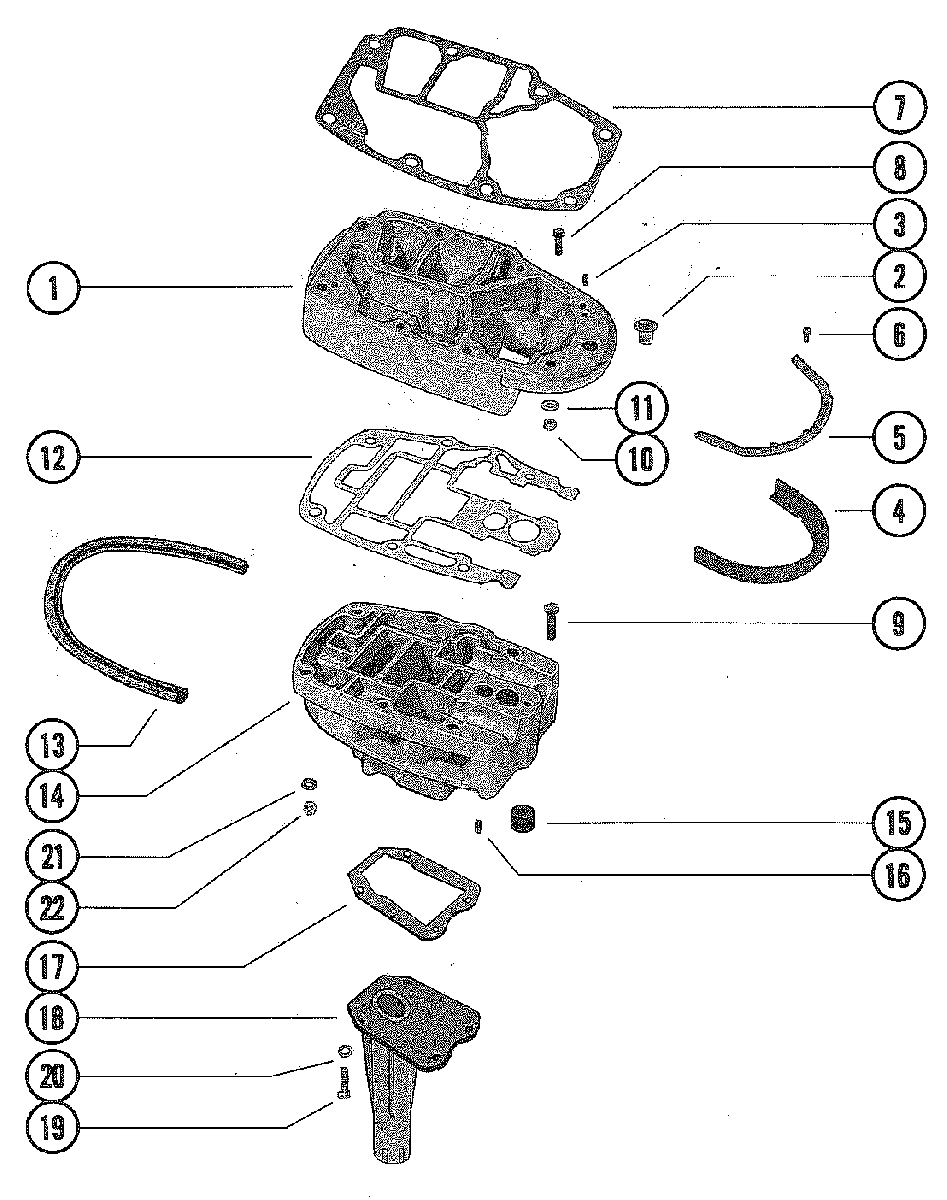

EXHAUST EXTENSION PLATE для Mariner - 85 4731898 THRU 4842728

  • №
    Артикул
    Название
  • 1
    43289A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 2
    23-27132 BUSHING, NYLON - EXHAUST EXTENSION PLATE
    BUSHING, NYLON - EXHAUST EXTENSION PLATE
  • 3
    17-23784 DOWEL PIN, EXHAUST EXTENSION PLATE
    DOWEL PIN, EXHAUST EXTENSION PLATE
  • 4
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 5
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE
    STRIP, RETAINING - EXHAUST EXTENSION PLATE
  • 6
    10-37571 SCREW, SEAL AND RETAINING STRIP TO EXH. PLATE (1/2")
    SCREW, SEAL AND RETAINING STRIP TO EXH. PLATE (1/2")
  • 7
    27-692381 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
  • 8
    10-66023 SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
    SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
  • 9
    10-66023 SCRWE, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
    SCRWE, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
  • 10
    11-69254 NUT, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
    NUT, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
  • 11
    12-20553 WASHER, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
    WASHER, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
  • 12
    27-661021 GASKET, PLATE TO DRIVE SHAFT HSG PLATE
    GASKET, PLATE TO DRIVE SHAFT HSG PLATE
  • 13
    26-60898 SEAL, DRIVE SHAFT HOUSING PLATE
    SEAL, DRIVE SHAFT HOUSING PLATE
  • 14
    43290A4 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
    PLATE ASSEMBLY, DRIVE SHAFT HOUSING
  • 15
    26-38970 SEAL, RUBBER - WATER INLET TUBE (DRIVE SHAFT HSG PLATE)
    SEAL, RUBBER - WATER INLET TUBE (DRIVE SHAFT HSG PLATE)
  • 16
    17-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATE
    DOWEL PIN, DRIVE SHAFT HOUSING PLATE
  • 17
    27-69860 GASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBE
    GASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBE
  • 18
    99698 EXHAUST TUBE
    EXHAUST TUBE
  • 19
    10-65414 SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")
    SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")
  • 20
    13-26992 LOCKWASHER, EXHAUST TUBE SCREW
    LOCKWASHER, EXHAUST TUBE SCREW
  • 21
    12-20553 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 22
    11-82671013 NUTE, POWERHEAD STUDS
    NUTE, POWERHEAD STUDS
