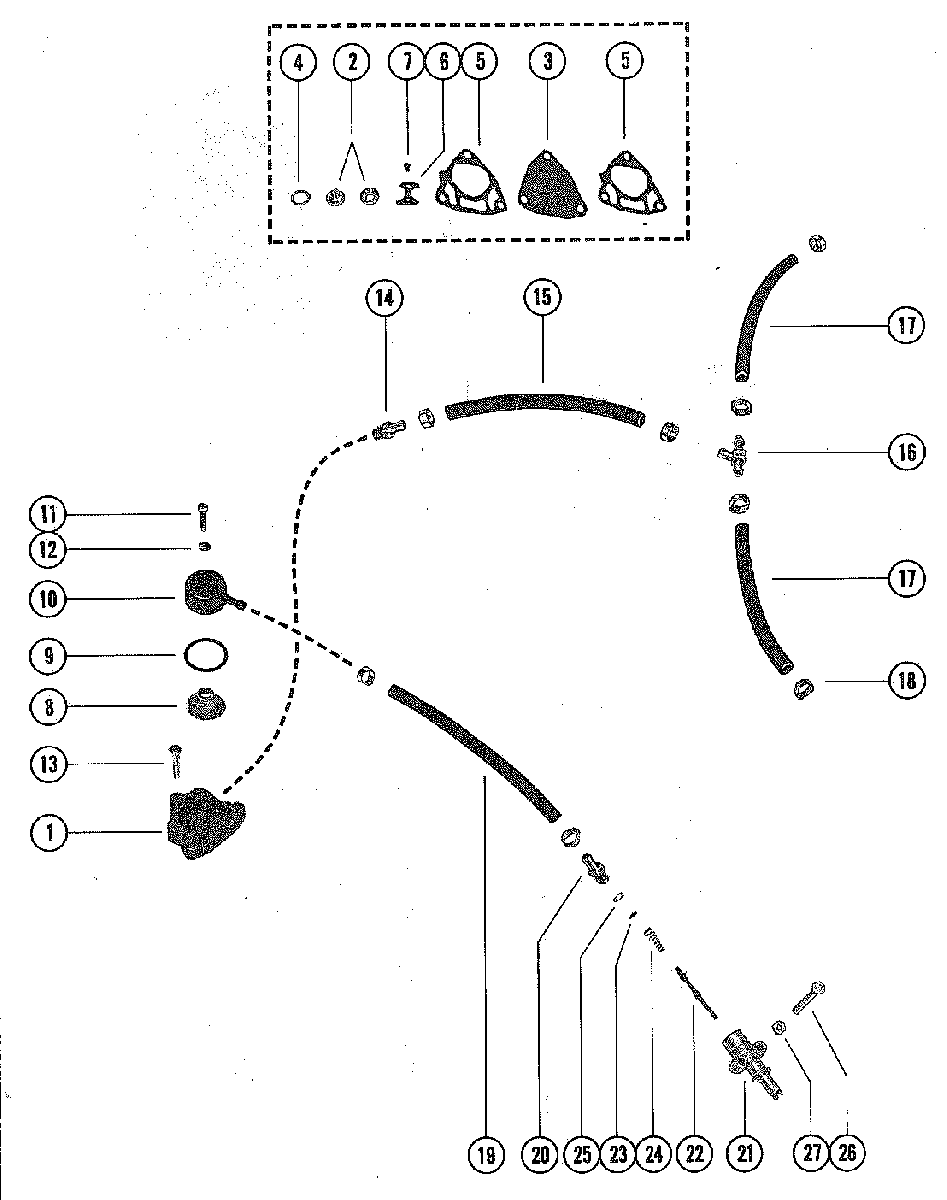

FUEL PUMP AND FUEL LINES для Mariner - 85 4731898 THRU 4842728

  • №
    Артикул
    Название
  • 1
    73434A5 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-8M0084276 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    55278A5 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    90-8M0143356 GASKET, CHECK VALVE
    GASKET, CHECK VALVE
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, CHECK VALVE TO FUEL PUMP (1/4")
    SCREW, CHECK VALVE TO FUEL PUMP (1/4")
  • 8
    35-73532 FUEL FILTER
    FUEL FILTER
  • 9
    25-35480 "O"RING, COVER TO FUEL PUMP
    "O"RING, COVER TO FUEL PUMP
  • 10
    35-14805A2 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 11
    10-37370 SCREW, COVER TO FUEL PUMP (5/8")
    SCREW, COVER TO FUEL PUMP (5/8")
  • 12
    27-25848 GASKET, COVER SCREW
    GASKET, COVER SCREW
  • 13
    10-70939 SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1 7/8")
    SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1 7/8")
  • 13
    10-69067 SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1 3/8")
    SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1 3/8")
  • 14
    22-64705 FITTING, FUEL PUMP (OUTLET)
    FITTING, FUEL PUMP (OUTLET)
  • 15
    32-8M0108355 FUEL LINE, TEE TO FUEL PUMP (11")
    FUEL LINE, TEE TO FUEL PUMP (11")
  • 16
    22-73318 TEE, FUEL LINE
    TEE, FUEL LINE
  • 17
    32-8M0108355 FUEL LINE, CARBURETEOR TO TEE TO CARBURETOR (3")
    FUEL LINE, CARBURETEOR TO TEE TO CARBURETOR (3")
  • 18
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 19
    32-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (15")
    FUEL LINE, ADAPTOR TO FUEL PUMP (15")
  • 20
    22-63187 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 21
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 22
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 23
    25-16524 "O"RING, ADAPTOR STEM
    "O"RING, ADAPTOR STEM
  • 24
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 25
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 26
    10-69029 SCRWE, ADAPTOR TO BOTTOM COWL (1 3/4")
    SCRWE, ADAPTOR TO BOTTOM COWL (1 3/4")
  • 27
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
